Access Floor Systems With Bonded Stone Finishes

Name: Access Floor Systems With Bonded Stone Finishes
Brand: sHybrTB9b3JtJGQtaTc5yb
SKU: 9HvuPmsFZrQwwjj8PbpVgD

Kingspan Access Floors Ltd

Access floor system with a bonded stone finish.

Jump to:

+44 (0)1482 781701 www.kingspanaccessfloors.co.uk

Description

Access floor system with a bonded stone finish – ultimate load: >12 kN.

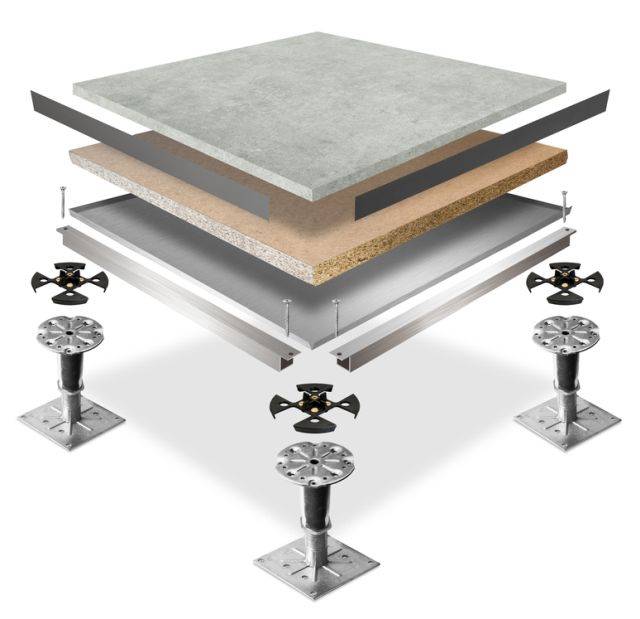

The panel comprises of a high density particleboard core with a bonded porcelain tile and galvanized steel tray base. The panel is finished with an acrylonitrile butadiene styrene (ABS) edge band.

Features and benefits:

Raised access floor to BS EN 12825.

Finished floor heights from 73–1200 mm are available using standard pedestals. For heights outside of this range, alternative pedestals are available. Consult manufacturer for details.

Available with two or more surface coverings to create a multi-piece panel or surface transition.

General information

Uniclass 2015	Ss_30_20_70_70 Raised access floor systemsPrimary
CAWS	K41/130 Raised access floor

Specification data - Raised access floor systems

Product Reference	Access Floor Systems With Bonded Stone Finish – HEB6_P
Surface finish	Consult manufacturer for details and insert requirements.
Pedestals	-
Type	Alpha III For voids ≥610 mm. Alpha V For voids between 25–610 mm.
Material	Nickel plated Optional. Steel Standard.
Adhesive	Acoustic pedestal adhesive Manufacturer's standard
Accessories	None Pivot-head adaptors
Stringers	1.5 mm screw down stringer system
Underfloor plenum	Not required Required

Standard product features

Technical characteristics:

Thickness: 48 mm.

System weight: 61.5 kg/m².

Panel size: 600 x 600 mm.

Core material: 38 mm high density particle board.

Category: Loose lay.

Fire reaction (to EN 13501-1): Bfl-s1.

Fire resistance (to EN 13502-2): REI 60.

Impact sound insulation (Lnfw): 50 dB.

Product Options

Pedestals:

Steel pedestals are coated with an environmentally friendly clear passivation as standard.

Stingers:

Stringers are required along the edge of full and cut panels at all perimeters and transitions. Where stringers are unable to be installed, use additional pedestals 300 mm on centre along the entire perimeter.

Underfloor plenum:

The system can be supplied with neoprene gaskets to minimize air loss through the raised floor surface from the underfloor plenum to aid air circulation, distribution and management.
