Access Floor Systems With Bonded Resilient Finishes
Application

Suitable for data centres and server rooms.

Description

Access floor systems with bonded resilient finishes.

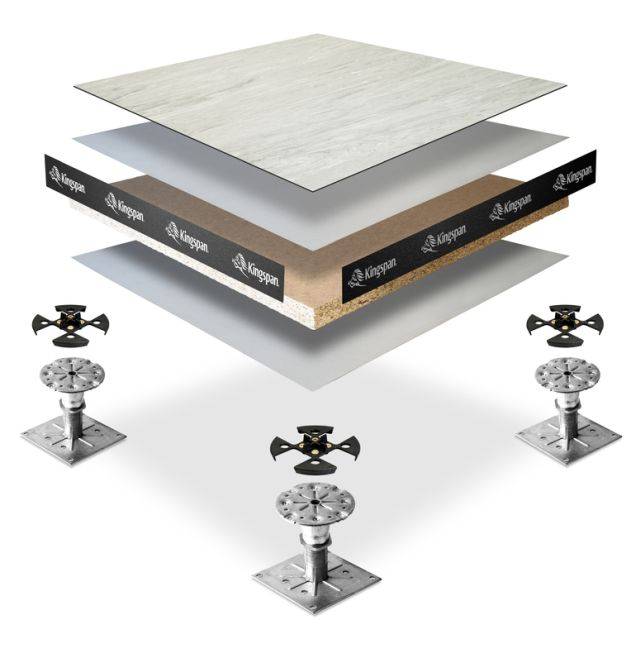

The panel comprises of a galvanized steel top and bottom sheet that is bonded to the core. A resilient covering is applied to the top and the panel is finished with an acrylonitrile butadiene styrene (ABS) edge band.

The system is manufactured in an advanced energy-efficient manufacturing facility where 94% of the energy used is supplied from sustainable sources.

Features and benefits:

  • Tested in accordance with PSA MOB PF2 PS/SPU for raised access floors.
  • All working loads perform to a three times safety factor. Performs to a safety factor of two for 11 kN load (FDEB_XH).
  • Fire classification to BS 476-6 and BS 476-7.
  • FSC® certified.
  • 25-year total system warranty.

Warranty only valid when a full Kingspan Access Floor system including panels and under structure is installed.

Applications:

Suitable for data centres and server rooms.

General information

Uniclass 2015

Ss_30_20_70_70 Raised access floor systemsPrimary

CAWS

K41/130 Raised access floor

Specification data - Raised access floor systems

Product Reference

Access Floor Systems With Bonded Resilient Finishes

Type

FDEB_M

Uniformly Distributed Load (UDL): 8 kN/m².

FDEB_H

Uniformly Distributed Load (UDL): 12 kN/m².

FDEB_XH

Uniformly Distributed Load (UDL): 12 kN/m².

Surface finish

High pressure laminate (HPL)

Linoleum

Marmoleum

Rubber

Vinyl

Panel size

600 x 600 mm

Standard.

600 x 900 mm (medium grade)

Optional for perimeter detailing.

600 x 900 mm (heavy grade)

Optional for perimeter detailing.

Pedestals

-

Type

Alpha III

For voids ≥610 mm. For FDEB_XH: ≥120 mm.

Alpha V

For voids between 25/ 30–610 mm. Not for FDEB_XH.

Material

Nickel plated

Optional.

Steel

Standard.

Adhesive

Acoustic pedestal adhesive

Manufacturer's standard

Accessories

None

Pivot-head adaptors

Not for FDEB_XH.

Stringers

Clip-on stringer

For lateral stability in 600–800 mm void heights (FDEB_M).

Screw-down stringer

For lateral stability in >800 mm void heights (FDEB_M).

Heavy grade screw-down stringer

For FDEB_H.

Extra-heavy grade screw-down stringer

For FDEB_XH.

Underfloor plenum

Not required

Required

Standard product features

Technical characteristics:

- FDEB_M:

  • Thickness: 31 mm (without surface covering).
  • System weight: 42 kg/m².
  • Panel size: 600 x 600 mm.
  • Core material: 30 mm high density particle board.
  • Edge band: Acrylonitrile Butadiene Styrene (ABS).
  • Category: Loose lay.
  • Point load 25 x 25 mm: 3 kN.
  • Load over 25 x 25 mm: 4.5 kN.
  • Fire reaction (to BS EN 13501-1): Bfl-s1.
  • Fire resistance (to BS EN 13501-2): R30r/ RE30r/ RE130r.
  • Airborne sound insulation (Dnfw): 41 dB. (44 dB with barrier).
  • Impact sound insulation (Lnfw): 69 dB. (62 dB with barrier).

- FDEB_H:

  • Thickness: 40 mm (without surface covering).
  • System weight: 52 kg/m².
  • Panel size: 600 x 600 mm.
  • Core material: 38 mm high density particle board.
  • Edge band: Acrylonitrile Butadiene Styrene (ABS
  • Category: Loose lay.
  • Point load 25 x 25 mm: 4.5 kN.
  • Fire reaction (to BS EN 13501-1): Bfl-s1.
  • Fire resistance (to BS EN 13501-2): R30r/ RE30r/ RE130r.
  • Airborne sound insulation (Dnfw): 42 dB. (49 dB with barrier).
  • Impact sound insulation (Lnfw): 68 dB. (60 dB with barrier).

- FDEB_XH:

  • Thickness: 40 mm (without surface covering).
  • System weight: 52 kg/m².
  • Panel size: 600 x 600 mm.
  • Core material: 38 mm high density particle board.
  • Edge band: Acrylonitrile Butadiene Styrene (ABS).
  • Category: Loose lay.
  • Point load 25 x 25 mm: 4.5 kN.
  • Four-point load 25 x 25 mm: 11 kN.
  • Fire reaction (to BS EN 13501-1): Bfl-s1.
  • Fire resistance (to BS EN 13501-2): R30r/ RE30r/ RE130r.
  • Airborne sound insulation (Dnfw): 42 dB. (49 dB with barrier).
  • Impact sound insulation (Lnfw): 68 dB. (60 dB with barrier).

Product Options

Surface finish:

A wide variety of surface finishes can be bonded to the top surface of the panel including high pressure laminate (HPL), vinyl, rubber, linoleum and marmoleum. Consult manufacturer for details and insert requirements above.

Pedestals:

Steel pedestals are coated with an environmentally friendly clear passivation as standard.

Underfloor plenum:

The system can be supplied with neoprene gaskets to minimize air loss through the raised floor surface from the underfloor plenum to aid air circulation, distribution and management.

Literature
Third party certifications
  • FSC: C019806
