Absorb-R GypLine visible – Acoustic Finish 8 mm
CHAS
Certificate type
Constructionline Gold
Certificate type
smas WORKSAFE
Certificate type
Acclaim Accreditation
Certificate type

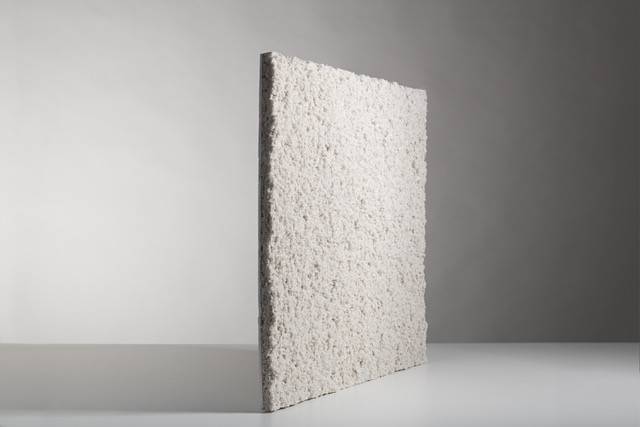

Coarse textured spray applied finish. Suitable for use in sports halls, stadia, auditoria, nightclubs, bars, factories and warehouses.
Acoustic plaster for use in sports halls, factories, restaurants and bars.
The carbon-neutral Absorb-R GypLine visible acoustic spray is a high-quality and environmentally friendly acoustic spray that absorbs unwanted noise and can be used in a wide range of environments.
The Absorb-R GypLine visible is a combination of recycled paper, wood adhesive, water and professional installation work. The tubular structure of the cellulosic fibres enables effective reverberation absorption.
Features and benefits:
Fire rating:
Emissions:
Environmental Standards:
Sound absorption:
For more details contact manufacturer
Color | White Grey Other Guidance for specification option: Other colours possible when used with the Absorb-R GypLine visible Plus product. |
Finish | Coarse |
Material | Plaster |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | 8 mm 15 mm 25 mm 35 mm |
Uniclass | |
CAWS | M22/120 Sprayed |
System performance | Airborne sound absorption of sprayed internal monolithic coating systems. |
Preparation | Guidance for specification option: In accordance with Soundis pre-start check list. Consult manufacturer and insert requirements. |
Initial coats | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Mechanical retention and reinforcement | |
Reinforcement | Not required.Reinforcement mesh.Guidance for specification option: Optional. Consult manufacturer and insert requirements. |
Fixing | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Coating | |
Binding agent | Water based adhesives. |
Insulant | Cellulose fibre.Guidance for specification option: R 0.03 per mm (W/m·K). |
Protective membrane | Sprayed monolithic coating finishing coats. |
Movement joints | |
Type | Sprayed monolithic coating movement joints. |
Accessories | None.Access hatch.Recessed light halos (flanged fitting only).Pattress.Stop bead. |
Reaction to fire | A2-s1, d0. |
Fire resistance | To BS 476: Part 6 and 7, Class O. |
Sound absorption | Class D. |
Noise reduction coefficient | 0.58. |
Surface finish | Coarse. |
Colour | White medium. Light grey. Dark grey. Other. Guidance for specification option: Other colours possible when used with the Absorb-R GypLine visible Plus product. Consult manufacturer and insert requirements. |
Thickness | 8 mm. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceCan effectively lower the carbon footprint of a building project by sequestering rich stores of carbon for the life of the structure or application. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAbsorb-R GypLine Visible Zero Carbon Acoustic spray is a combination of cellulose fibres (made of recycled paper). |
