ABG blueroof - Blue Roof System 108mm - Ballasted / Paved Roof applications

Verified by manufacturer 5 months ago

ABG

Blue roof system designed with in-built water attenuation capacity for controlled stormwater discharge.

Jump to:
+44 (0)1484 852096 Website

Application

The product can be utilised beneath many types of finish, including ballasted roofs and beneath paved surfaces.


Suitable for use in:

  • Commercial and residential developments.
  • Supermarkets.
  • Distribution centres.
  • Schools and colleges.
  • Shopping centres.
  • Housing.
  • Flats.
  • Office blocks.

Description

ABG blueroof provides stormwater attenuation capacity at source within the ballasted / paved roof construction of a development.

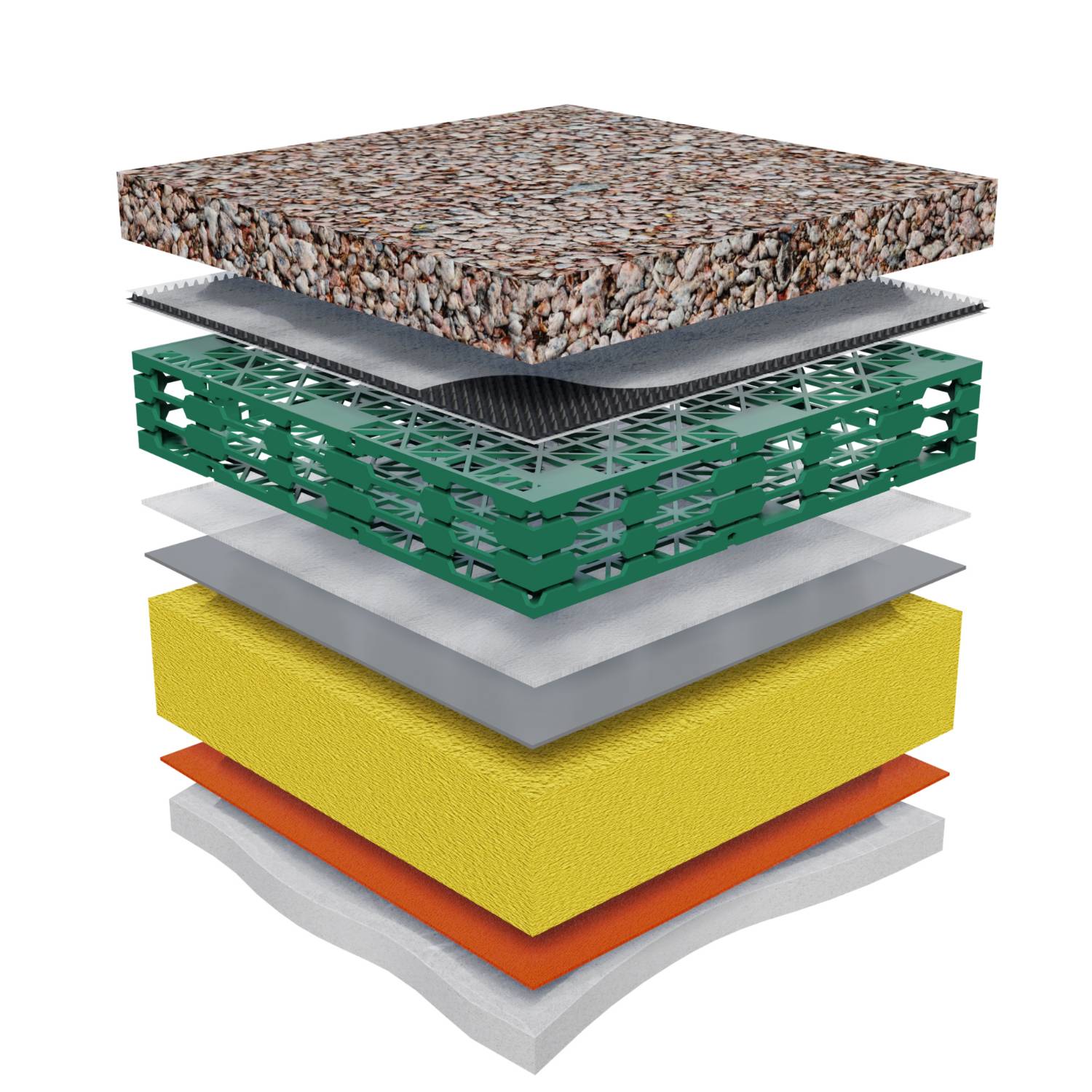

The system comprises:

  • Restrictor chamber: The control function that limits the volume of water flow from the roof or podium areas to the agreed discharge rates.
  • Attenuation and drainage void: Water falling on the podium deck surface percolates through the blue roof build up to the geocomposite layer. In periods of low rainfall it simply flows through the attenuation voids to the restrictor chamber and into the drainage outlet. However when rainfall exceeds the calculated maximum permissible discharge rate, the void is utilised to attenuate the excess water and the outflow rate is controlled via the restrictor chamber.
  • Up to three geocomposite drainage and attenuation layers with integral geotextile wrap: Water passing through this layer is filtered to prevent any solid particles / debris from entering the system.


Features and benefits:

  • Controlled storage and release of storm water in line with SuDS best practice / legislation
  • Reduction in roof penetrations and the number of rain water outlets (RWOs) required
  • Zero fall; no need to screed to fall
  • SuDS schemes; provides source control
  • Contributes to BREEAM scoring
  • Improves quality of discharged storm water
  • Overall time and cost savings versus traditional methods
  • Often replaces the need to install underground attenuation tanks and the associated:

- Additional removal of excavated material required

- More transport and site traffic disruption

- A large carbon footprint


Important note about specifying:

  • The ABG blueroof system is compatible with hot melt or cold liquid applied waterproofing systems (specified separately)
  • For specific advice / SuDS attenuation project calculations during planning & design stages please contact ABG design department.

General information

Color

Green

Finish

Smooth

Material

Polypropylene

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

108 mm

Warranty description

-

Manufacturer guidance

Equal to the life of the blue roof maintenance contract.

Uniclass

Ss_30_40_30_07 Blue roof systemsPrimary

CAWS

R17/315 Modular plastics soakaway units

Product range

ABG blueroof

Specification data - Blue roof systems

Protection layer

Geocomposite membrane.

Attenuation layer

ABG blueroof geocomposite attenuation and drainage layers.

Drainage layer

Integral geotextile wrap.

Roof surfaces

Ballasted/ paved (specified separately).

System accessories

ABG Restrictor Chamber and Overflow Outlet.

Sustainability data

Contains Red List materials

No

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
