A28 Steppy Plus Platform Lift

Name: A28 Steppy Plus Platform Lift
Brand: Vimec SRL
SKU: wMPv2ySEvLLTdNPKiMuDYB

Verified by manufacturer 2 months ago

Vimec SRL

Lifting system for wheelchair users, for maximum heights of 2000 mm.

Jump to:

Website

Application

Suitable for all types of home renovations and remodelling work.
Also suitable for shops, offices, banks, showrooms or any other public space where height gaps of up to two metres need to be overcome.
Appropriate for both indoor and outdoor environments.

Description

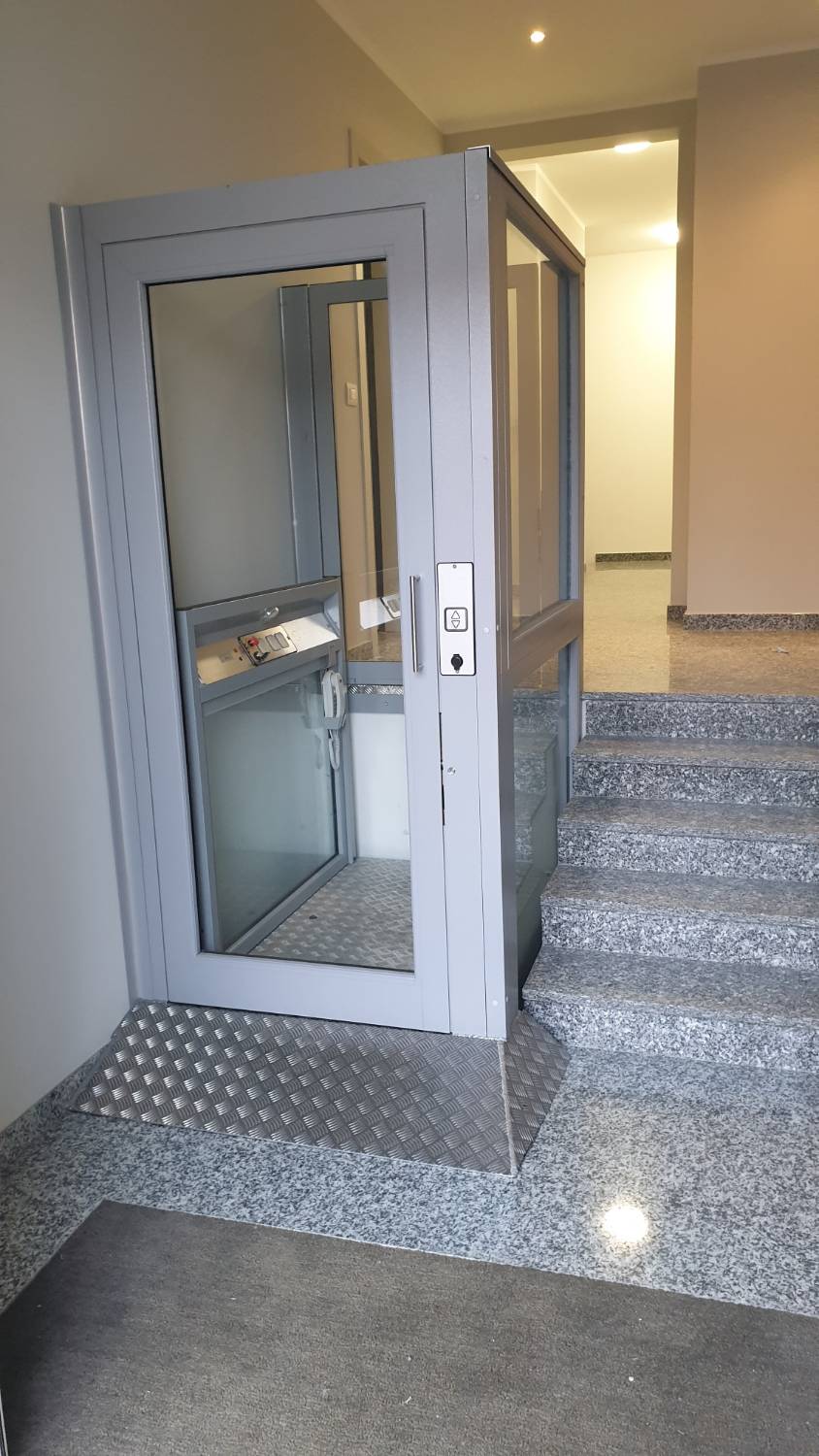

The Steppy Plus platform lift is an elevator platform for heights of up to 2000 mm. The lift overcomes architectural barriers such as stairs to provide independent movement for the elderly and people with disabilities. Vimec’s Steppy platform lift comes complete with an aluminium support structure, has custom safety devices, and is easy to use.

Features and benefits:

Hydraulic power unit.
Dead man’s controls, both on-board and at the floor stations.
On-board emergency stop device.
Removable key for the on-board and floor station controls.
24V d.c. auxiliary power circuit.
Electric locks.
Automatic check valve safety catch device.
Manual emergency descent in the event of a blackout.
Self-levelling at the floor station.
Possibility of opening the doors from the outside using a special key.
Does not require any structural interventions.
Low energy consumption.
Quick installation.

General information

Color	Grey
Shape	Rectangle
Length	1260 mm 1400 mm 1700 mm
Width	900 mm 1000 mm 1100 mm 1200 mm
Warranty description	Two year

Uniclass	Pr_65_80_47_95 Vertical lifting platformsPrimary
CAWS	X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Standard	To EN 81-41.
Rated load (minimum)	400 kg.
Drive type	Electrohydraulic. Guidance for specification option: With power unit on board and automatic self levelling as standard; power unit can be installed at a distance of 3 or 6 metres.
Carriage type	Half-height.
Carrier	-
Frame colour	RAL 7040.
Carrier floor	-
Material	Non-slip embossed aluminium plate.
Electrical supply	Suitable for single-phase 230 V a.c. 50 Hz operation.
Control device type	50 x 50 mm vandal-proof stainless steel backlit push-buttons with braille markings both on the lift and at the floor. Guidance for specification option: As standard. Wall or post-mounted remote control. Guidance for specification option: Optional.
Control features	Hold-to-run operation with return to ground level after time-out at 15 minutes; Emergency lowering system. Guidance for specification option: Emergency lowering system as standard. The platform descends slowly at a constant speed to the lower level. Operated by an onboard yellow control button with anti-black-out batteries.

Product Reference	A28 Steppy Plus Version 80 1260 x 900 mm A28 Steppy Plus Version 80 1260 x 1000 mm A28 Steppy Plus Version 80 1260 x 1100 mm A28 Steppy Plus Version 80 1260 x 1200 mm A28 Steppy Plus Version 80 1400 x 1000 mm A28 Steppy Plus Version 80 1400 x 1100mm A28 Steppy Plus Version 80 1400 x 1200 mm A28 Steppy Plus Version 160 1260 x 900 mm A28 Steppy Plus Version 160 1260 x 1000 mm A28 Steppy Plus Version 160 1260 x 1100 mm A28 Steppy Plus Version 160 1260 x 1200 mm A28 Steppy Plus Version 160 1400 x 1000 mm A28 Steppy Plus Version 160 1400 x 1100 mm A28 Steppy Plus Version 160 1400 x 1200 mm A28 Steppy Plus Version 200 1700 x 1100 mm Show more
