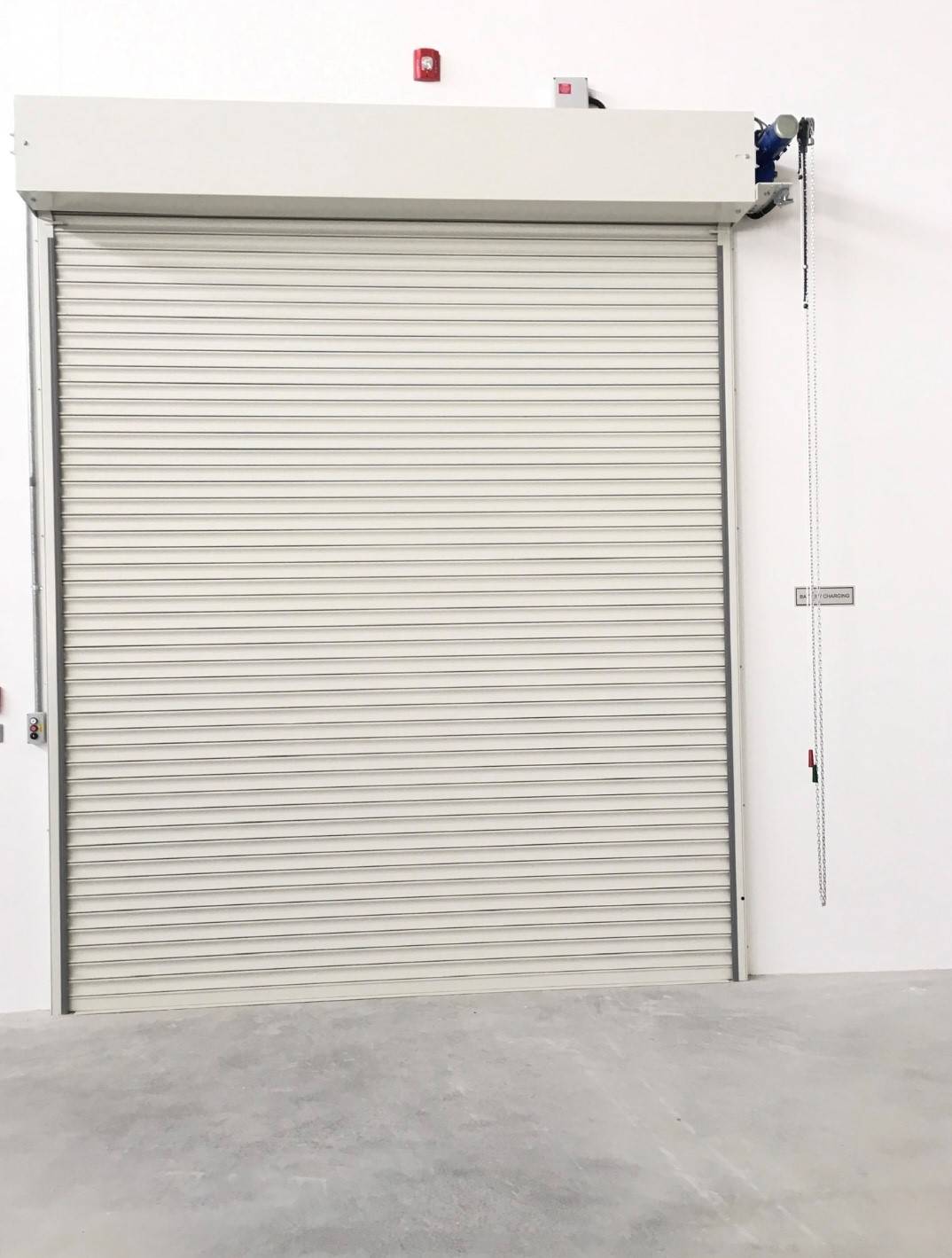

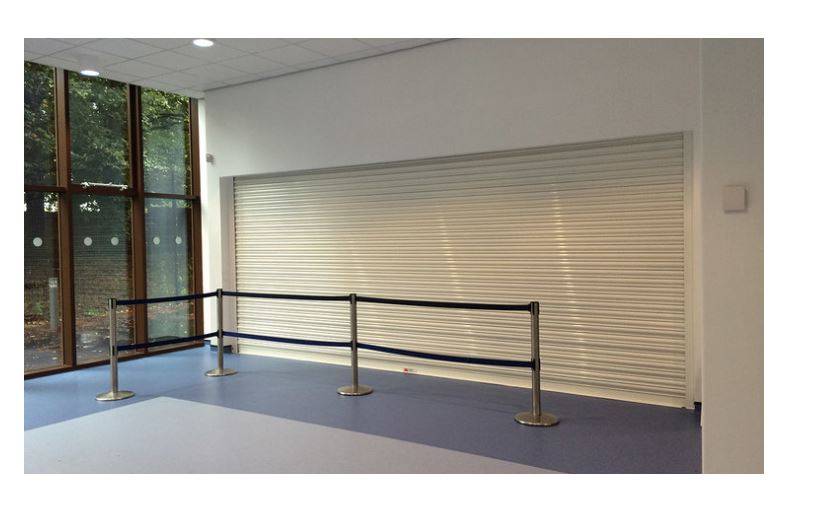

A1S Flameshield Fire Shutter 60 JM - Fire Shutter

Verified by manufacturer 10 months ago

A1S Group Third party certifications:
  • Warringtonfire

    Warringtonfire

    Certificate type

CE marked to BS EN 16034 fire shutter for steel, masonry, timber and stud systems with external motor. Third party Installation Certification is with IFC (certificate 3425) for installation.

Jump to:
+44 (0)1204 383839 Website

Application

Suitable for installation within the following structures:

  • Timber.
  • Masonry.
  • Steel.

Description

The fire shutters are manufactured and produced in accordance with the parameters and technical aspects indicated within the specifications, which were submitted to the Warrington Fire Research Establishment. The shutters are constructed to Fire Testing in accordance with BS EN 1634-1 and full compliance with the new Fire Standard BS EN 16034:2014. This product can be fitted to either a flexible or rigid structure and is CE marked. Third party Installation Certification is with IFC (certificate 3425) for the installation of fire shutters.


Features and benefits:

  • Element Fire Research Centre No 421972 Timber/ Flexible Structure test.
  • Extended Application under BS EN 15269-10: 2011 WF 421375.
  • Certificate of Constancy of Performance - 1121-CPR-RA5009.
  • CE marked.



Endplates:

The endplates are fixed to a steel fixing angle which spans the full height of the shutter, which in turn is fixed back to the wall construction. Accordingly, the angles are slotted for expansion with an anchor point located at the bottom of the angle.


Guides:

Constructed from minimum 50 mm straight channel galvanized guide mounted on 75 x 50 mm mild steel angle (minimum). For shutters of increased width compared with the tested to provide for expansion the depth of each guide rail shall be increased by 5 mm for every 1 m increase in width.


Hood:

Formed from 20 swg steel sheet, with the top leg slotted for expansion. Dependent on the fire rating of the shutter (one hour only) and the size of the opening (hood support brackets are no longer able to be used to reduce the barrel diameter). The EXAP provide for the use of a canopy (specific appropriate restrictions apply).


Release mechanism:

Fusible Link/Manual reset solenoid/Auto reset Solenoid Alternatively, Audio Visuals are available, again to be linked to the fire alarm, this unit offers the facility of a time delay, which flashes and sounds to warn that the fire shutter is closing.

General information

Color

-

Manufacturer guidance

BS 4800 and RAL colours available.

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_84_30 Fire-resisting roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

Specification data - Fire-resisting roller shutters

Opening sizes

-

Manufacturer guidance

Maximum size (w x h): 4000 x 3800 mm.

Format

Fire shutter.

Performance

-

Fire performance

-

Fire resistance

60 minutes.

Frame and guides

-

Material

Steel.

Finish

Polyester powder-coating.

Guidance for specification option:

Angles, barrel and end plates are painted.

Galvanized.

Guidance for specification option:

Guides.

Colour

BS 4800.

RAL.

Manufacturer guidance

Subject to availability. Consult manufacturer for details and insert requirements.

Shutter curtain

-

Lath material

76 mm curved steel scroll laths interlocked with steel end locks and galvanized 'T' section bottom rail.

Profile

Curved.

Finish and colour

Galvanized.

BS 4800.

Guidance for specification option:

Polyester powder coating.

RAL.

Guidance for specification option:

Polyester powder coating.

Operation

Electrically operated 1PH/ 3PH - Hand chain override.

Accessories

Audio/ visual device.

Guidance for specification option:

Audio Visuals are available, again to be linked to the fire alarm, this unit offers the facility of a time delay, this flashes and sounds to warn that the fire shutter is closing.

Fusible Link.

Manual Reset Solenoid.

Auto Reset solenoid.

Third party certifications

Warringtonfire

Warringtonfire

Certificate of Constancy of Performance (AVCP) CE marked fire shutters 60-240 minutes
