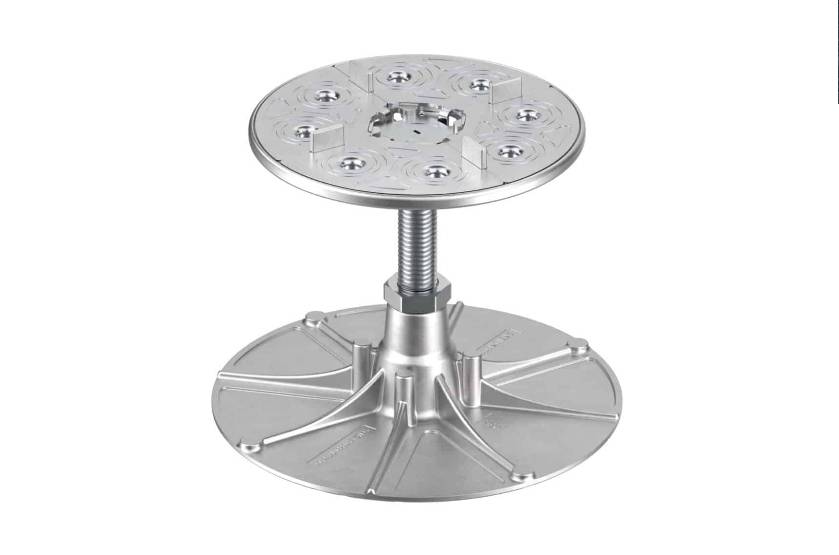

A1 Smart-Ped - Paving Pedestal
Verified by manufacturer 7 days ago
A non-combustible aluminium and zinc-coated steel pedestal system for rooftop terraces, podium decks, balconies, and flat roofs that prevents wind uplift.
Application
For rooftop terraces, balconies and flat roofs designed to BS 8579.
Description
A non-combustible aluminium and zinc-coated steel pedestal system for rooftop terraces, balconies and flat roofs designed to BS 8579, Guide to the design of balconies and terraces.
The Smart-Ped lock includes four locked corner pieces which can be locked and unlocked with a 3 mm screwdriver. There are three different support heads available: standard with four spacers, with two spacers (edge zone) or with three spacers (stretcher bond).
The system is designed to operate with an adhesive bond between the slabs and pedestals, ensuring a strong surface without mechanical fixings. The system is specifically designed for applications where a non-combustible pedestal is required with the additional benefit of resisting wind uplift as a monolithic system.
Features and benefits:
- No fiddley mechanical fixings.
- No expensive fixing channels in the paving slabs.
- Individual demountable corner pieces.
- Class A1 - fire rated.
- Smart locking mechanism.
- Recycled aluminium and zinc-coated steel.
- Height from 40 mm to 330 mm.
- Quick and simple installation.
- Removable nibs for various bond patterns.
- Adjustable base plate for sloping roofs up to 6 degrees.
General information
Color | Silver |
Finish | Zinc plated |
Material | Aluminium Steel |
Shape | Circle |
Width | 169.1 mm |
Height | 40 mm 50 mm 65 mm 85 mm 90 mm |
Warranty description | 15 year Guidance for specification option: When installed and maintained to manufacturer's guidelines. |
Uniclass | |
CAWS | Q37/460 Support pedestals J42/467 Support system for precast concrete paving slabs J31/377 Support system for paving slabs or tiles J21/467 Support system for precast concrete paving slabs J41/467 Support system for precast concrete paving slabs |
Specification data - Decking and paving pedestals
Classification data | |
Pedestal type | Adjustable. |
Material | Aluminium and zinc-coated steel. |
Adjustment | 40–50 mm. Guidance for specification option: Non-standard size; consult manufacturer for more details. 50–65 mm. Guidance for specification option: Non-standard size; consult manufacturer for more details. 50–75 mm. 85–90 mm. 85–130 mm. 130–180 mm. 180–230 mm. 230–280 mm. 260–290 mm. 280–330 mm. Manufacturer guidanceRods to be supplied dependent on size specified. |
Accessories | Not required. Smart-Ped shims. Guidance for specification option: Zinc-coated steel shims used for the head of the A1 Smart-Ped system to aid stability or compensate for variation in pavement thickness. Smart-Ped slope correction. Guidance for specification option: Aluminium slope corrector in combination with the Smart-Ped system to aid stability or compensate for variations in pavement thickness. Dreen Hybrid adhesive HP50. Guidance for specification option: Used for permanent fixing of the supplied Smart-Ped demountable corner pieces. Demountable corner pieces. |
Fire rating | To BS EN 13501-1, Class A1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Aluminium Steel |
Recyclability | 100% |
Literature
Literature type

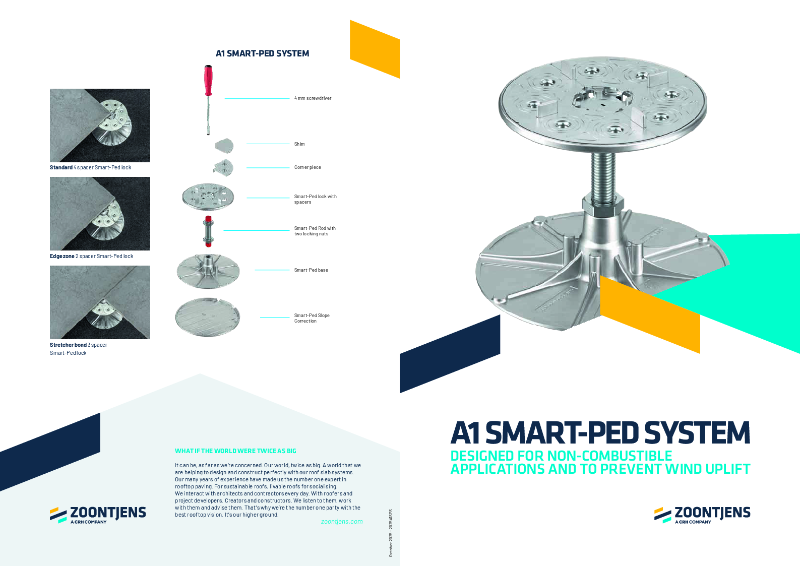

A1 Smart Ped System

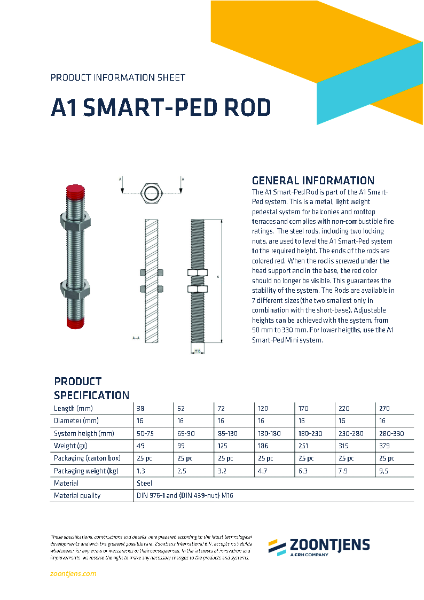

A1 Smart-Ped Rod Product Information Sheet

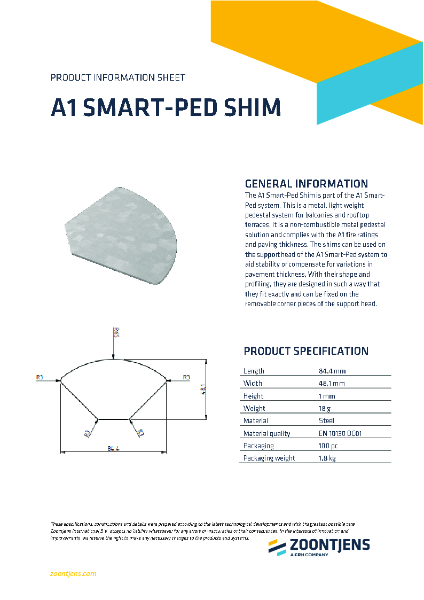

A1 Smart-Ped Shim Product Information Sheet
A1 Smart-Ped Slope Corrector Product Information Sheet

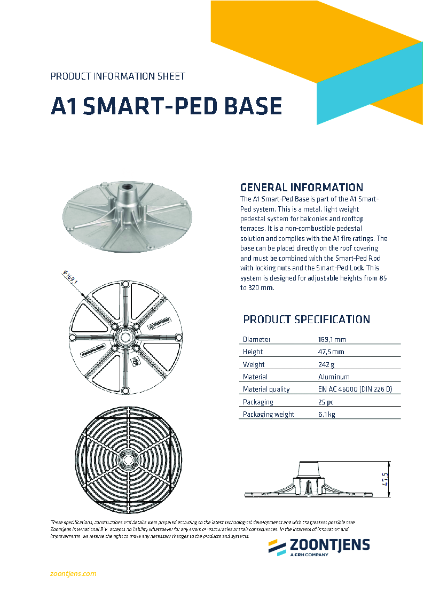

A1 Smart-Ped Base Product Information Sheet
A1 Smart-Ped Lock 2 Spacers Product Information Sheet
A1 Smart-Ped Lock 3 Spacers Product Information Sheet

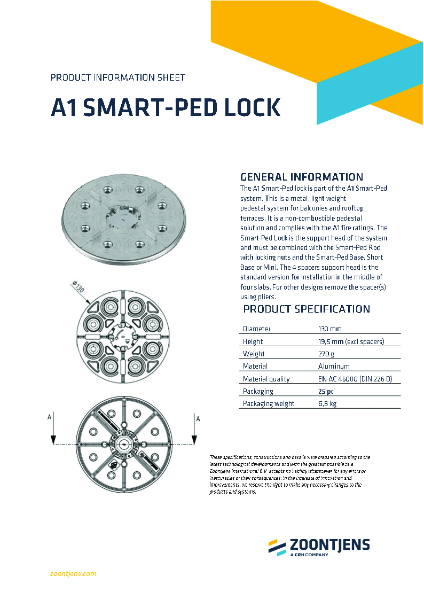

A1 Smart-Ped Lock 4 Spacers Product Information Sheet

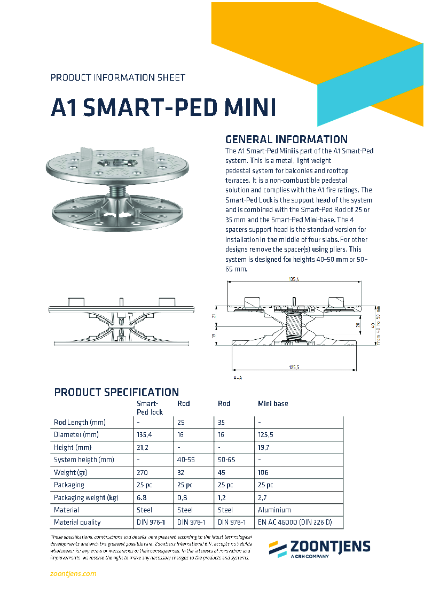

A1 Smart-Ped Mini System

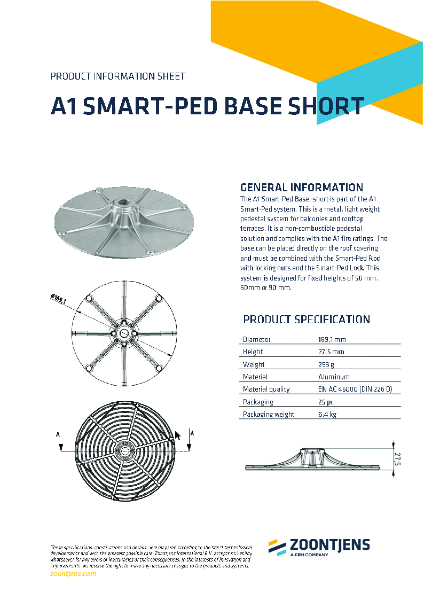

A1 Smart-Ped Short Base Product Information Sheet
