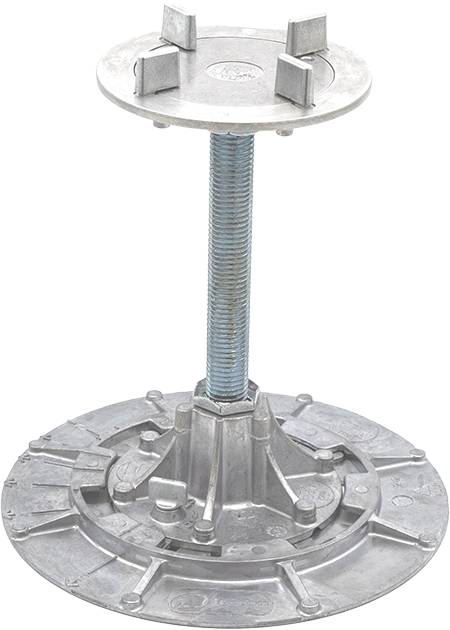

A-PED Fire-rated Aluminium Pedestals
Verified by manufacturer 5 months ago
A-PED-24-30
A-PED-24-30
Wind Uplift Test Certificate
Certificate type
Class A fire-rated adjustable pedestal, height between 24 mm and 395 mm consisting of 15 pedestal models with slope correction for balconies, roof terraces and anywhere requiring maximum fire safety
Application
Suitable for use with paving, decking, grating and any hard landscaping or external flooring project including high-rise balconies where maximum fire-safety is a requirement.
Description
Non-combustible A1-rated height adjustable pedestal range with integrated slope correction.
Features and benefits:
- Height adjustment of 24–395 mm.
- Class A1 fire-rated.
- Built-in slope corrector for millimetre-precise correction from 0–5%.
- Superior load bearing.
- UV and weather resistant.
- Ability to conceal services.
- Adjustment range starting from 24 mm.
- Wide 170 mm base for load spreading.
- Wide head for superior support.
- A range of accessories including 3 and 5 mm spacer tabs, edging restraints, shims and joists.
- Wind uplift solutions for pavers.
General information
Color | Silver |
Material | Aluminium Steel |
Warranty description | 30 year |
Uniclass | |
CAWS | G30/110 Metal profiled sheet decking G30/110 Metal profiled sheet decking J41/90 Precast concrete paving slabs J31/80 Precast concrete paving slabs Q37/460 Support pedestals K41/320 Pedestals J41/467 Support system for precast concrete paving slabs Q25/480 Support pedestals J31/375 Paving tiles J31/377 Support system for paving slabs or tiles J21/85 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs J21/467 Support system for precast concrete paving slabs Q37/160 Paving and decking systems J31/370 Precast concrete paving slabs Q55/395 Support pedestals Q55/110 Deck |
Product range |
Specification data - Decking and paving pedestals
Classification data | |
Pedestal type | Adjustable. |
Material | Aluminium. Zinc-coated steel. |
Adjustment | 24—30 mm. |
Accessories | Not required. Fire-rated spacer tabs 3 and 5 mm. Fire-rated edging products. Fire-rated membrane protection. Fire-rated shims. Fire-rated wind uplift solution. Joists. |
Reaction to fire to EN 13501 | Class A1. |
Base diameter | 90 mm. |
Slope correctors | None. |
Fixings | 1 x locking nut. |
Sustainability data
Country of product manufacture | Europe |
Material | Aluminium Steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
Product certifications
Literature

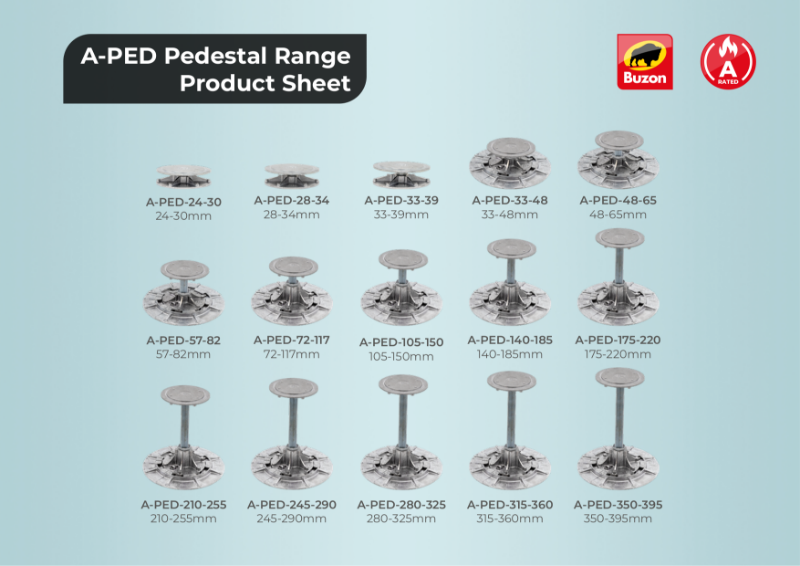

Product Sheet - A-PED Non-combustible A1 fire-rated Adjustable Pedestals with Integrated Slope Correction
Case studies
New River Head

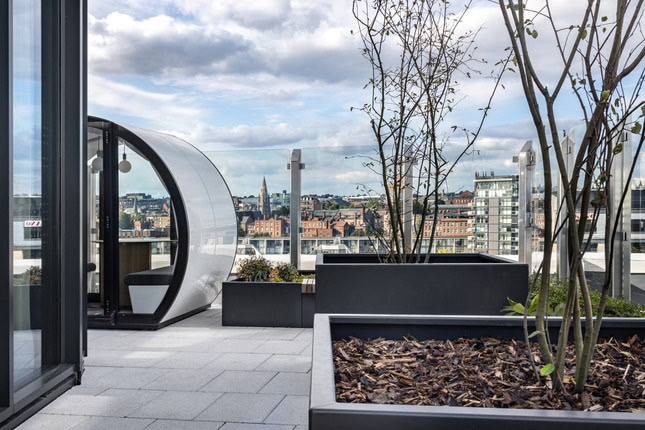

The Place, Nottingham
