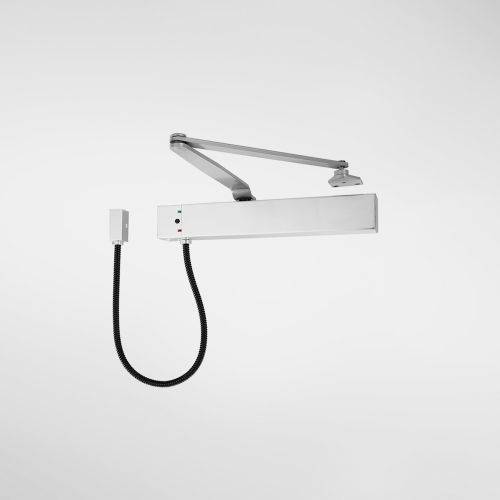

9461 Overhead Door Closer - Electromagnetic

The Allgood type 9461 is a fire-hold, fixed power, overhead door closer with electromagnetic free swing facility. The closer is designed for fixing to the opening face of the door.

Features and benefits:

• Independently tested and complies with the requirements of BS EN 1155.
• Classification coding: 3-8-3-1-1-3.
• CE marked.
• Type 9461 has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22, providing fire resistance for 120 minutes.
• Power classification: BS EN Power class: Fixed 3.

Properties:

• Electromagnetic freeswing facility.
• The unit also incorporates an integral test button for simplified regular system checking. Twin LED status indicators are incorporated.
• Options include type 9471 or type 79053, armoured cable loop or type 8066T2, power transfer hinge.
• Units are designed for opening face fixing and are supplied with an intumescent-protected soffit plate.
• Optional face fixing bracket type 9151FN is available separately.

===========================

9461 Allgood Hardware Surface Mounted Figure 1 Electromagnetic

Freeswing Overhead Door Closer

• Independently tested to BS EN 1155

• Maximum door weight: 60kg

• Maximum door width: 950mm

• Minimum door width: 400mm

• Maximum opening angle: 180°

• Application Figure 1

• Mechanism Rack & Pinion

• Non handed

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 120 mins on timber doors and up to 240 mins on Fully Insulated steel based doors

• CE Marked

• Fixed Power size 3

• Adjustable closing speed

• Adjustable latching action

• Fixed armset with soffit fixing bracket

• Supplied with fixings to suit timber or metal doors and frames

• Electromagnetic free swing facility

• Power supplied required = 24v DC

• Current Draw = 95mA

• Supplied c/w black power transfer loop and frame mounted connection box

• 2 year mechanical warranty

===========================
