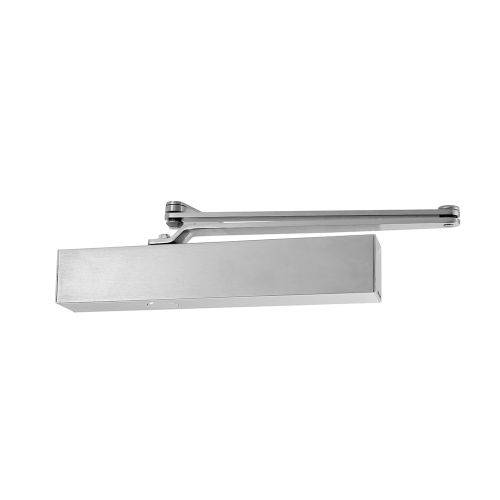

9156A Overhead Door Closer

Third party certifications:
  • BSI Kitemark

    Certificate type

  • Certifire Certificate

    Certificate type

Allgood plc

A range of overhead door closers to BS EN 1154.

Jump to:
+44 (0)20 7387 9951 www.allgood.co.uk
Description

A range of heavy-duty door closer with fully adjustable power and adjustable backcheck. The closing speed is fully adjustable with independent latch action.

Units are designed for opening face fixing on internal and external wood and metal doors.

Performance:

  • Independently tested and complies with the requirements of BS EN 1154.
  • Classification coding 3-8-2/4-1-1-3.
  • CE marked certificate.
  • Type 9156A has been included in third party testing on timber fire door assemblies to BS EN 1634-1 and BS 476-22. Providing fire resistance for 120 minutes.
  • Type 9156A and 9156ADC units are UL listed R11296.
  • Type 9156A unit is Certifire CF 104 approved, for use on certain latched and unlatched assemblies and single and double doors.

Note: The delayed closing and hold open versions are not suitable for use with fire doors.

General information
Specification data
Product Reference

9156A

Figure 6 door closer.

9156ADC

Delayed closing version. Not suitable for use with fire doors.

9156ASO

Hold open version. Not suitable for use with fire doors.

Closer Casing finish

BF - Simulated bronze

MP - Modric polished etched and anodized

PS - Plated polished stainless steel

SS - Plated stainless steel

Accessories

Not required

9156FN

Alternative Figure 6 face fixing bracket.

Brackets and plates for metal doors

Standard product features

Power classification:

Power size: 2–4.

Third party certifications

Additional certifications:

  • BS EN 1154 : Independently third-party tested to BS EN 1154
