Verified by manufacturer 1 month ago
Certifire Certificate
Certificate type
UL Listed
Certificate type
A range of overhead door closers to BS EN 1154
Suitable for internal and external, wood and metal doors.
A range of heavy-duty door closers with fully adjustable power and adjustable backcheck, latching and closing speed.
Units are designed for opening face fixing and supplied with an integral intumescent protected soffit fixing plate, designed for internal and external, wood and metal doors.
Features and benefits:
Note: Delayed closing and hold open versions are not suitable for use with fire doors.
==========================

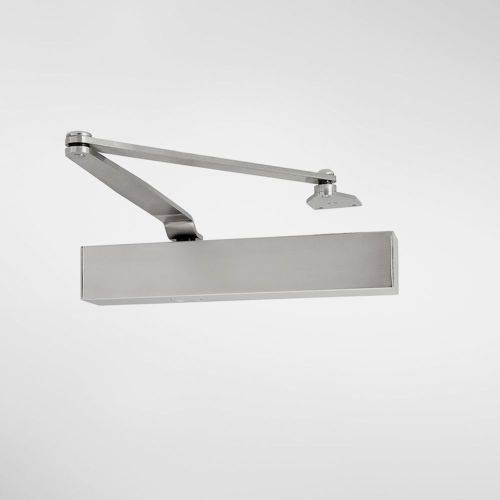

9151A Allgood Hardware Surface Mounted Figure 1 Overhead Door Closer
• Independently tested to BS EN 1154
• Maximum door weight: 80kg
• Maximum door width: 1100mm
• Minimum door width: 400mm
• Maximum opening angle: 180°
• Application Figure 1
• Mechanism Rack & Pinion
• Non handed
• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 120 mins on timber doors and up to 240 mins on Fully Insulated steel based doors
• CE Marked & Certifire approved CF 104
• UL Listed
• Adjustable Power size 2-4
• Adjustable closing speed
• Adjustable backcheck
• Adjustable latching action
• Fixed armset with soffit fixing bracket
• Supplied with fixings to suit timber or metal doors and frames
• 10 year mechanical warranty
==========================
9151ASO Allgood Hardware Surface Mounted Figure 1 Stand Open
Overhead Door Closer
• This product is NOT suitable for use on fire rated doors
• Maximum door weight: 80kg
• Maximum door width: 1100mm
• Minimum door width: 400mm
• Maximum opening angle: 180°
• Application Figure 1
• Mechanism Rack & Pinion
• Non handed
• Adjustable Power size 2-4
• Adjustable closing speed
• Adjustable latching action
• Mechanical stand open facility
• Fixed armset with soffit fixing bracket
• Supplied with fixings to suit timber or metal doors and frames
• 10 year mechanical warranty
Finishes: SS · PS · BF · MP
==========================
9151ADC Allgood Hardware Surface Mounted Figure 1 Delayed Action Overhead Door Closer
• This product is NOT suitable for use on fire rated doors
• Maximum door weight: 80kg
• Maximum door width: 1100mm
• Minimum door width: 400mm
• Maximum opening angle: 180°
• Application Figure 1
• Mechanism Rack & Pinion
• Non handed
• Adjustable Power size 2-4
• Adjustable closing speed
• Adjustable latching action
• Adjustable backcheck
• Adjustable delayed action
• UL Listed (Suitable as Fire Rated for UL only)
• Fixed armset with soffit fixing bracket
• Supplied with fixings to suit timber or metal doors and frames
• 10 year mechanical warranty
Finishes: SS · PS · BF · MP
==========================
Color | Bronze Silver |
Finish | Anodized Modric polished etched and anodized. Polished Plated polished stainless steel. Satin |
Material | Stainless steel |
Shape | Rectangle |
WarrantyDescription | Ten year |
Uniclass | |
CAWS | L20/420 Wood doorsets P21/12 Overhead door closers P21/410 Overhead door closers |
Product range |
Standard | To BS EN 1154. |
Classification grades (minimum) | - |
Category of use | 3. |
Durability | 8. |
Door closer power size | 2 /4. |
Suitability for use on fire and smoke doors | 1. |
Safety | 1. |
Corrosion resistance | 3. |
Form | Overhead, face fixed. |
Closer functions | Back check. |
Materials and finishes | - |
CasingsCloser casing finish. | Simulated bronze.Modric polished etched and anodized.Plated polished stainless steel.Plated stainless steel. |
Type | 9151A. Figure 1 door closer. 9151ADC. Delayed closing version; not suitable for use with fire doors. 9151ASO. Hold open version; not suitable for use with fire doors. |
Accessories | Not required. 9151FN. Alternative Figure 1 face fixing ‘U’ bracket. Brackets and plates for metal doors. |
Third-party certification | UL listed R11296 and Certifire CF104 approved. |
Fire resistance | To BS EN 1634-1 and BS 476-22. 120 minutes on timber fire door. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
