9133S GEZE Boxer Overhead Door Closers

9133S GEZE Boxer Overhead Door Closers

Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • Certifire Certificate

    Certifire Certificate

    Certificate type

Allgood plc

A range of concealed overhead door closers to BS EN 1154.

Jump to:
+44 (0)121 359 4415 www.allgood.co.uk
Description

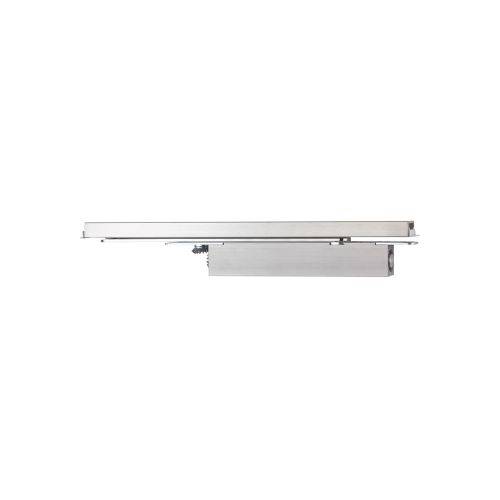

Allgood Hardware fully concealed door closer for single action doors.

Features and benefits:

  • Independently tested to BS EN 1154 3-8-2/4-1-1-4.
  • CE marked.
  • Certifire approved.
  • Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 60 minutes on timber doors and 240 minutes on metal doors.

General information

Features

Maximum door weight: 130 kg

Maximum door width: 1100 mm

Minimum door thickness: 40 mm

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

L20/420 Wood doorsets

P21/12 Overhead door closers

P21/410 Overhead door closers

Specification data - Controlled door closers

Product Reference

9133S - GEZE Boxer 2-4

9133SE - GEZE Boxer Emag 2-4

9133SED - GEZE Boxer Emag Double 2-4

Casing finish

BF - Simulated bronze

PS - Polished stainless steel

SS - Satin stainless steel

Accessories

Not required

XX9133FP

Intumescent pack.

Standard product features

Features:

  • Maximum door weight: 130 kg.
  • Maximum door width: 1100 mm.
  • Minimum door thickness: 40 mm.

Power classification:

BS EN 1154 Power size: 2–4.

Product Options

Product reference:

- 9133S - GEZE Boxer 2-4:

Allgood Hardware fully concealed door closer for single action doors.

- 9133SE - GEZE Boxer Emag 2-4:

Allgood Hardware fully concealed door closer for single action doors. As 9133S but with track and arm complete with electrical hold open device.

- 9133SED - GEZE Boxer Emag Double 2-4:

Allgood Hardware fully concealed door closer for single action doors. As 9133SE but 2no with integrated mechanical closing sequence control.

Third party certifications
  • BS EN 1154 : Independently tested to BS EN 1154 3-8-2/4-1-1-4
  • Approved
  • British Standards Institution (BSI) - certficate : Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 60 minutes on timber doors and 240 minutes on metal doors
