90° floor gullies, non-trapped
Description

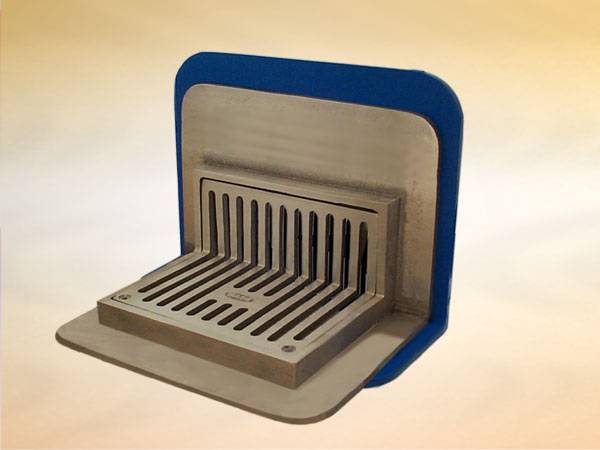

A non-trapped 90° flush fitting gully for use in areas where drainage is required at the junction of a wall and floor. A separate membrane clamping collar ensures a watertight seal.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

90° floor gully, non-trapped

Body

P1412, 2" BSP outlet with nickel bronze grating, for use with floors finished with tiles, marble, terrazzo

P1413, 3" BSP outlet with nickel bronze grating, for use with floors finished with tiles, marble, terrazzo

P1414, 4" BSP outlet with nickel bronze grating, for use with floors finished with tiles, marble, terrazzo

P1422, 2" BSP outlet with stainless steel grating, for use with floors finished with tiles, marble, terrazzo

P1423, 3" BSP outlet with stainless steel grating, for use with floors finished with tiles, marble, terrazzo

P1424, 4" BSP outlet with stainless steel grating, for use with floors finished with tiles, marble, terrazzo

Standard product features

Materials:

- P1412/ P1413/ P1414:

  • Grating: Nickel bronze.
  • Body: Cast iron, lacquered.
  • Membrane clamp: Sherardized ductile iron.

- P1422/ P1423/ P1424:

  • Grating: Stainless steel.
  • Body: Cast iron, lacquered.
  • Membrane clamp: Sherardized ductile iron.

Product Options

Pin Torx screws for security applications, suffix H.
