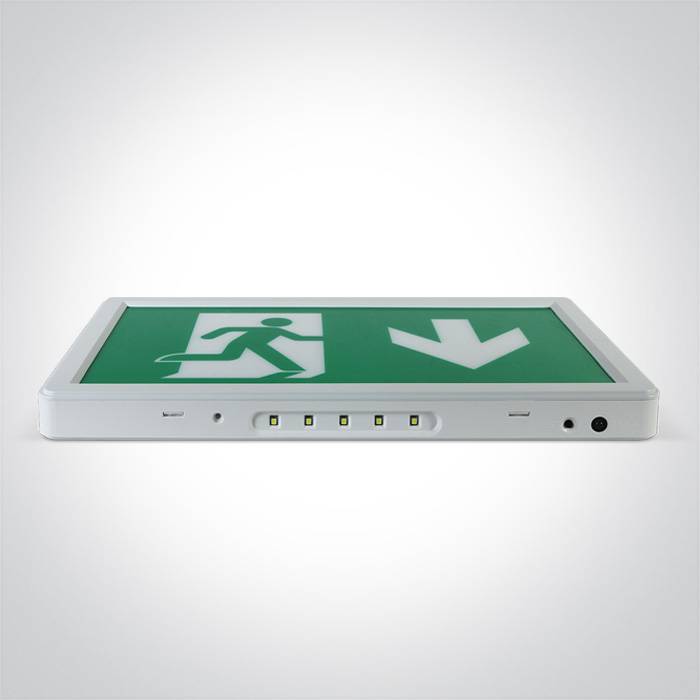

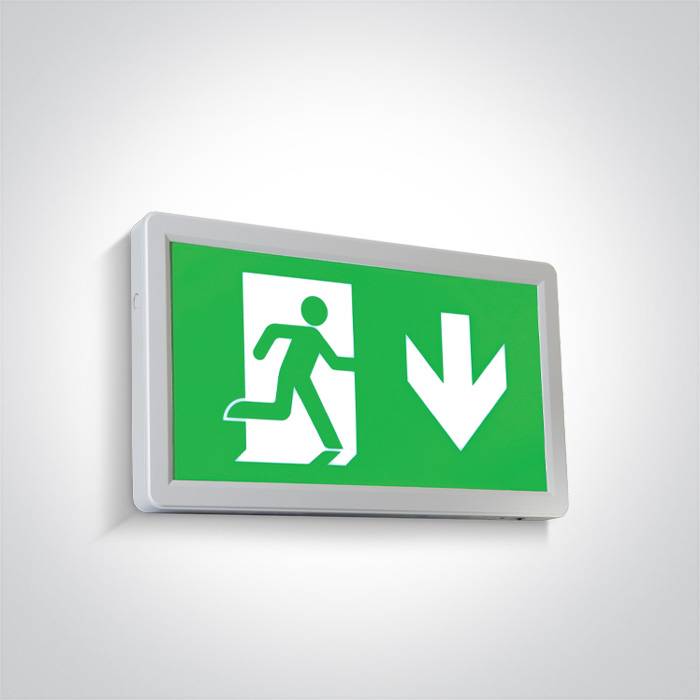

89408/W Exit Sign - Emergency light
Verified by manufacturer 7 months ago
Certificate of Approval
Certificate type
LED wall and ceiling exit sign.
Application
Emergency lighting for indoor wall and ceiling applications.
Description
3 W LED wall and ceiling exit sign.
Features and benefits:
- Supplied with battery.
- With monthly Auto Self Test.
- IP20.
- Complies with standard EN60598-1 and any other specific standards.
- CE marked.
General information
Color | White |
Material | Polycarbonate |
Shape | Rectangle |
Length | 320 mm |
Width | 185 mm |
Height | 26 mm |
Warranty description | Two year |
Uniclass | |
CAWS | V90/510 General-purpose luminaires V90/510 General purpose luminaires N91/510 Safety sign N91/510 Safety sign |
Specification data - Emergency luminaires
Standards | To BS EN 60598-1 and BS EN 60598-2-22.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | LED wall and ceiling exit sign. |
Classification | |
Electric shock | To BS EN IEC 60598-1, Class II (fitting and driver), Class I (gear). |
Ingress protection (minimum) | IP20. |
Suitability for direct mounting on normally flammable surfaces | Suitable for direct mounting on normally flammable surfaces. |
Circumstances of use | Normal.Guidance for specification option: Indoor use. |
Controlgear position | Integral within luminaire.Guidance for specification option: LED driver. |
Nominal voltage | 220–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
LED luminaires | |
Wattage | 3 W. |
Graphical symbol format | European format sign, running man, arrow down. |
Battery capacity | 1500 mAh. |
Battery voltage | 3.2 V. |
Dimensions | 320 x 185 x 26 mm. Manufacturer guidanceLength x width x height. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | China |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Certificate of Approval
Declaration of Conformity 89408/W
