80556 E-Organisation Public Narrow
Verified by manufacturer 3 months ago

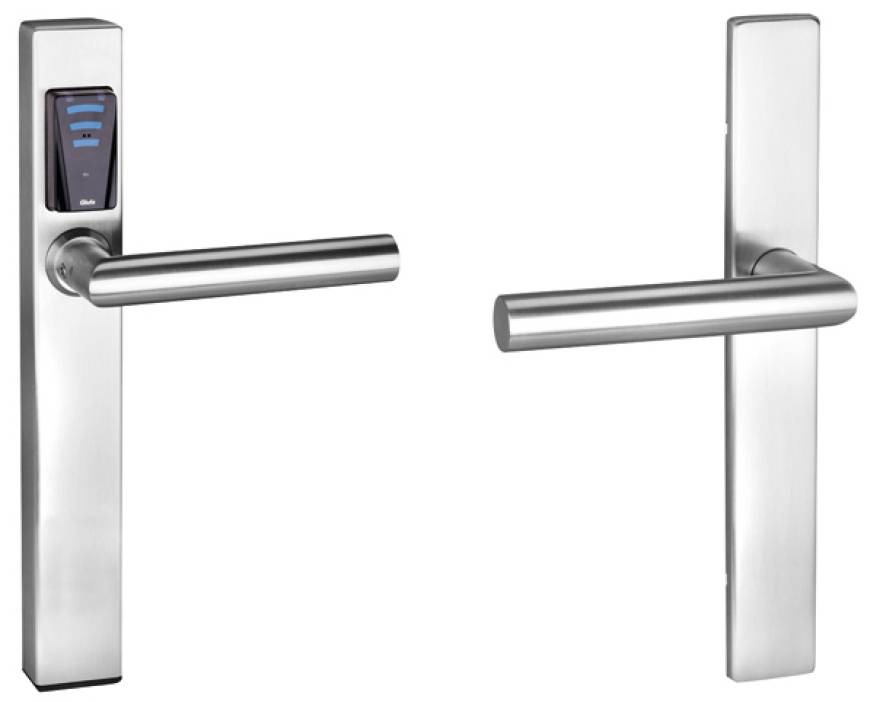

E protection fitting, with interior plate.
Application
For metal frame interior doors.
Description
Battery-operated electronic organisation fitting for metal frame interior doors. Opening and closing from outside occurs with contact reading of the RFID medium. Door opening is always assured with the interior lever handle; EN179-compliant with suitable lever handle.
Scope of supply:
- E-fitting including interior plate.
- Lever handle pair.
- Battery pack.
- Square spindle and screw set.
- Quick guide.
Features and benefits:
- For DIN left-hand/right-hand doors.
- Identification via RFID Mifare DESfire EV 1 (ISO 14443A).
- Programming via media or wireless access (868 MHz).
- External lever handle engaged, freewheeling.
Standards:
- EN 1906.
- DIN 18251-1.
- EN 179 (with suitable lever handle).
General information
Finish | Satin Polished Anti-microbial |
Material | Brass Stainless steel |
Shape | Other |
Width | 35 mm 38 mm |
Height | 277 mm |
Uniclass | |
CAWS | P21/38 Lever handles P21/610 Lever handles |
Specification data - Door lever handle sets
Standard | To BS EN 1906. |
Classification grades (minimum) | |
Category of use | 4. |
Style | 53001 (5071) Memphis.53002 (5066) Savannah.53004 (5064) Oslo.53010 (5057) Thun.53011 (5062) New Orleans.53013 (5098) Olten.53003 (5059) Oslo angled.53012 (5072) Memphis angled.53009 (5066) Savannah angled.50935 (5038) Lugano.50937 (5040) Merkur.50936 (5038V) Lugano angled.50938 (50040) Merkur.50939 (50041) Merkur angled.50939 (50042) Merkur angled.50970 (50070) Appenzell.50971 (50071) Appenzell. |
Material and finish | 00 Satin stainless steel.11 Polished stainless steel.22 Polished brass.33 Satin brass.44 Anti-bacterial.55 Wrought iron look.73 PVD black. |
Power supply | Lithium battery. |
Cut-outs | Blind. RZ, 74 mm. RZ, 78 mm. RZ, 90 mm. RZ, 94 mm. |
Spindle | 8 mm. 8.5 mm. 9 mm. |
Door thickness | 34 to 43 mm. 44 to 53 mm. 54 to 63 mm. 64 to 73 mm. 74 to 83 mm. |
Base rose | 00 None/ blind. |
RFID credentials | RFID Mifare DESfire EV 1 (ISO 14443A). |
Ingress protection (IP) rating | IP54. |
Sustainability data
Material | Brass Stainless steel |
