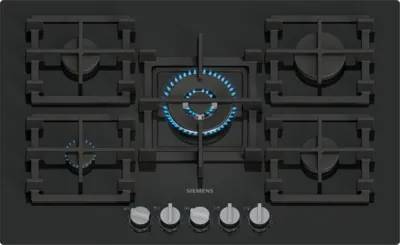

75 cm Gas Hob on Tempered Glass
Verified by manufacturer 3 days ago
Gas hob with stepFlame technology for precise flame control in nine steps.
Application
For domestic applications.
Description
Gas hob 75 cm, tempered glass in black.
Features and benefits:
- stepFlame Technology – precise flame control with nine different settings.
- This wok burner with 4.0 kW of power is suitable for a wide variety of foods, even in large quantities.
- Dishwasher safe semi-continuous cast-iron pan supports for maximum stability and cooking convenience.
- Biomethane ready – power the gas hob with renewable biomethane gas.
- Removable sword knobs: a better feel and easier to operate.
Model:
- EP7A6QI40: 75 cm, 4.0 kW wok burner, stepFlame, semi-continuous cast-iron pan supports.
General information
Color | Black |
Material | Glass |
Shape | Rectangle |
Length | 520 mm |
Width | 752 mm |
Height | 58 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances N12/330 Cooking equipment |
SKU Code | EP7A6QI40 |
Specification data - Built-in gas hobs
Classification data | |
Hob arrangement | Five burner gas hob with one 1 kW economy burner front left, one 1.75 kW burner rear left, one 4 kW wok burner front centre , one 3 kW high-speed burner rear right and one 1.75 burner front right. |
Hob control | Removable metal sword knobs. |
Material and finish | Black tempered glass. |
Dimensions | |
Width (maximum) | 752 mm. |
Depth (maximum) | 520 mm. |
Type of gas | Natural. Guidance for specification option: H/E/(L) 20 (25) mbar. |
Gas connection | Factory set for connection to mains gas. |
Electrical supply | 220–240 V. |
Features | Cast iron pan supports. |
Frequency | 60; 50 Hz. |
Fuse rating | 3 A. |
Cable length | 100 cm. Manufacturer guidanceLength electrical supply cord. |
Rating | 11.5 kW. Manufacturer guidanceGas connection rating. |
Accessories | Not required. HZ9SE060: Six pieces set. HZ9SE040: Four pieces set. HZ32WA00 Wireless food thermometer. HZ298114: Small pot support. HZ298107: Wok ring. HZ298105: Simmer plate. |
Sustainability data
Material | Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
