68 mm circular downpipe
BSI Kitemark
Certificate type
PVC-U, suitable for use with Deepflow, Clip-master, Flowline and Classic gutter systems.
Description

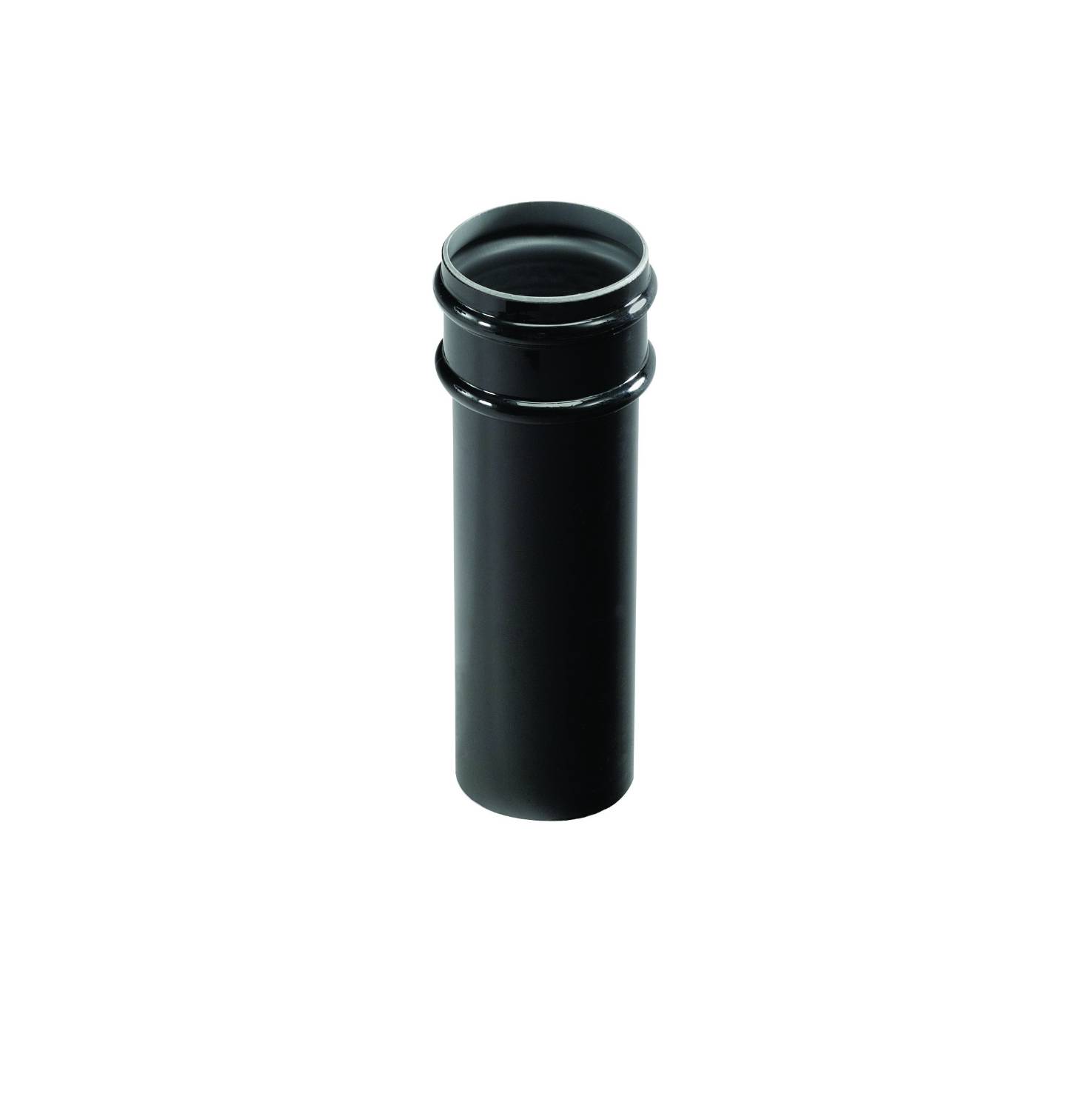

Marley 68 mm circular downpipe, with the distinctive 'Marley' socket, is suitable for use with Deepflow, Clip-master, Flowline and Classic gutter systems.
General information
Material | PVC-U |
CAWS | R10/35 PVC-U pipework R10/420 PVC-U pipework - external |
Product range |
Specification data
Product Reference | 68 mm circular downpipe |
System colour | BlackBrownGreyWhite |
Pipes | Length 2500 mm, RPH2525Length 3000 mm, RPH253Length 5500 mm, RPH2555Contractor's choice |
Fittings | - |

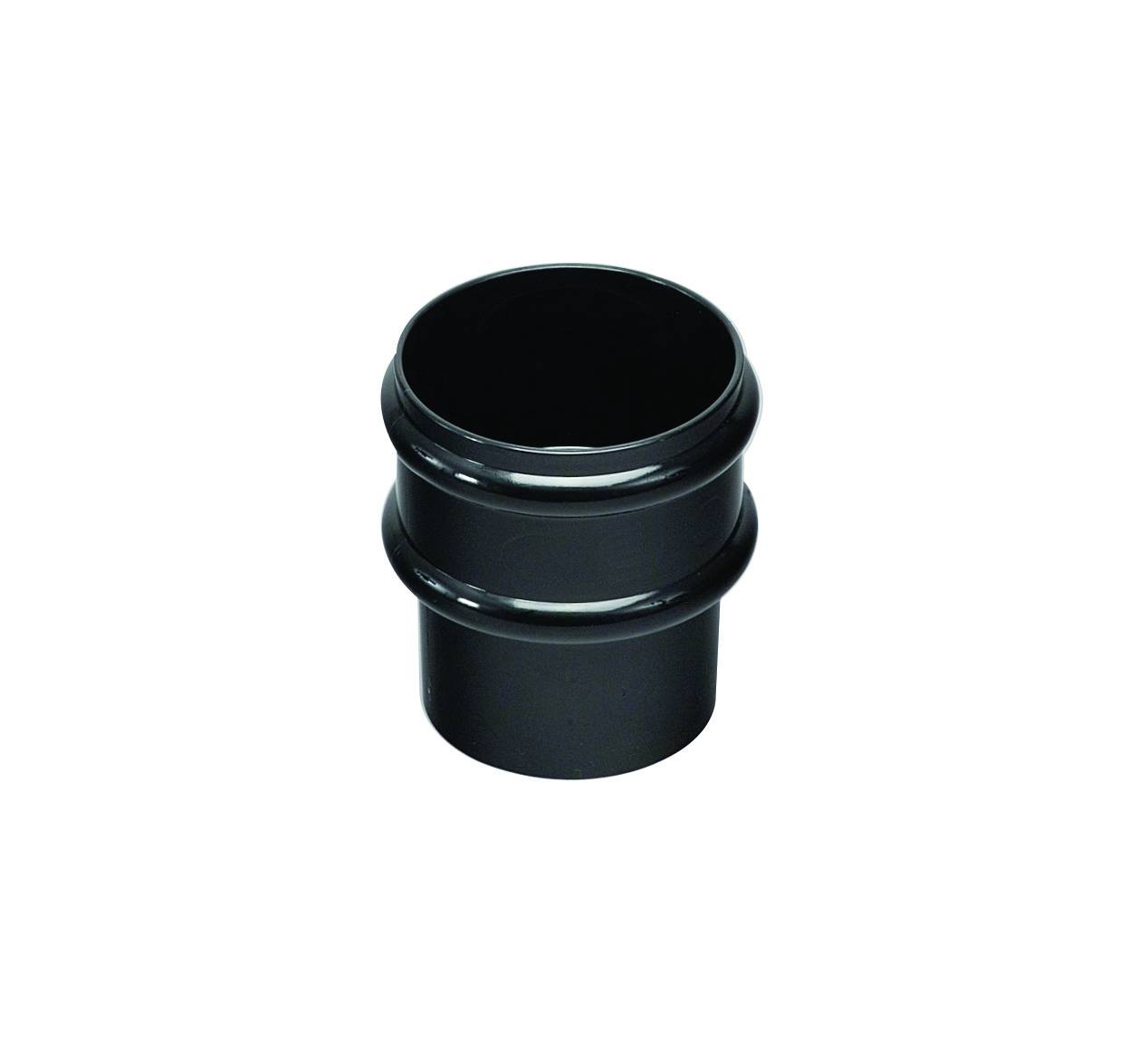

Pipe sockets | Loose, RL25For loose jointing to cut pipe. Ring seal solvent, RLR25Contractor's choice |
Bends and offsets | None87.5° bend, RB25167.5° bend, RB25245° bend, RB25367.5° offset bend, solvent weld, socket/ socket, RNA25020° offset bend, socket/ socket, RNE252For use with RNE253 in 25 mm offset construction. 20° offset bend, socket/ spigot, RNE253For use with RNE252 in 25 mm offset construction. 67.5° offset bend, push fit, RNE255Contractor's choice |
Branches | None67.5°, RY252Contractor's choice |
Access pipes | NoneRef RF25Contractor's choice |
Shoes | NonePlain, RS25Contractor's choice |
Hoppers | NoneRectangular, 68 mm diameter outlet, RH25Available in black only. Dual spigot outlet, RH252Contractor's choice |
Pipe clips | One piece, RCZ253Socket, RC251Ref RC252Backplate, RCB300For use with RC251 socket clip or RC252 pipe clip. Extension backplate, RT200For use with RC251 socket clip or RC252 pipe clip. Nuts and bolts 20 mm x 6 mm, RNB11Contractor's choice |
Accessories | NoneAdaptor, rainwater pipe to 110 mm drain, RA42Rain diverter, RD25RReducer, 110 mm to 68 mm, RRM425Reducer, 82 mm to 68 mm, SRM325Contractor's choice |
Standard product features | Material: PVC-U. |
Third party certifications
- Certificate: Kitemark, to BS EN 12200 : Licence number KM 511253
