Description

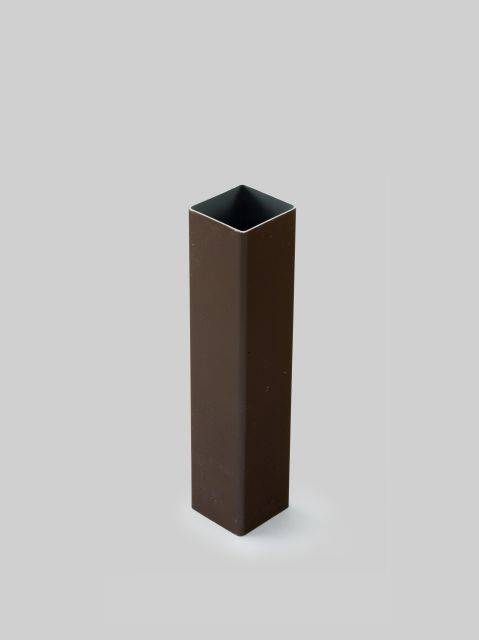

Marley 65 mm square downpipe is designed primarily for use with Flowline and Classic gutter systems, but can be used in conjunction with hopper heads using an adaptor.

General information
Specification data
Product Reference

65 mm square downpipe

System colour

Black

Brown

White

Pipes

Length 3000 mm, RPE3

Length 5500 mm, RPE2555

Contractor's choice

Fittings -
Pipe sockets

With fixing lugs, RLE1

Plain, RLE11

Contractor's choice

Bends and offsets

None

67.5° Offset bend RBE1

87.5° Offset bend RBE3

Offset, 50 mm projection, RNE1

Contractor's choice

Branches

None

67.5°, RYE1

Contractor's choice

Access pipes

None

Ref RFB91

Contractor's choice

Shoes

None

With fixing lugs, RSE1

Without fixing lugs, RSE2

Contractor's choice

Hoppers

None

Rectangular, 68 mm diameter outlet, RH25

For use with RLE3 outlet adaptor and RLE11 pipe socket. Available in black only.

Dual spigot outlet, RH252

Contractor's choice

Pipe clips

One piece, ref RCE1

Ref RCE2

One piece stand off, ref RCE3

Backplate, ref RCB300

For use with RCE2 pipe clip.

Extension backplate ref RT200

For use with RCE2 pipe clip.

Contractor's choice

Accessories

None

Adaptor, rainwater pipe to 110 mm drain, RA42

Drain adaptor, 65 mm square socket to 68 mm circular spigot, RLE2

Drain adaptor, 65 mm square socket to 68 mm plain ended pipe, RLE4

Outlet adaptor, RLE3

For use with RLE11 pipe socket to connect RH25 rainwater hopper.

Contractor's choice

Standard product features

Material:

PVC-U.

Third party certifications
  • Certificate: Kitemark, to BS EN 12200 : Licence number KM 511253
