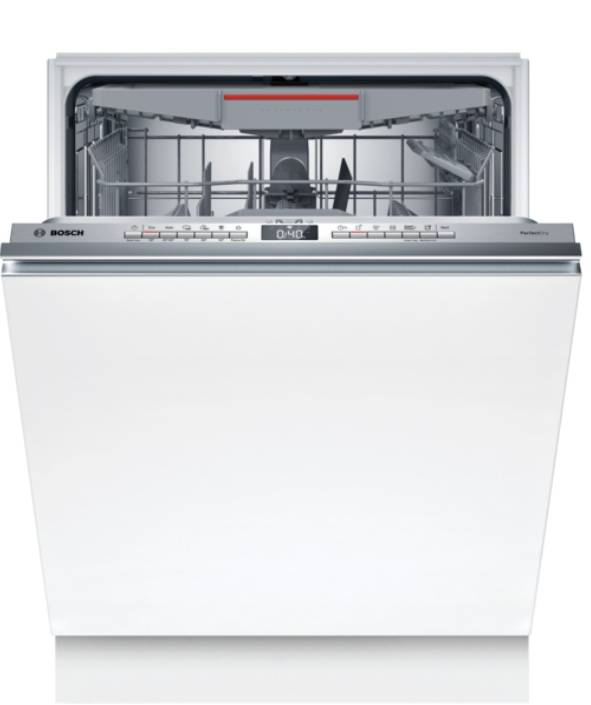

60cm Fully Integrated Dishwasher

Verified by manufacturer 22 hours ago

Bosch Home Appliances

Fully-integrated dishwasher, 60 cm.

Jump to:
BOS
 0344 8929021 Website

Application

For domestic applications.

Description

Fully integrated, energy label A dishwasher, 60 cm.


PerfectDry Zeolith, six programmes, flex baskets, VarioDrawer, EfficientDry, five options, TimeLight, 44 dB, 9.5 L, 14 place settings.


Features and benefits:

  • PerfectDry: drying results with low energy consumption, even for hard-to-dry items.
  • Intelligent Programme: individually adapts the washing and drying cycle based on your feedback.
  • Extra clean zone: extra cleaning for items in your top basket.
  • TimeLight: program status and remaining time clearly displayed on floor in high resolution.
  • Home Connect: home appliances with smart connectivity.

General information

Color

White

Shape

Rectangle

Length

550 mm

Width

598 mm

Height

815 mm

Warranty description

Five year

Uniclass

Pr_40_70_21_24 Domestic dishwashersPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Domestic dishwashers

Installation

Integrated.

Arrangement

Full sized (14 place settings).

Material and finish

White.

Dimensions

-

Height (maximum)

815 mm.

Width (maximum)

598 mm.

Depth (maximum)

550 mm.

Electrical supply

220–240 V, 50/60 Hz.

EU energy label rating (minimum)

A.

Water consumption (maximum)

9.5 L.

Cleaning performance

A.

Noise level at 1 m (maximum)

44 dB(A).

Programmes

-

Number (minimum)

Eight.

Wash temperatures

Eco 50°C, Auto 45–65°C, Intelligent 40°C,
Intensive 70°C, Express 60°, Glass 40°C, Silence 50°C,
Favourite.

Features

Default favourite programme: Pre-rinse.
Four special options: Remote start, Extra dry, Half load,
SpeedPerfect+.
Add-on functions via Home Connect app: Hygiene+, Silence on demand.
Machine care.

Special features

Max Flex basket system with red coloured touchpoints.
Vario drawer - loading of cutlery on 3rd level.
Three stage Rackmatic height-adjustable top basket.
Smooth running wheels on upper basket, low friction wheels on bottom basket.
Anti-slip protection strips in upper basket.
Rack Stopper to prevent derailing of bottom basket.
Two foldable plate racks in top basket, six foldable plate racks in bottom basket.
Upper rack cup shelf, lower rack cup shelf.
Touch Control (metallic) and push button top edge controls.
TimeLight - Light projection on the floor.
DoorOpen Assist.
Time delay (3, 6 or 24 hours).
Acoustic end of cycle indicator.
ChildLock - double push to open.
AquaStop.
Self-cleaning filter system with three piece corrugated filter.
Steam protection plate.
Stainless steel interior.

Accessories

None.

SGZ0BI01: Decorative strips stainless steel 81.5 cm.

SGZ1010: Inlet and outlet hose extension.

SGZ8BI00: Connection rail for divided furniture.

SMZ1051EU: Extension cable for EU-plug.

Show more

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Literature

Series 6, Fully-integrated dishwasher, 60 cm SMD6YCX01G

Series 6, Fully-integrated dishwasher, 60 cm SMD6YCX01G
