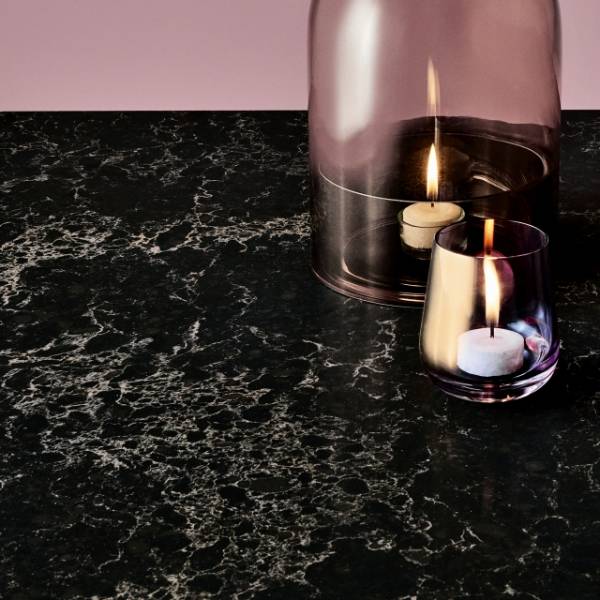

5100 Vanilla Noir - Engineered Mineral Surface

Verified by manufacturer 4 days ago

13 mm-thick

Caesarstone UK Variant:

Engineered mineral surfaces.

Jump to:
BOS
 0208 216 6100 Website

Application

Suitable for worktops, kitchen islands, splashbacks, vanity tops, bathrooms, bar counters, bar tops, serveries, reception desk, table top, furniture and desk top.

Description

Engineered mineral surfaces suitable for use in residential and commercial projects.


Features and benefits:

  • Durable.
  • Scratch and stain resistant.
  • Heat resistant.
  • Resistant to household chemicals, acids and solvents.
  • Mould and mildew resistant.
  • Non-porous and non-absorbent.
  • Suitable for a wide range of different design applications; consult manufacturer for details.
  • Low maintenance - no sealing or waxing required, suitable for cleaning with regular detergents.

General information

Finish

Polished

Material

Mineral

Shape

Rectangle

Length

3040 mm

Width

1440 mm

Height

20 mm

30 mm

Warranty description

Ten year

Guidance for specification option:

Commercial applications.

Lifetime

Uniclass

Pr_40_30_30_96 WorktopsPrimary

Ss_40_25_20/510 Purpose made furniture

Pr_40_20_76_95 Vanity and washroom furniture
Pr_40_50_21_60 Office tables
Pr_40_30_30_18 Countertops
Pr_40_30_30_45 Kitchen splashbacks

CAWS

N12/440 Purpose-made

N12/440 Purpose-made

N12/320 Worktops

N10/125 Desks and tables

N10/160 Shelving systems

N10/145 Vanity and washroom furniture

N10/200 Worktops

N11/340 Worktops

N11/370 Shelving

N12/320 Worktops

N10/110 Purpose-made

N11/380 Purpose-made units

N10/15 Desks and tables

N10/30 Shelving systems

N11/20 Worktops

N10/10 Purpose-made

Product range

Vanilla Noir
Quartz

Specification data - Worktops

Material

Mineral.

Guidance for specification option:

Natural quartz aggregates (up to 93%), organic pigments and enhanced polymer resins.

Dimensions

-

Plan size

1440 x 3040 mm.

Thickness

13 mm.

Exposed edges

-

Profile

Bevel.

Bullnose.

Double bevel.

Double bullnose.

Double eased.

Double half bullnose.

Eased.

Full bevel.

Half bullnose.

Mitre.

Ogee.

Semi bullnose.

Triple bullnose.

Triple ogee.

Upstands

-

Finish

Not applicable.

As worktop.

Height

-

Manufacturer guidance

Insert requirements or omit.

Cutouts

-

Manufacturer guidance

Insert requirements or omit.

Integral accessories

-

Manufacturer guidance

Insert requirements or omit.

Colour

5100 Vanilla Noir.

Weight

126–134 kg (28–31 kg/m²).

Water absorption

To ASTM C97, ≤0.05%.

Density

To EN 14617-1, ≥2.1 g/cm³.

Flexural strength

To EN 14617-2, >40 MPa; To ASTM C880, >35 MPa.To EN 14617-12, Class A.

Dimensional stability

To EN 14617-12, Class A.

Impact resistance

To EN 14617-9, >4.9 L (J).

CompressiveStrength

To EN 14617-15, 157-243 MPa; To ASTM C170, 219-299 MPa (Dry); 203-274 MPa (Wet).

Abrasion resistance

To ASTM C1243, Volume of chord V<130 mm³; To EN 14617-4, Groove length <25 mm.

Freeze-thaw resistance

To ASTM C1026, No obvious damage after 20 freeze-thaw cycles.

Linear thermal expansion coefficient

To EN 14617-11/ASTM 372, 52 x 10-6 per °C.

Manufacturer guidance

Linear thermal expansion.

ThermalConductivity

To EN 12664, <1 W/m∙K.

Thermal shock resistance

To EN 14617-6, No visual defects after 20 cycles.

Water resistance

To NEMALD3-3.5, No effect.

Manufacturer guidance

Boiling water resistance.

Temperature resistance

To NEMALD3-3.6, No effect.

Manufacturer guidance

High temperature resistance.

Surface

To ASTM E84, Class A - FSI: 0-25; SDI: 0-450.

Manufacturer guidance

Surface burning.

Fire classification

To EN 13501-1, B-s1,d0 (wall cladding); Bfl-s1 (flooring and stairs).

Fire performance

To AS 1530.3:1999, Ignitability Index (0-20): 6-8; Spread of Flame Index (0-10): 0-3; Heat Developed Index (0-10): 2-3; Smoke Developed Index (0-10): 6-7.

Chemical resistance

EN 14617-10, Class C4.

Resistance

To ANSIZ 124.6, Pass.

Manufacturer guidance

Stain resistance.

Stone type

Polished.

Sustainability data

Contains Red List materials

No

Material

Mineral

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit

Revit 2017
