5038 Lugano
Verified by manufacturer today
EPD
Certificate type
Certificate of Compliance
Certificate type
Stainless steel lever handle.
Application
Commercial buildings, administrative centres and superior quality residential developments.
Description
Stainless steel lever handle.
Features and benefits:
- Satin stainless steel surface.
- Lever handle length 135 mm, Ø 22 mm.
- Projection 58 mm.
- Prepared for fixed mobile mounting with easyfix.
- Steel galvanized square spindle.
- 16-mm Glutz glide bearing, tested to 2.5 million cycles.
Options:
16-mm twin bearing with easyfix (fixed mobile).
To achieve usage class 4 in accordance with EN 1906, a 9-mm steel or 8-mm stainless steel square spindle is needed.
Approved with corresponding panic lock as emergency exit lever handle in accordance with EN 179.
General information
Color | Silver Guidance for specification option: LRV is between 44-45. Other Guidance for specification option: Can be polyester powder coated to any RAL colour. A range of PVD colours are also available. |
Finish | Satin |
Material | Stainless steel |
Shape | Other |
Length | 135 mm |
Width | 23 mm |
Height | 58 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/38 Lever handles P21/610 Lever handles |
SKU Code | 207097 |
Specification data - Door lever handle sets
Classification data | |
Standard | To BS EN 1906. |
Classification grades (minimum) | |
Category of use | 4. |
Durability | 7. |
Door mass | No requirement. |
Fire resistance | B. |
Safety | 1. |
Type of operation | U. |
Size | 22 mm diameter. |
Material and finish | Satin stainless steel surface. |
Colour | Silver. |
Mounting | 16 mm guide for Glutz glide/ easyfix. |
Execution | 00 Female half-set. 10 Male half-set. 50 Pair. |
Guides | 0 glide bearing. 1 twin glide bearing. |
Spindle | 80 - 8 mm. 85 - 8.5 mm. 90 - 9 mm. Spindle, 0 - Without. Spindle, 1 - Galvanized. Spindle, 2 - Staineless steel. |
Spindle length | Not applicable. 06 - 84 mm. 12 - 109 mm. 17 - 130 mm. 99 - On request. |
Surface | 00 Stainless steel matt. 11 Stainless steel polished. 44 Antibacterial. 51 RAL 9005 black matt. 99 On request. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Manufacturing plant location | |
Material | Stainless steel |
Recyclability | 61 |
Expected Life | 25 year |
Product certifications
Product certifications
Literature

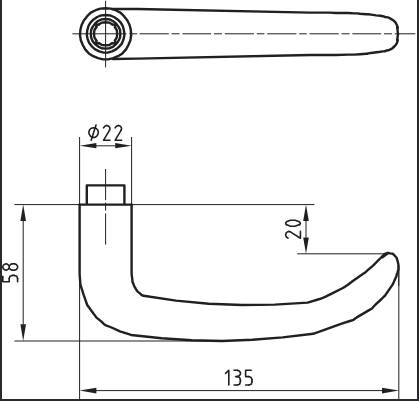

5038 Handle Drawing
