5 mm PVC Pad for Paving and Decking - paving and decking support pad

Verified by manufacturer 4 months ago

Wallbarn Ltd

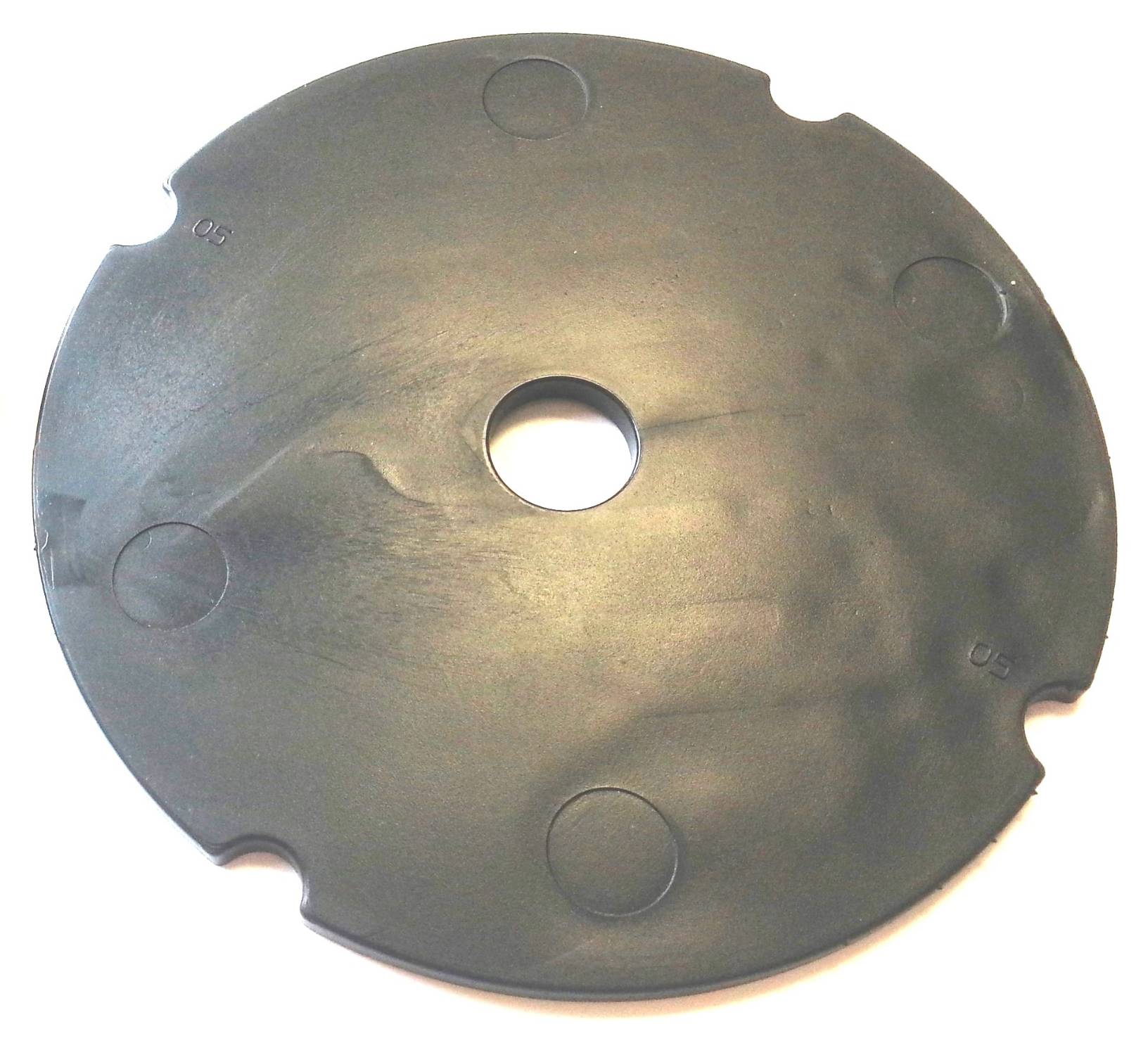

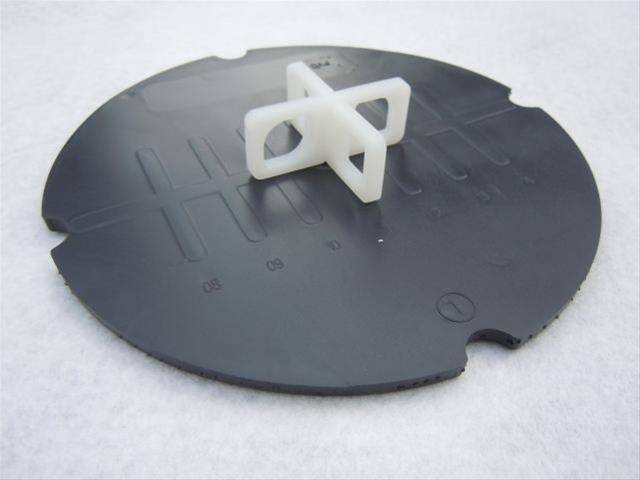

5 mm PVC discs for low clearances used in conjunction with loose fitting cross spacers.

Jump to:
BIM object icon
+44 (0)20 8916 2222 Website

Application

  • To raise paving slabs off the deck to improve drainage and prevent damage to membranes.
  • For use in areas very a very low clearance is required.
  • Solid polyvinyl chloride (PVC) disc.
  • Suitable for softer membranes.

Description

5 mm PVC discs for low clearances used in conjunction with loose fitting cross spacers.


Features and benefits:

  • Tough and flexible.
  • Very high weight tolerance.
  • Offers superior sound and vibration qualities, particularly suitable for residential applications.
  • Good levels of elasticity and will not slip on the surface beneath during installation.
  • Soft profile, rounded edges and flexible makeup will not dig into surface.
  • Anti-vibration properties.
  •  PVC discs designed for areas with restricted height thresholds to raise paving or decking off the surface but still offer sufficient drainage.
  • Can support 800 kg loads.
  • No integrated lug / separator.

General information

Color

Black

Finish

Gloss

Material

Polyvinyl chloride (PVC)

Polyvinyl chloride

Shape

Circle

Length

150 mm

Width

150 mm

Height

5 mm

WarrantyDescription

Limited warranty for temperature and weight tolerance if installed for the correct purpose and within the recommended guidelines - see Wallbarn terms & conditions of supply

15 year

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

J21/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/377 Support system for paving slabs or tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Product range

Pedestals

Specification data - Decking and paving pedestals

Grade

800 kg.

Material

PVC.

Cross spacers

3 mm wide.

4 mm wide.

5 mm wide.

Lugs

10 x 2 mm.

Standard.

10 x 4 mm.

Standard.

20 x 2 mm.

Standard.

20 x 4 mm.

Standard.

20 x 6 mm.

Show more

Levelling shims

Not required.

1 mm.

2 mm.

2.5 mm shock absorbing rubber shim.

3 mm.

Show more

Dimensions

Height: 5 mm; Diameter: 150 mm.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

90%

Recycled content

75 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

3

Revit
-

3

Literature

Adjustable Pedestals for Paving, decking and rail system substructure Brochure

Adjustable Pedestals for Paving, decking and rail system substructure Brochure

REACH Statement for PVC

REACH Statement for PVC
