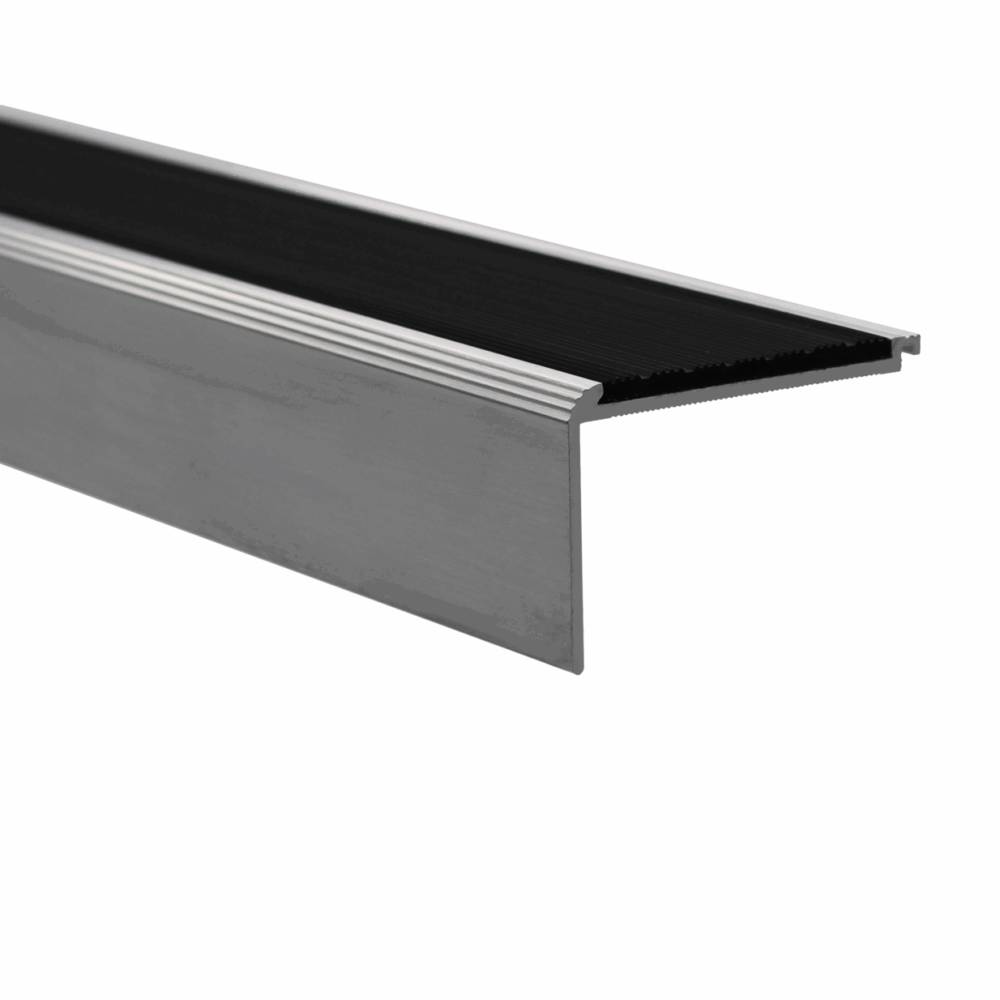

5 mm Gauge Aluminium Stair Nosings with Carborundum Insert - Aluminium Stair Nosings
Verified by manufacturer 1 day ago
MS1-CG - Square Profile - 40 x 61.5 mm
MS1-CG - Square Profile - 40 x 61.5 mm
Alcumus SafeSupplier
Certificate type
Certificate of Conformity
Certificate type
5 mm gauge aluminium stair nosing range.
Application
Suitable for use internally on stair edges in light to heavy foot traffic applications.
Description
A range of 5 mm gauge aluminium stair nosing in a range of profiles with either PVC or aluminium inserts.
Features and benefits:
- Range of profiles.
- 5 mm gauge.
- Helps stairs comply to building regulations and British Standards recommendations.
- Ridges PVC, ridged aluminium, and CarbiGrip Carborundum infills.
- Multiple lengths available.
- Optional finishes including mill, satin, and anodized.
- Available pre-drilled for fixing.
General information
Color | Silver Other |
Finish | Textured |
Material | Aluminium Carborundum |
Shape | Rectangle |
Length | 1000 mm 1500 mm 2000 mm 2750 mm Bespoke |
Width | 30 mm 61.5 mm 71 mm |
Height | 5 mm 40 mm 55 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M51/550 Stair nosings and trims M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims |
SKU Code | MS1 |
Specification data - Rigid stair nosings
Classification data | |
Product reference | 5 mm Gauge Aluminium Stair Nosings with PVC or Aluminium Inserts. |
Profile | Square. Guidance for specification option: MS1. |
Base section | |
Material | Aluminium. |
Finish | Milled. Satin. Anodized. Guidance for specification option: (Black). |
Size | |

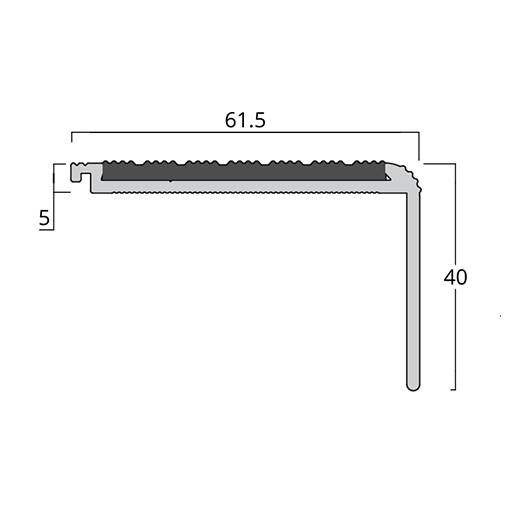

Rise x going | 40 x 61.5 mm. |
Gauge | 5 mm. |
Inserts | |
Material | CarbiGrip. Guidance for specification option: (Carborundrum). |
Colour | Obsidian. Guidance for specification option: CarbiGrip colour option.
Graphite. Guidance for specification option: CarbiGrip colour option.
Pebble. Guidance for specification option: CarbiGrip colour option.
Chalk. Guidance for specification option: CarbiGrip colour option.
Amber. Guidance for specification option: CarbiGrip colour option.
Hazelnut. Guidance for specification option: CarbiGrip colour option.
Chestnut.. Guidance for specification option: CarbiGrip colour option.
Speckled obsidian. Guidance for specification option: CarbiGrip colour option.
Speckled graphite. Guidance for specification option: CarbiGrip colour option.
Speckled pebble. Guidance for specification option: CarbiGrip colour option.
Italian marble. Guidance for specification option: CarbiGrip colour option.
Portland stone. Guidance for specification option: CarbiGrip colour option.
|
Accessories | Not required. Pre-drilled fixing holes. |
Length | 1000 mm. Guidance for specification option: As standard. 1500 mm. Guidance for specification option: As standard. 2000 mm. Guidance for specification option: As standard. 2750 mm. Guidance for specification option: As standard. Bespoke. Guidance for specification option: Optional. Consult manufacturer and insert requirements. |
Slip resistance | CarbiGrip insert: +90 TRL (Dry), +80 TRL (Wet). |
Sustainability data
Material | Aluminium Carborundum |
Product certifications
Certification type
Alcumus SafeSupplier
Alcumus SafeSupplier
Certificate of Conformity
Made in Britain
