Description

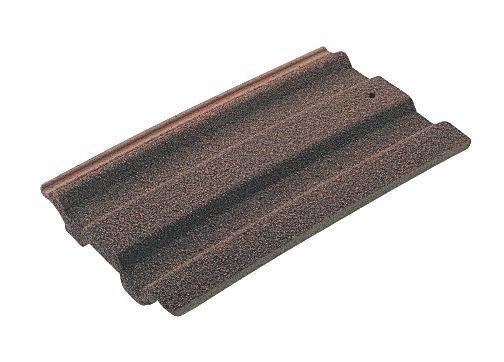

Compact and visually appealing interlocking cambered concrete tile. It is easy to handle and install so offers both speed and economy as a roofing material. Available in a range of attractive colours.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 17.5–24.9° through coloured and 22.5–29.9° granular: 100 mm; ≥25° through coloured and ≥30° granular: 75 mm.
  • Maximum: 125 mm.

Features:

  • Unique camber adds both strength and aesthetic appeal.
  • Smaller format for lighter unit weight and easier handling.

General information
Finish

Dependent upon colour

Material

Concrete with a PVC ventilation unit and cap

Shape

Rectangular

Size

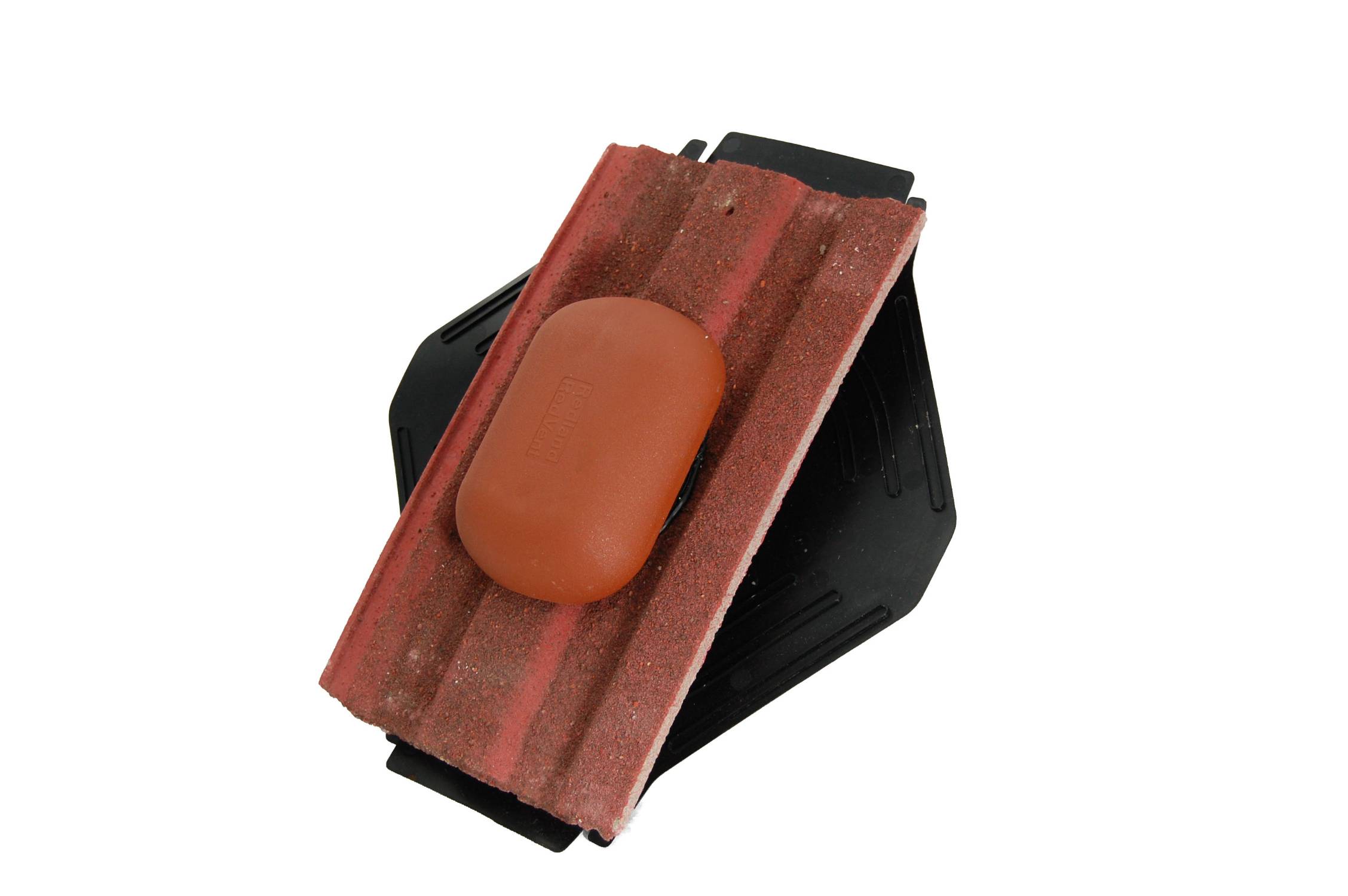

180 x 120 x 175 mm (vent)

WarrantyDescription

Roof Component eligible for a 15 year SpecMaster design liability and weathertightness guarantee when used as part of a full Redland SpecMaster project

Uniclass 2015
Concrete interlocking tiles (Pr_25_93_72_17)Primary
Specification data - Concrete interlocking tiles
Product Reference

Redland 49 Tile - 1101

Colour

Antique red (03)

Plain finish.

Breckland brown (52)

Plain finish.

Brown (02)

Granular finish.

Farmhouse red (39)

Plain finish.

Rustic red (78)

Coated finish.

Slate grey (30)

Plain finish.

Terracotta (34)

Plain finish.

Tudor brown (36)

Plain finish.

Standard product features

Size:

382 x 226 mm.

Pitch:

  • Minimum: Through coloured: 17.5° (100 mm headlap), 25° (75 mm headlap); Granular: 22.5° (100 mm headlap), 30° (75 mm headlap).
  • Maximum: 90°.

Gauge:

  • Minimum: 257 mm.
  • Maximum: Through coloured: 282 mm (<25°), 307 mm (≥25°); Granular: 282 mm (<30°); 307 mm (≥30°).

Linear cover:

200 mm.

Covering capacity:

16.3 tiles per m².

Weight (at maximum gauge):

46 kg/m².

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2015 5 1.3
Download now from NBS National BIM Library
