Description

Classic single pantile shape in a modern interlocking concrete format that guarantees robust, weathertight performance in all conditions.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 17.5–22.4°: 100 mm; ≥22.5°: 75 mm.
  • Maximum: 125 mm.

Features:

  • Gentle curve for soft yet distinctive effect.
  • Economical concrete alternative to clay.
  • Range of seven classic colours.
  • Recessed front for a slim leading edge appearance.

General information
Finish

Dependent upon colour

Material

Concrete with a PVC ventilation unit and cap

Shape

Rectangular

Size

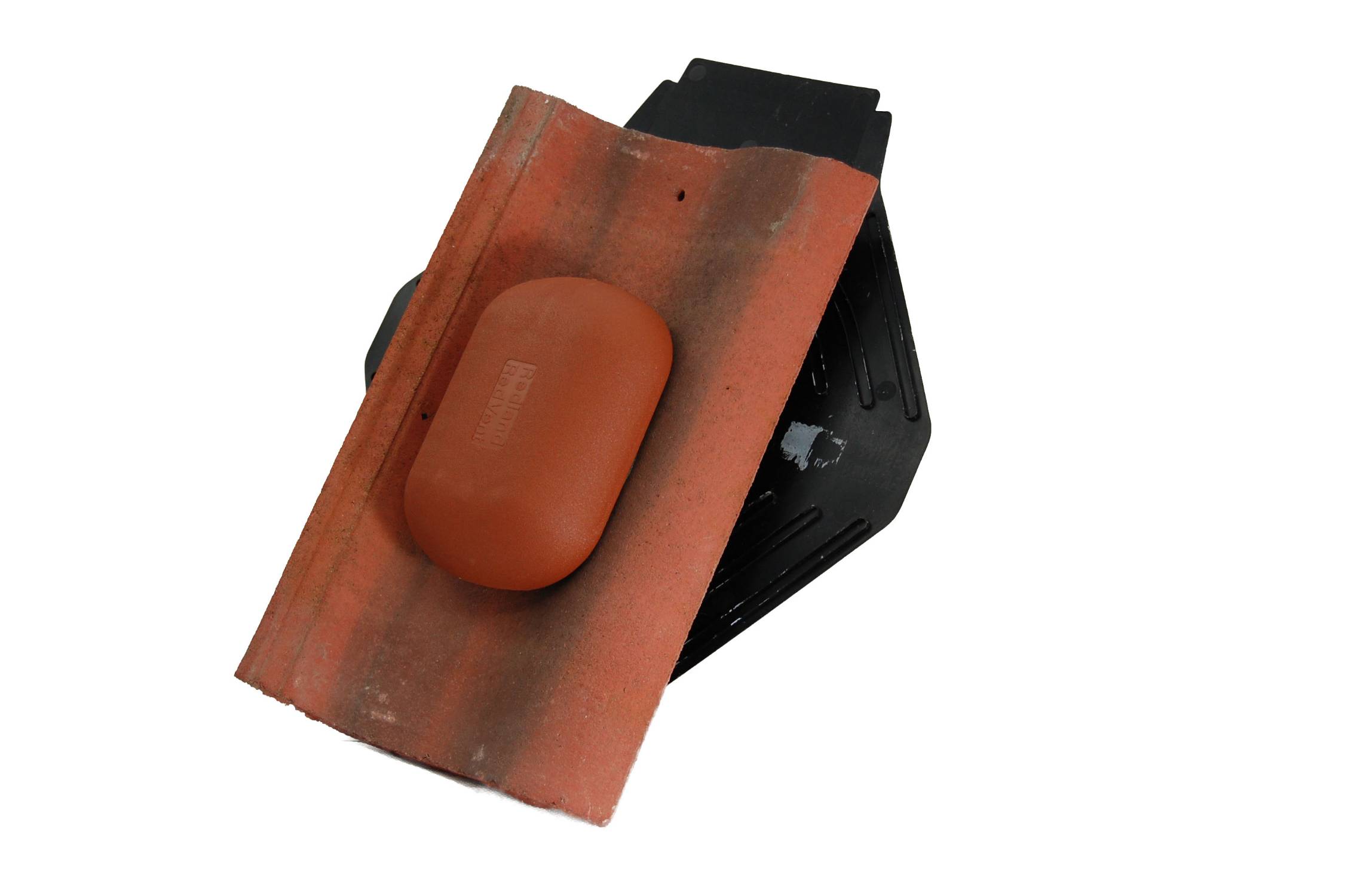

180 x 120 x 175 mm (vent)

WarrantyDescription

Roof Component eligible for a 15 year SpecMaster design liability and weathertightness guarantee when used as part of a full Redland SpecMaster project

Uniclass 2015
Concrete interlocking tiles (Pr_25_93_72_17)Primary
Specification data - Concrete interlocking tiles
Product Reference

Fenland Pantile - 5121

Colour

Black (63)

Coated.

Breckland brown (52)

Farmhouse red (39)

Slate grey (30)

Terracotta (34)

Tudor brown (36)

Standard product features

Size:

381 x 227 mm.

Pitch:

  • Minimum: 100 mm headlap: 17.5°; 75 mm headlap: 22.5°.
  • Maximum: 90°.

Gauge:

  • Minimum: 256 mm.
  • Maximum: <22.5°: 281 mm; ≥22.5°: 306 mm.

Linear cover:

200 mm.

Covering capacity:

16.3 tiles per m².

Weight (at maximum gauge):

45 kg/m².

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
Revit
Revit 2015 5 1.3
