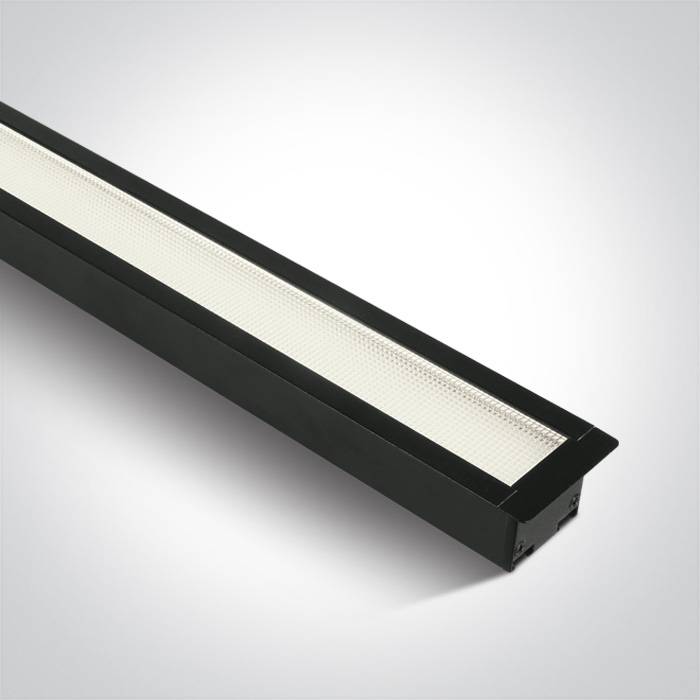

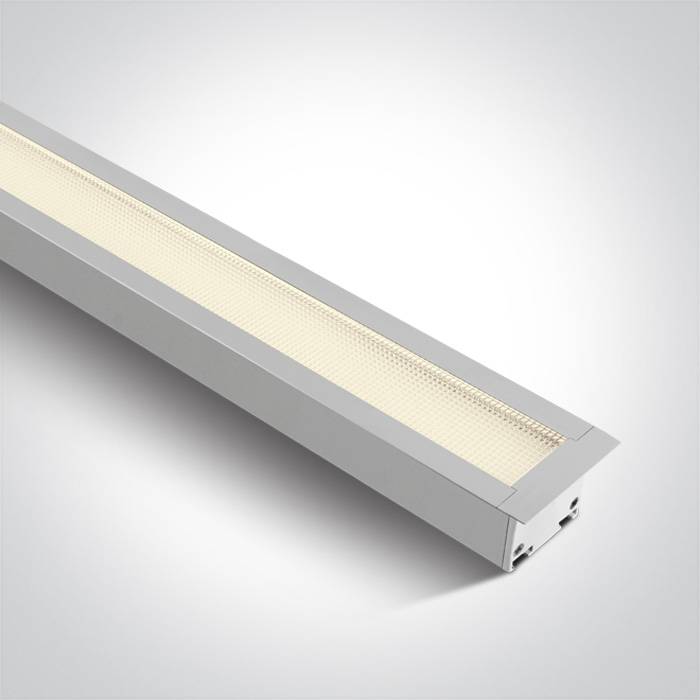

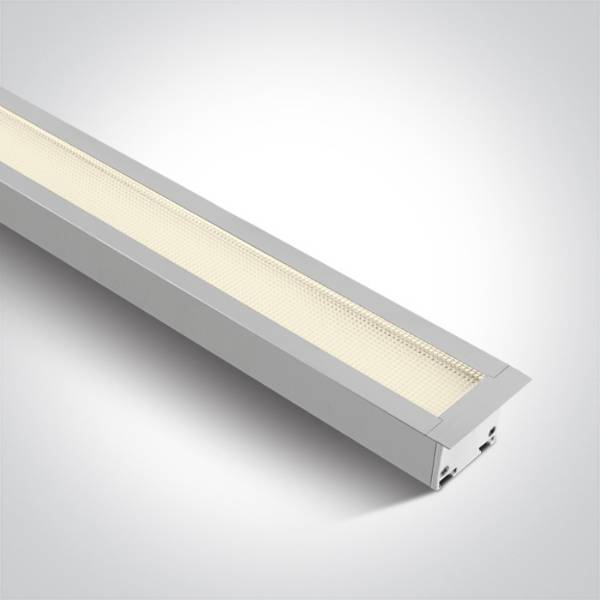

40W Recessed Linear System with UGR19 Diffuser Surface 38145AR - Ceiling Luminaire

Verified by manufacturer 5 months ago

38145AR/W/W white 40 W UGR19 recessed linear system with diffuser surface, suspended 3000 K

One Light UK Ltd Variant:
Third party certifications:
  • DBI Certification - CE Marking (EAD 350141-00-1106)

    DBI Certification - CE Marking (EAD 350141-00-1106)

    Certificate type

40 W UGR19 linear ceiling lights for indoor installation, recessed mounting.

Jump to:
01992-445-101 Website

Application

Ceiling lights for indoor installation, recessed mounting. Particularly suited for offices.

Description

40 W UGR19 linear ceiling lights for indoor installation, recessed mounting.


Features and benefits:

  • Complies with EN 60598-1 and any other specific standards.
  • Complete with 1000 mA driver, fixing clips, connectors and end cups.
  • IP20.
  • 3000 or 4000 K.
  • Two housing colours.
  • Also available as surface/ suspended models (specified separately).

General information

Color

White

Black

Material

Aluminium

Guidance for specification option:

Housing.

Shape

Rectangle

Length

1210 mm

Width

50 mm

Height

55 mm

Warranty description

Three year

Uniclass

Pr_70_70_48_71 Recessed luminairesPrimary

CAWS

V90/510 Luminaires

V90/510 General purpose luminaires

Specification data - Recessed luminaires

Standards

To EN 60598-1.

Guidance for specification option:

And any other specific standards; consult manufacturer for details.

Luminaire description

Rectangular recessed ceiling light with built-in LED and white housing.

Guidance for specification option:

3000 mm-long cable.

Epistar SMD 2835 LED as standard.

Classification

-

Ingress protection (minimum)

IP20.

Circumstances of use

Normal.

Guidance for specification option:

Indoor use.

Controlgear position

Manufacturer's standard.

Guidance for specification option:

Integral within luminaire as standard. Consult manufacturer for details if DALI driver is required (see Accessories).

Nominal voltage

220–240 V a.c.

Guidance for specification option:

50/ 60 Hz.

Luminaire power factor

Correct to minimum 0.9 lagging.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

85 lm/W.

Wattage

40 W.

Colour temperature

3000 K.

Colour rendering index (Ra)

90.

Beam angle

Manufacturer's standard.

Guidance for specification option:

Fixed.

Dimming protocol

Manufacturer's standard.

Guidance for specification option:

Dependent on driver specified; see Accessories.

Accessories

None.

050170 suspension kit.

050170C/B black corner section.

DALI driver.

Guidance for specification option:

Consult manufacturer for details.

Output

3800 lm.

Guidance for specification option:

At 700 mA.

Third party certifications

DBI Certification - CE Marking (EAD 350141-00-1106)

DBI Certification - CE Marking (EAD 350141-00-1106)

DECLARATION OF CONFORMITY 38145AR
