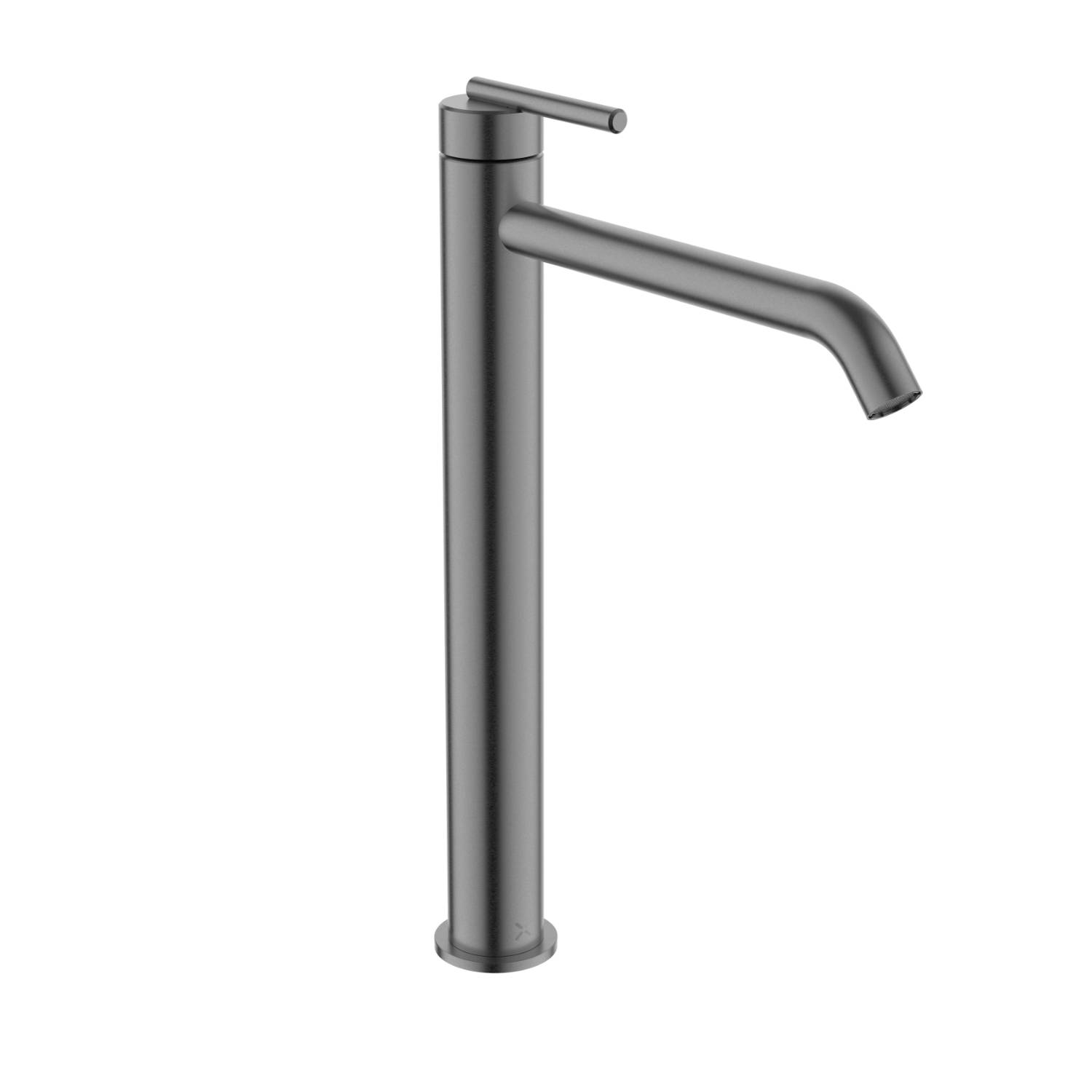

3ONE6 Tall Basin Mono - Basin Tap

Verified by manufacturer 3 months ago

TS112DNS - Stainless Steel

CROSSWATER Variant:

Stainless steel tall monobloc basin tap without pop-up waste.

Jump to:
BOS
01322422743 Website

Application

Suitable for deck-mounting in basin areas.

Description

A stainless steel basin tap with lever.


316 grade stainless steel is:

  • Durable.
  • Increasingly resistant to corrosion and heat.
  • Hygienic, non-toxic, and antibacterial.
  • Recyclable.
  • Clean-free.
  • For single lever mixers the design allows for easy mixing of hot and cold water to achieve the desired temperature.
  • Requiring a single mounting hole makes it easier to install compared to taps that require separate holes for hot and cold water controls.
  • Moving the handle up or down adjusts the flow rate, while moving it left or right adjusts the temperature mix.
  • Our basin mixers use ceramic disc cartridges, which provide smooth operation and excellent durability.
  • With fewer separate components basin monobloc taps are generally easier to clean and maintain
  • Designed to work with above-counter basins or vessel sinks that sit higher than traditional recessed basins. The taller spout allows for easier access to the water flow.

General information

Color

Silver

Gold

Grey

Finish

Brushed

Stainless steel

Brass

PVD

Material

Stainless steel

Shape

Other

Length

219 mm

Manufacturer guidance

Depth.

Width

45 mm

Height

311 mm

Warranty description

15 year

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin thermostatic water supply sets

Standards

To BS EN 817.

Form

Lever operated thermostatic mixer taps.

Materials

-

Body

Stainless steel.

Guidance for specification option:

Grade 316.

Finish and colour

Stainless Steel.

Flow rate (maximum)

5.45 L/minute at 3 bar.

Integral accessories

Restrictor.

Guidance for specification option:

Supplied.

Spout projection

190 mm.

Height

311 mm.

Width

45 mm.

Depth

219 mm.

Weight

1.45 kg.

Flow regulator

Cache M16x1.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
