3ONE6 Basin 3 Hole Set

Verified by manufacturer 3 months ago

CROSSWATER

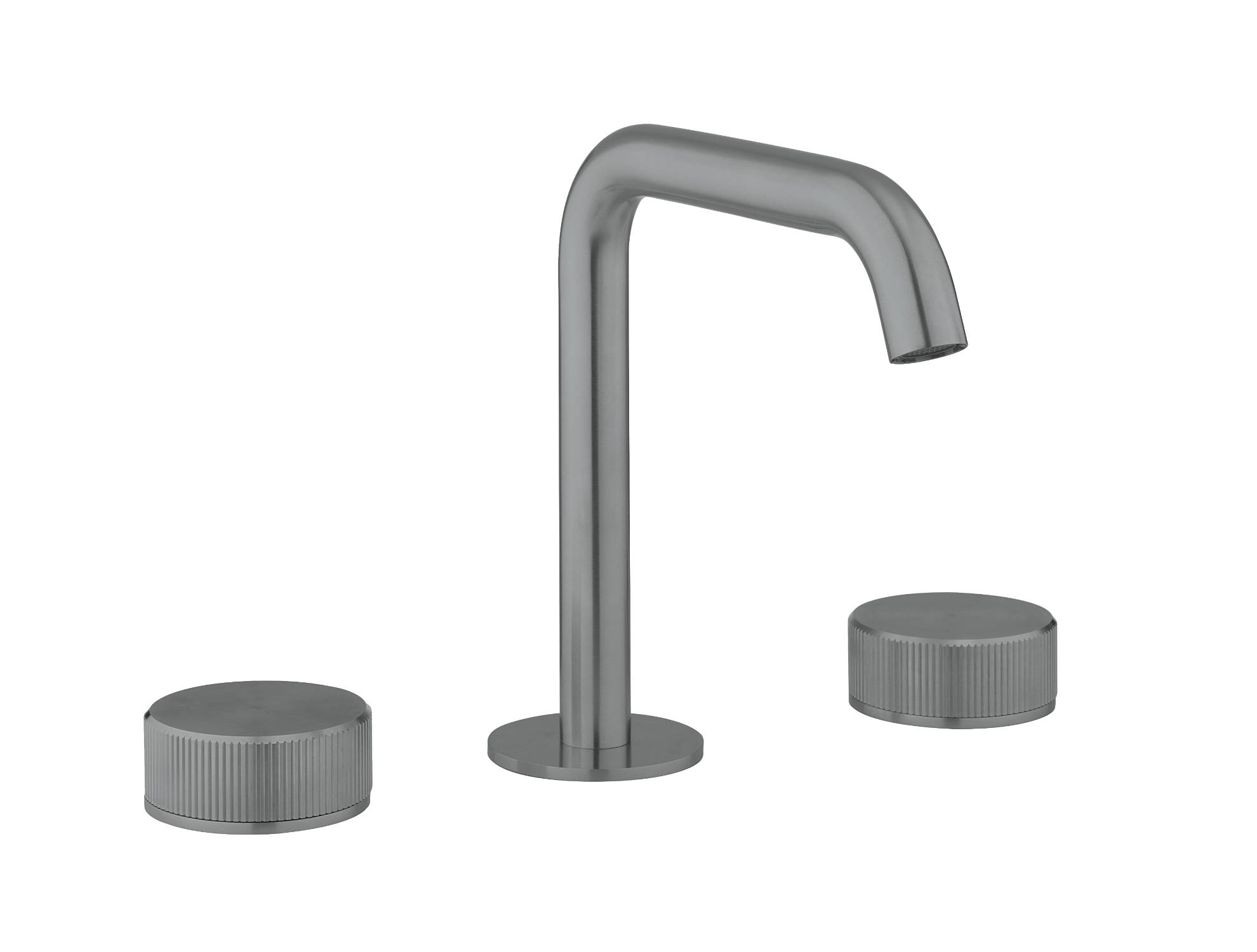

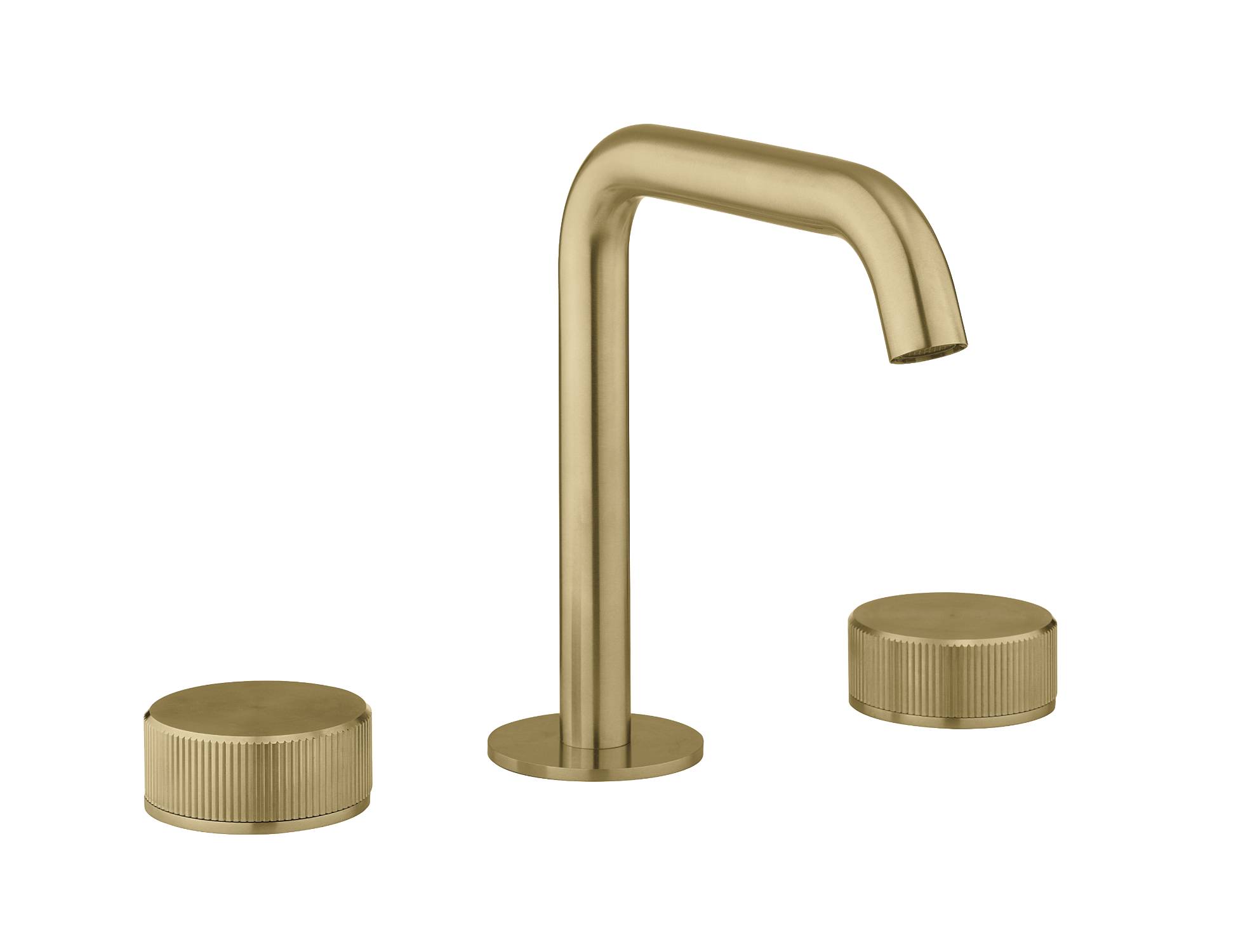

Stainless steel deck-mounted basin three hole set.

Jump to:
BIM object icon
01322422743 Website

Application

Suitable for deck-mounting in basin areas.

Description

  • Commonly used in traditional or classic bathroom designs but are also be found in contemporary styles. The separate handles offer precise control over hot and cold water flow, making it easy to adjust the temperature to your preference.
  • The deck mounted 3-hole basin mixer features separate handles or levers for controlling hot and cold water respectively. These handles are installed on either side of the spout and allow independent control of each water supply.
  • Unlike monobloc or single-hole basin mixers, which require only one hole for installation, a deck mounted 3-hole basin mixer requires three separate holes in the basin or countertop. These holes are strategically positioned to accommodate the spout and the two handles.
  • Deck mounted 3-hole basin mixers are available in various styles, finishes, and designs to match different bathroom aesthetics. This allows you to choose a tap that complements the overall decor and enhances the visual appeal of your space.


General information

Color

Silver

Material

Stainless steel

Shape

Other

Height

173 mm

Warranty description

15 year

Five year

(On cartridges).

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply setsPrimary

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin thermostatic water supply sets

Form

Thermostatic mixer taps.

Materials

-

Body

Stainless steel.

Grade 316.

Flow rate (maximum)

5.08 L/minute at 2 bar.

Integral accessories

Restrictor.

Supplied.

Operation

1/2" ceramic disc/ quarter turn.

Connections

G1/2".

Spout projection

161 mm.

Height

173 mm.

Weight

2.1 kg.

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
