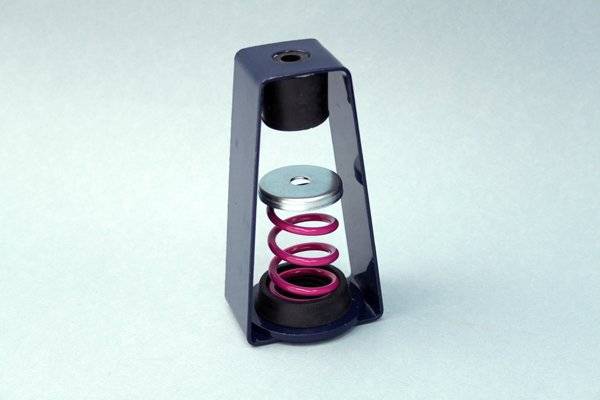

30N Series – Spring Hanger

Description

The 30N hanger series can be fitted with a range of springs to suit acoustic and weight requirements. Spring hangers are used to isolate against low frequency noise from sources such as footfalls and mechanical vibration. Mason UK supply springs with a low ratio between height and coil diameter. This ensures that the spring remains stable, regardless of the amount of deflection. They feature a neoprene cup, required to absorb high frequency noise. This extends through the hanger box which ensures that the hanger rod does not contact the hanger box. The 30 series hangers are designed to allow for the rod to swing through an arc of 30 degrees from side to side in any direction before contacting the resilient rubber bushing. These hangers also incorporate a Low Dynamic Stiffness (LDS) rubber element. This part of the hanger isolates effectively against higher frequencies, typically from airborne sources. Hangers are available with load capacities from as low as 5kg, up to 1252kg.

General information

Color

Brown

Features

All springs have additional travel to solid equal to 50% of rated deflection, hanger elements have straight line deflection curves

Material

Steel, rubber

Size

64 x 140 x 73 mm

Uniclass 2015

Pr_80_77_94_42 Isolation hangersPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

2

2.1
Revit
-

2

2.1
Download now from NBS National BIM Library
