2C21
Application

For use on timber doors hinged on the left or right. Also suitable for steel and composite doors - special fixings required.

Description

Application:

For use on timber doors hinged on the left or right. Also suitable for steel and composite doors - special fixings required.

Operation:

  • European style casing with 72 mm centres which accommodates most euro profile cylinders•
  • Double throw - 20 mm deadbolt throw when key is turned twice.
  • Easily reversible latch bolt.
  • Pierced to accept bolt through furniture and security rose.
  • Suitable for unsprung lever furniture up to a maximum weight of 0.75 kg.

Features:

  • Modular case range.
  • Easily reversible stainless steel latch bolt.
  • Available with radiused or square forend and strike.

Additional information for this product is available from - http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2C2-Series/

General information
Features

Modular case range

Easily reversible stainless steel latch bolt

Available with radiused or square forend and strike

Additional information for this product is available from - http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2C2-Series/

Uniclass 2015
Pr_30_36_08_24 Door latchesPrimary
CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches
Product Reference

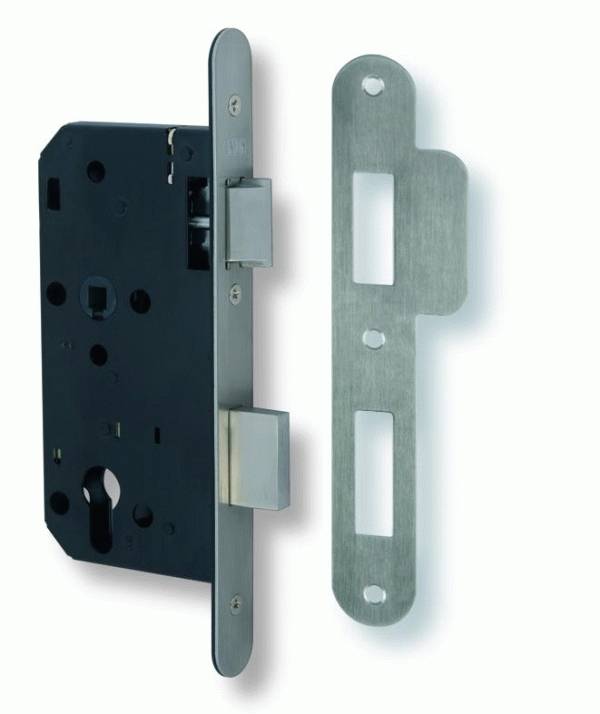

Euro Profile Mortice Sash Lock - 2C21

Type

J L2C21 R

Round forend and striking plate.

J L2C21 S

Square forend and striking plate.

Outer forend

PB - Polished brass

PS - Polished stainless steel

SS - Stainless steel

Rebate kit

Not required

J2C2-REB 13 mm

Only available in SS and PB finishes.

J2C2-REB 25 mm

Only available in SS and PB finishes.

Standard product features

General:

  • Case size: 83 mm.
  • Backset: 55 mm.
  • Case: Steel, black powder coat.
  • Striking plate: Finished to match outer forend.
  • Deadbolt: Stainless steel.
  • Latch bolt: Stainless steel.
  • Follower: 8 mm, zinc.
  • Cylinder type: Euro profile (not supplied).

Standards:

  • Tested to BS EN 12209:2003.
  • BS EN 1634-1 assessed for use on 60 minutes timber fire doors.
  • EC Certificate number: 0832-CPD-6045.
  • Assists in fulfilling duties required under the Equality Act. Satisfies recommendations of BS 8300 and Building Regulations (E&W) Approved Document M.
