Panel Glide - Hand Operated - Curved - Silent Gliss SG 2700

Verified by manufacturer 8 months ago

Silent Gliss Ltd

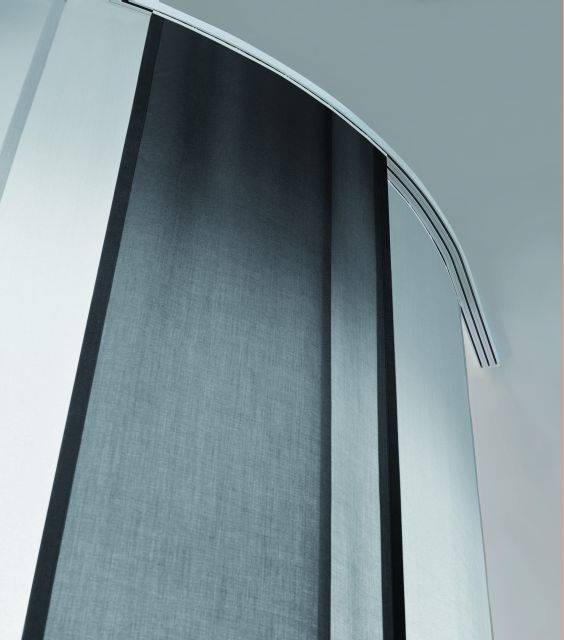

Decorative panel glide system that can be curved.

Jump to:
+44 (0)1843 863571 Website

Application

Suitable for residential and contract applications.

Description

A range of hand, cord and electrically operated, two or more sliding panels, for use as a window treatment, wall dressing or as a room divider.


Features:

  • Can be bent to a radius of up to 150 mm.
  • Delivered ready assembled.
  • Flexible carriers allow for smooth and silent operation.
  • Hand operated.
  • Panels can be easily removed for cleaning or to change decor.
  • Wide selection of Silent Gliss fabrics available.

General information

Uniclass

Pr_30_59_07_95 Vertical blindsPrimary

CAWS

N10/230 Curtain supports

Product range

Panel Glide Systems

Specification data - Vertical blinds

Operation

Hand.

Unconnected panels.

Hand draw rod.

Connected panels.

Accessories

A wide range of standard and optional accessories is available.

Execution

Installing blinds.

Profile

10132.

Two track 32 x 23 mm.

10133.

Three track 49 x 23 mm.

10134.

Four track 67 x 23 mm.

10135.

Five track 85 x 23 mm.

Dimensions (width x height)

As drawing.

As schedule.

Configuration

Centre stack.

Pair stack.

Single stack left.

Single stack right.

Fixings

Consult manufacturer and insert requirements.

Width

50–100 cm.

Panels are suspended from flexible carrier 10180 in the profile channel. The width of the fabric panel can be varied but is normally between 50–100 cm. The overlap of 12 cm is fixed.
