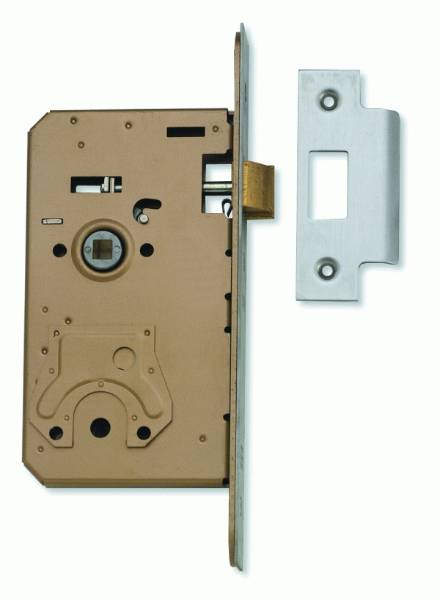

2670
Application

  • For timber doors hinged on the left or right, opening inwards and outwards.
  • Also suitable for steel and composite doors - special fixings required.
  • For use with sprung or unsprung lever furniture from either side.

Description

Application:

  • For timber doors hinged on the left or right, opening inwards and outwards.
  • Also suitable for steel and composite doors - special fixings required.
  • For use with sprung or unsprung lever furniture from either side.

Operation:

  • Suitable for use in heavy traffic areas.
  • Latch bolt withdrawn by lever handles from either side.

Features:

  • Heavy duty springing for high traffic areas.
  • Easily reversible latch bolt.

Additional information for this product is available from:http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2D2-Series/

General information

Size

94.5 mm

114.5 mm

Features

Heavy duty springing for high traffic areas

Easily reversible latch bolt

Additional information for this product is available from:http://www.uniononline.co.uk/en/site/Union-Online/Products/Mechanical-Locking/Mortice-Locks/2D2-Series/

Uniclass 2015

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Mortice Latch - 2670

Size

94.5 mm

114.5 mm

Backset

60 mm

80 mm

Outer forend

PL - Polished brass

60 mm backset only.

SC - Satin chrome

Rebate kit

Not required

2936, 13 mm

2936, 19 mm

2936, 25 mm

Polished brass finish.

Standard product features

General:

  • Case: Steel, gold powder coated.
  • Striking plate: Finished to match outer forend.
  • Latch bolt: Brass, easily reversible from outside of the case.
  • Follower: Brass, 8 mm square. One way action.
