20.5 mm plank floating clip system floor
Description

A 20.5 mm thick hardwood plank flooring system available in a variety of species. Manufactured as a single plank, 140 mm wide (also available in 185 mm widths in Oak). The full length boards have precision machined tongued and grooved edges, which are specially designed for easy assembly and ensure square, secure joints on all four sides.

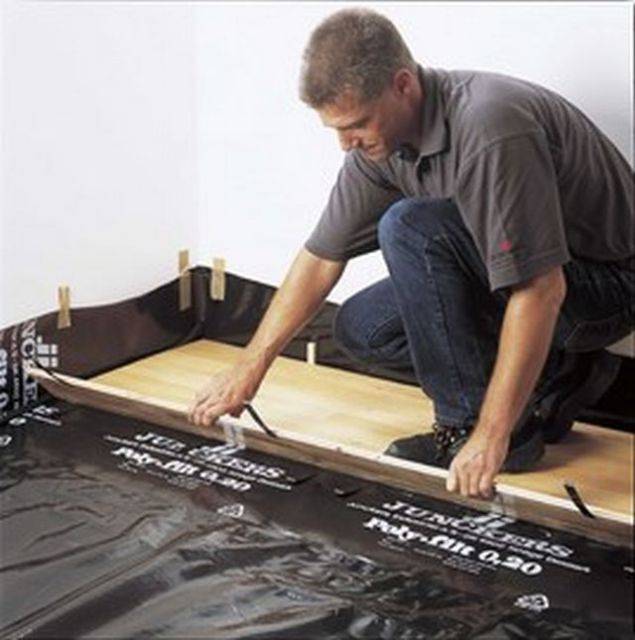

Boards are joined using special clips that fit into machined grooves in the back of the boards.

Can be laid directly over most flat and level sub floors.

Designed for heavy wear and durability. Suitable for installation over underfloor heating (consult Junckers for special details), but should not be used in wet areas.

Available in a range of factory finishes which, if necessary, can be refinished using suitable cleaning agents, oils and lacquers. Renovation by in-situ precision sanding and refinishing is also possible.

Accreditations:

  • FSC.
  • PEFC.

General information

Finish

Stained

Textured And stained

Untreated

UV light cured lacquer plus Junckers polyurethane Isolacquer – Silk Matt finish

UV light cured lacquer plus Junckerspolyurethane Isolacquer – Ultra Matt finish

Urethane Rustic oil

Material

Hardwood

WarrantyDescription

Labor: 25 year project specific where fitted by an approved contractor, Parts: 10 year project specific or 25 year where fitted by approved installer

Uniclass 2015

Ss_30_20_95_10 Battened wood floating floor systemsPrimary

CAWS

K21/111 Wood floating floor

Specification data - Battened wood floating floor systems

Product Reference

20.5 mm plank floating clip flooring systems

Wood species

Antique White

Black oak

Dark Ash

Dark Luxe Desert Gold

Dark Luxe Oiled Black Oak

Dark Luxe Mountain Silver

Frosted White

Golden Oak Pearl

Light Ash

Natural Oak Pearl

Nordic Oak

Oak

Silver Oak Pearl

Driftwood Grey

Nordic Light Ash

Nordic Dark Ash

Appearance

Classic

Harmony

Variation

Size

129.4 mm

129.8 mm

Finish

Stained

Textured And stained

Untreated

UV light cured lacquer plus Junckers polyurethane Isolacquer – Silk Matt finish

UV light cured lacquer plus Junckerspolyurethane Isolacquer – Ultra Matt finish

Urethane Rustic oil

Method of joining

Quick Clip System: 17 clips/m²

Resilient layer

Junckers 2 mm thick Polyfoam, (including vapour control layer).

Junckers 5 mm thick MultiFoam

Junckers 5 mm CA2 Acoustic Underlay

Polystyrene board, tongue and grooved edge joints, density 30 kg/m³

for residential floors only.

Vapour control layer

Junckers SylvaThene

Accessories

None

Expansion strip

Nosing

Skirting

Stair Nosing

Standard product features

Finished face width:

140 mm (185 mm widths in Oak).

Product Options

Clip size:

Clip size is determined on the basis of expected maximum relative humidity in the building during the year; contact Junckers for recommendations.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 1 1.3
Revit
Revit 2016 3 2.0
