200 Series Wall Mounted Extractor

Verified by manufacturer 6 months ago

Gaggenau

Wall mounted extractor.

Jump to:
BOS
+44 (0) 3448 928988 Website

Application

Kitchen ventilation.

Description

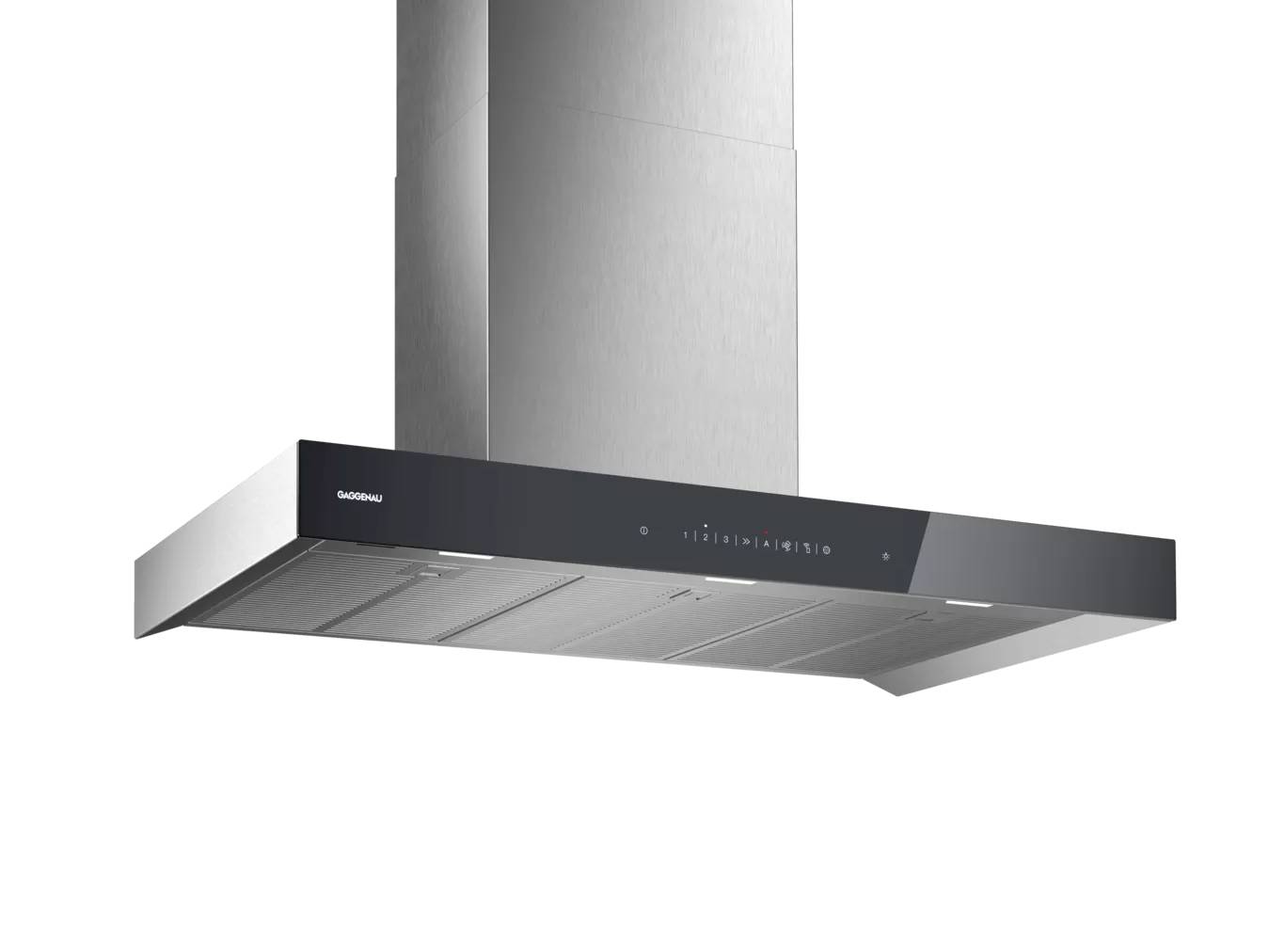

200 series wall-mounted hood, 90 cm. Stainless steel.


Features and benefits:

  • Energy saving low-noise fan.
  • Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours.
  • Perforated stainless steel grease filters with high grease absorption rate.
  • Standard length ventilation duct included.
  • Home Connect.

General information

Color

Silver

Black

Material

Stainless steel

Glass

Shape

Rectangle

Length

500 mm

Width

900 mm

Warranty description

Five year

Uniclass

Pr_60_65_94_46 Kitchen extractor hoodsPrimary

CAWS

N11/40 Appliances

N11/360 Appliances

U90/413 Ventilation fan units

Specification data - Kitchen extractor hoods

Operation

Extraction.

Recirculation.

Installation

Wall-mounted.

Material and finish

Stainless steel.

Capacity (minimum)

Air recirculation: 618/ 971m³/h. 64/ 73 dB (A) re 1 pW.
Air extraction: 383/ 476m³/h. 69/ 74 dB (A) re 1 pW.

Controls

Three electronically controlled power levels and one intensive mode.

Features

Automatic function with sensor-controlled run-on function.
Grease filter saturation indicator.
Activated charcoal filter saturation indicator.
Perforated sheet metal filter, dishwasher-safe.
Interval ventilation, 6 minutes.
Neutral white LED light (3500 K), continuously dimmable.
Light colour in different white tones (2700 - 5000 K) can be adjusted via Home Connect.
Lamp output 3 x 3 W.
Illuminance 551 lx continuously dimmable.
Fan technology with highly efficient, brushless DC motor (BLDC).
Airflow-optimised vapour collection area with slightly inward facing filters.
The package includes an one-way flap.
Easy mounting system for simple installation and alignment.

Rating

269 W.

Noise level at 1 m (maximum)

Air recirculation: 618/ 971m³/h. 64/ 73 dB (A) re 1 pW.
Air extraction: 383/ 476m³/h. 69/ 74 dB (A) re 1 pW.

Accessories

AA200110: Repl. filter for AA200812/816, AA010810.

AA200112: Activated charc. filter for AA200812/816.

AA200812: Recirculation module w.active charcoal.

AD200322: Chimney elongation stainless steel.

AD200392: Ceiling Collar Stainless Steel Wall.

Energy rating

A.

Sustainability data

Material

Stainless steel

Glass

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

The Models and Dimensions 2024 Edition l

The Models and Dimensions 2024 Edition l

The Range 2024

The Range 2024
