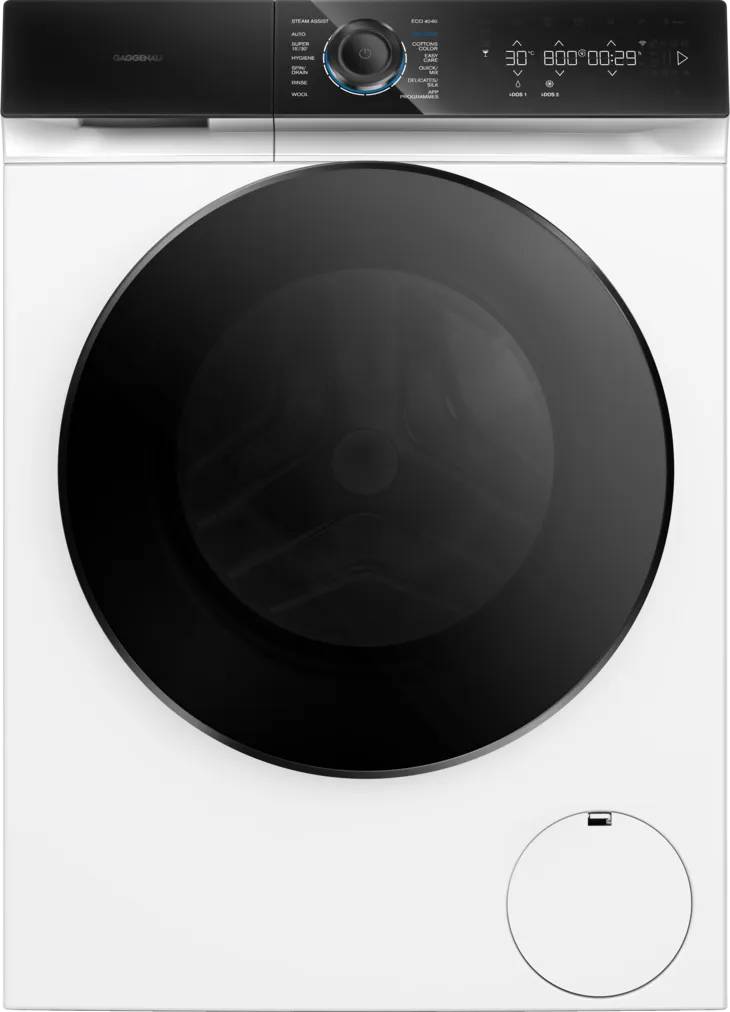

200 Series Free Standing Washing Machine
Verified by manufacturer 3 months ago
Free standing washing machine.
Application
Laundry washing machine.
Description
200 series washing machine, 10 kg, 1600 rpm.
Features and benefits:
- Home Connect.
- 10 kg drum with interior lighting.
- Intelligent dosage system iDos 2.0 for liquid detergent and softener for a perfect washing result.
- Dynamic Wash System: innovative washing technology for increased cleaning performance.
- Large porthole with 188 ° opening angle.
- Stackable under dryer WT 260 165 in combination with special accessory. With pull-out shelf WZ27500.
- Connected water and waste.
General information
Color | White |
Shape | Rectangle |
Length | 590 mm |
Width | 598 mm |
Height | 845 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
SKU Code | WM260165 |
Specification data - Laundry washing machines
Load capacity | 10 kg. |
Operation | Front-loading. |
Arrangement | Semi-integrated. |
Material and finish | White. |
Dimensions | |
Width (maximum) | 598 mm. |
Depth (maximum) | 590 mm. |
Height (maximum) | 845 (+12 mm). |
Programmes | Eco 40-60. Cottons. Eco Cottons. Easy Care. Quick/Mix. Delicates/Silk. Steam Assist. Automatic. Super 15/30. Hygiene. Wool. Spin/Drain. Rinse. Options: Remote-Start, Mini Load, Favourite, Speed Perfect, Rinse Plus, Steam, Water Plus, Prewash, Stains. App Programmes: Automatic Soft, Shirts/Blouses, Dark Wash, Duvet, Sports, Drum Clean with reminder. |
Spin speed (maximum) | 1600 rpm. |
Water supply | Water connection with 3/4" screw joint. |
EU energy label rating (minimum) | A. |
Features | Aqua sensor. Aqua stop. Flow-through sensor. Anti-stain automatic. Continuous automatic load adjustment. Foam detection system. Spin speed selection from 400 to 1600 rpm. Top-up function. Dynamic Wash System technology for increased cleaning performance. Automatic stabilisation. Anti-crease system. Child lock. Left-hinged. Large porthole with 188 ° opening angle. Height-adjustable feet. Automatic programmes: Perfect washing results at the touch of a button. Illuminated rotary knob with integrated On-Off switch. Large touch display with clear text and symbols. Loading indicator with dosage recommendation. Time delay up to 24 hours. |
Rating | Energy consumption 51 kWh per 100 cycles. |
Accessories | WMZ2381: Extension for cold water inlet /Aquastop WMZPW20W: Platform with pull-out, washer, cubic. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
The Models and Dimensions 2024 Edition l
The Range 2024
