200 Series 60 cm Induction Hob
Verified by manufacturer 5 months ago

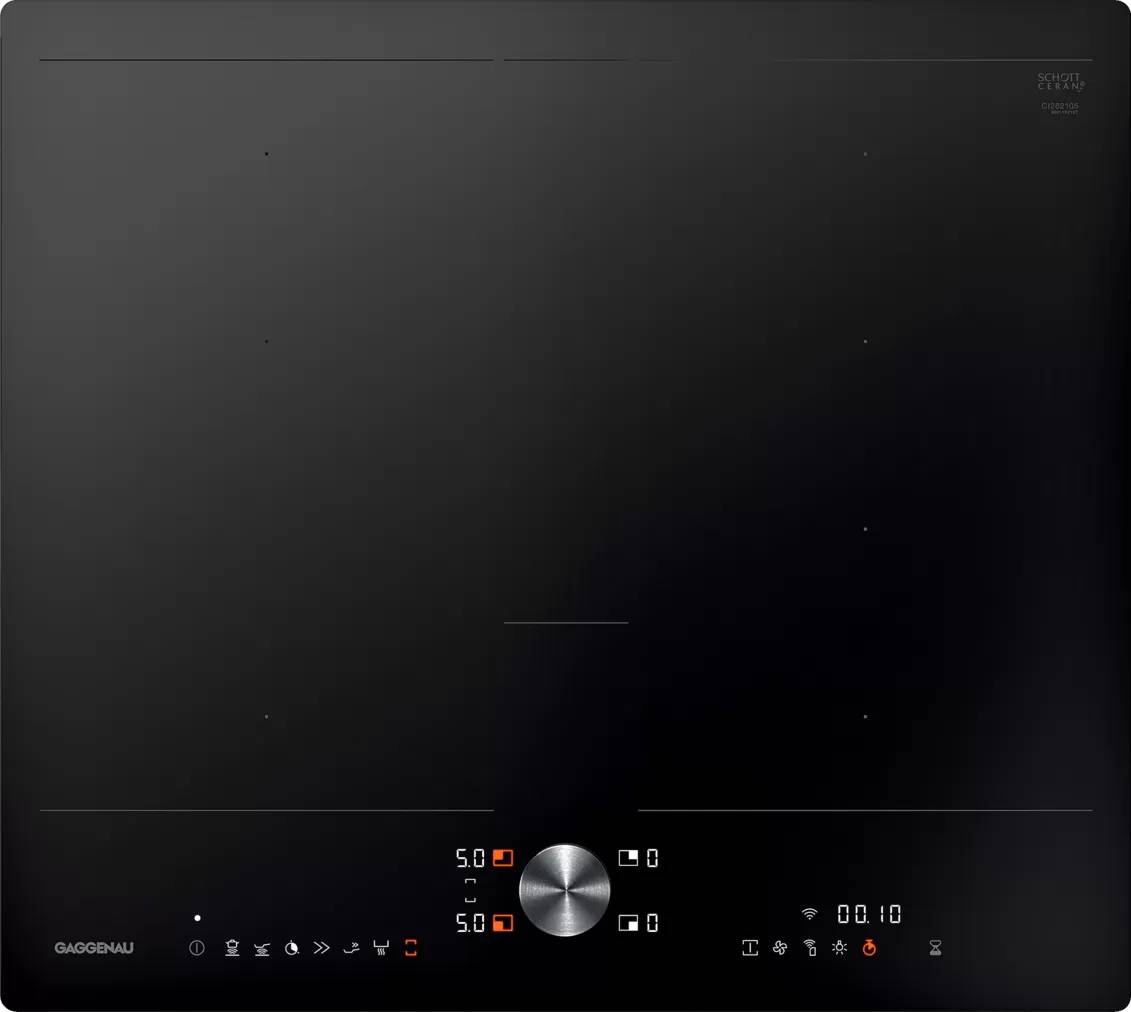

CI261115 200 series 60cm INDUCTION HOB, STAINLESS STEEL FRAME, 4 ZONES, TOUCH PAD CA051 & CA052 included HC Ready
CI261115 200 series 60cm INDUCTION HOB, STAINLESS STEEL FRAME, 4 ZONES, TOUCH PAD CA051 & CA052 included HC Ready
Induction hob.
Application
Cooking appliance.
Description
200 series flex induction cooktop, 60 cm. Framed or Frameless.
Features and benefits:
- Magnetic Twistpad in stainless steel or black.
- Professional cooking function for splitting the cooktop into predefined heat areas.
- Free positioning of cookware option is allowing all the chefs to effortlessly move and rearrange their pots and pans across the induction cooktop, providing unparalled flexibility.
- Flex function for combining the rectangular cooking areas.
- Flush-Top Frame installation: seamless transition of hob and worktop makes cleaning easier and integrates the hob beautifully.
General information
Color | Black |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 512 mm Guidance for specification option: Depth |
Width | 572 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Two flex induction cooking areas 23 x 19 cm.Manufacturer guidanceUp to six items of cookware can be placed simultaneously on the cooktop. |
Dimensions | |
Width (maximum) | 572 mm. |
Depth (maximum) | 512 mm. |
Rating | 7.4 kW. |
Material and finish | Black glass with stainless steel side trims. |
Features | Flex function for rectangular cooking areas. |
Accessories | CA050300: Flex pan set 3 pcs. CA051300: Teppan Yaki (large). CA051301: Teppan Yaki. CA052300: Griddle Plate. CA055300: Flex pan large. |
Sustainability data
Material | Stainless steel Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
The Models and Dimensions 2024 Edition l
The Range 2024
