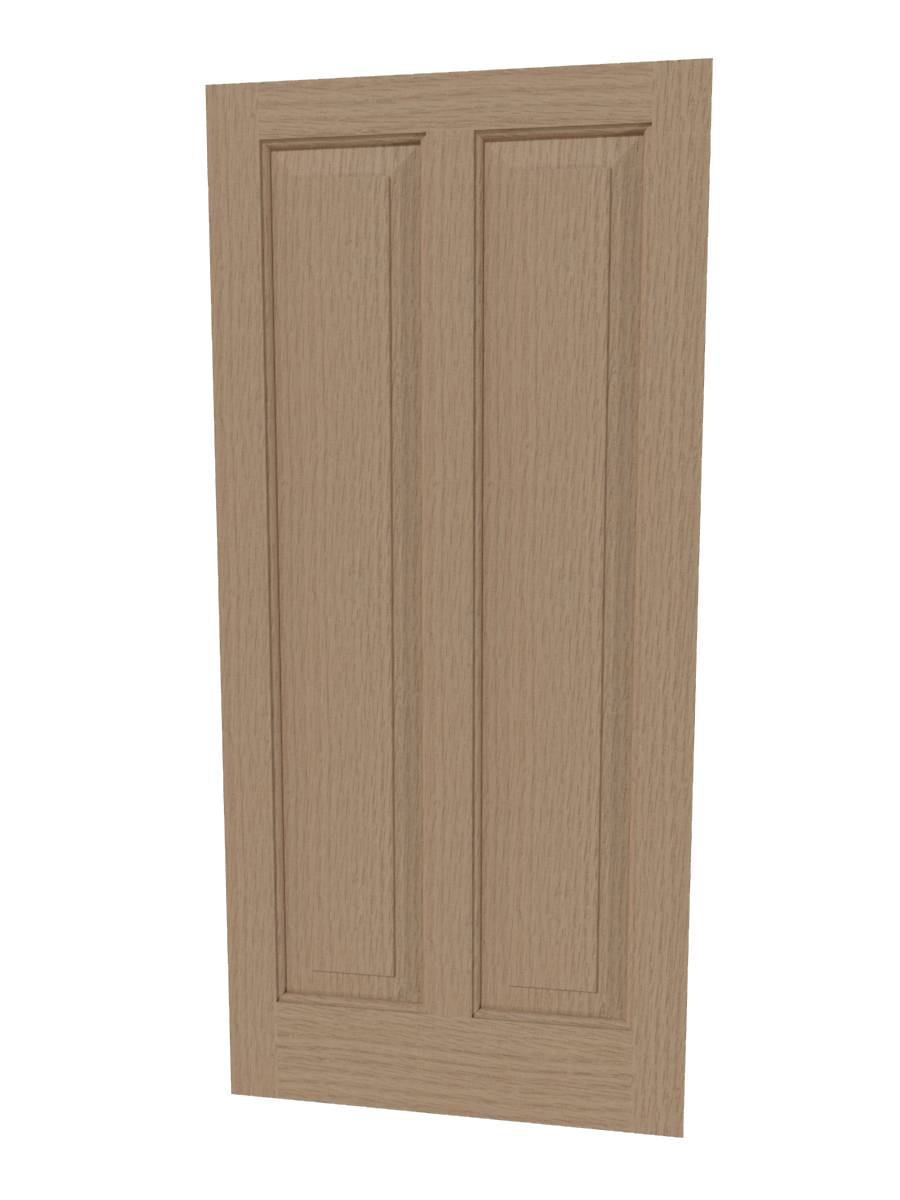

2 Panel Door
Application

Internal use.

Description

Bespoke made-to-measure door and door sets with two panels in solid mortice and tenon, flush or recessed panel or plant-on bead. Available in a variety of panel quantities with multiple feature and design options. Ideal for heritage projects where matching existing doors is crucial.


Features and benefits:

  • IFC Fire Certification BS476-22:1987.
  • Bespoke handcrafted solid timber.
  • Manufactured in Britain.
  • Traditional mortice and tenon construction.
  • NFR, FD30, FD30s, FD60 and FD60s available.
  • Choice of profile moulds, panel design, bed and bolection moulds.
  • Glazing and acoustic options.
  • Available in mortice and tenon, recessed panel and plant on bead construction.
  • Available in various timbers and finishes.

General information

Color

Finish

Cleaned, fully painted, lacquered, stained or primed with two coats, oil finish

Material

Solid timber

(range of species available).

Shape

Rectangular

Size

Made to measure as per schedule

see manufacturing details for maximum size allowance to fire doors.

Uniclass 2015

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/420 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets Enhanced data

Third party accreditation

International Fire Consultants (IFC).

Standard

BS 476-22:1987.

Configuration

Double action, double door (DADD).

Double action, single door (DASD).

Latched single action, double door (LSADD).

Latched single action, single door (LSASD).

Unlatched single action, double door (ULSADD).

Unlatched single action, single door (ULSASD).

Doorset size

As drawing.

Insert reference; see manufacturing details for maximum size allowance to fire doors.

As schedule.

Insert reference; see manufacturing details for maximum size allowance to fire doors.

Performance

-

Fire performance

-

Fire integrity

NFR.

For 44 mm door leaf thickness only.

FD30.

For 44 mm door leaf thickness only.

FD30s.

For 44 mm door leaf thickness only.

FD60.

For 58 mm door leaf thickness only.

FD60s.

For 58 mm door leaf thickness only.

Frame

-

Material

Hardwood.

70 x 32 mm minimum frame.

Softwood.

70 x 32 mm minimum frame.

Species

Solid American black walnut.

NFR, FD30, FD60.

Solid American white oak.

NFR, FD30, FD60.

Solid ash American.

NFR, FD30.

Solid Douglas fir.

NFR, FD30.

Solid ash European.

NFR, FD30.

Solid bespoke.

Insert requirement.

Solid cherry American.

NFR, FD30, FD60.

Solid European oak.

NFR, FD30, FD60.

Solid French walnut.

NFR, FD30, FD60.

Solid iroko.

NFR.

Solid movingue.

NFR, FD30, FD60.

Solid rock maple.

NFR, FD30, FD60.

Solid sapele.

NFR, FD30, FD60.

Solid tulipwood.

NFR, FD30.

Solid utile.

FD60.

Solid wenge.

Solid West African mahogany.

NFR, FD30, FD60.

Threshold

Johan DD1 - Morticed Acoustic Drop Seal tested to BS 476-22: 1987.

Perimeter seals or inserts

Pyrostrip as per Johan Doors manufacturing detail.

Finish

Cleaned for site finish.

Lacquer.

Stain.

Installation fasteners

Steel Fixings as per Johan Doors manufacturing details.

Door leaf

-

Thickness

44 mm.

For NFR, FD30 and FD30s only.

58 mm.

For NFR, FD30, FD60 and FD60s only.

Core

Solid timber.

Appearance class

Solid mortice and tenon construction.

Panel details

Burns raised and fielded.

Hogg shadow gap panel.

Lang stepped panel.

Ramsay flat panel.

Species

Solid American black walnut.

FD30 and FD60.

Solid American white oak.

FD30 and FD60.

Solid ash American.

FD30 only.

Solid ash European.

FD30 only.

Solid bespoke.

Insert requirement.

Solid cherry American.

FD30 and FD60.

Solid Douglas fir.

FD30 only.

Solid European oak.

FD30 and FD60.

Solid French walnut.

FD30 and FD60.

Solid iroko.

NFR only.

Solid movingue.

FD30 and FD60.

Solid rock maple.

FD30 and FD60.

Solid sapele.

FD30 and FD60.

Solid tulipwood.

FD30 only.

Solid utile.

FD30 and FD60.

Solid wenge.

Solid West African mahogany.

FD30 and FD60.

Perimeter seals

Pyrostrip as per Johan Doors manufacturing detail.

Finish

Cleaned for site finish.

Fully painted.

Lacquer.

Stain.

Two-coat primed for site finish.

Oil Finish.

Glazing

-

Type

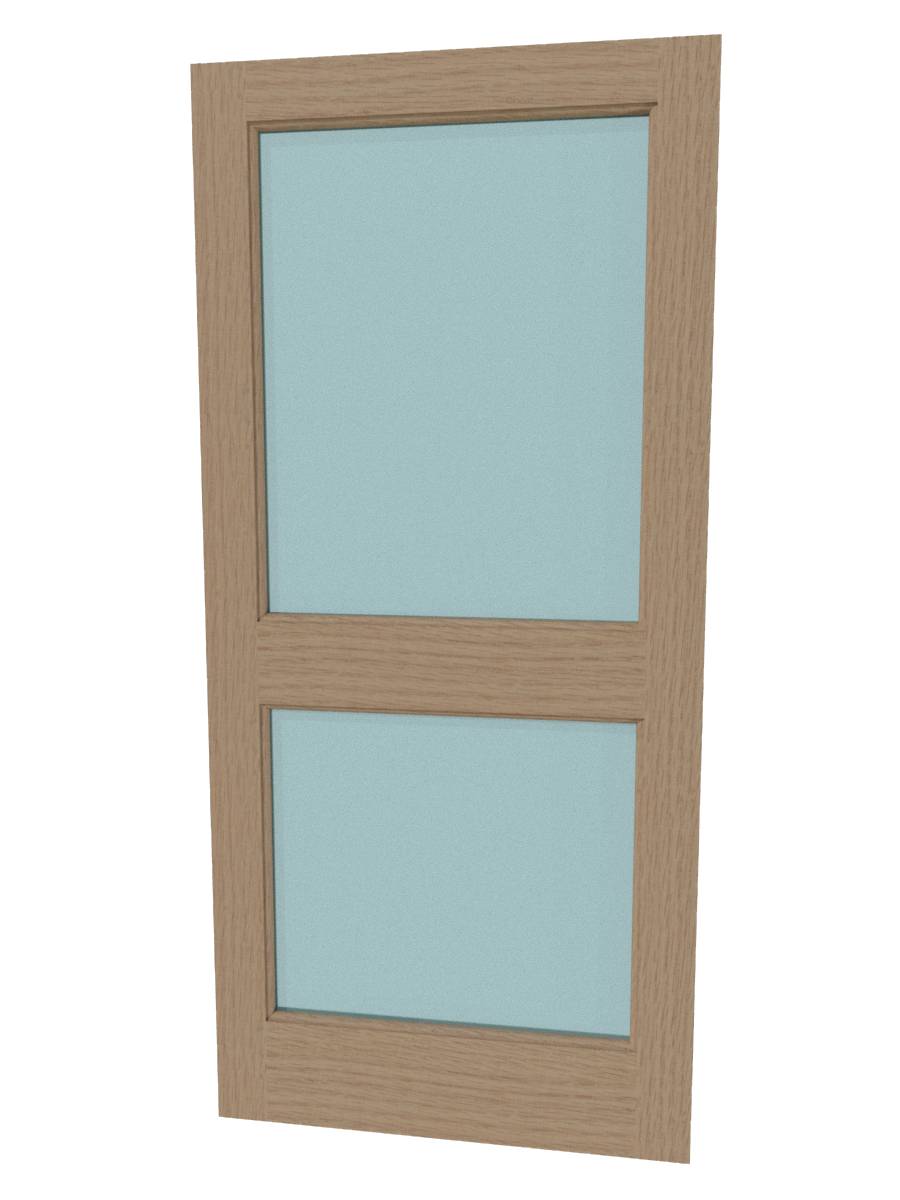

Clear fully glazed.

As per drawing.

Clear glazed - lower panels.

Insert requirement. As per drawing.

Clear glazed - upper panels.

Insert requirement. As per drawing.

Clear half glazed - lower panel.

As per drawing.

Manifestation

By others.

Beading

-

Type

As per Johan manufacturing details.

Material

As per Johan manufacturing details.

Fixing

As per Johan manufacturing details.

Planted stops

-

Wood species

As per Johan manufacturing details.

Finish

As per Johan manufacturing details.

Colour

As per Johan manufacturing details.

Hardware

Consult Johan Doors for ironmongery specification.

Architraves

-

Material

To Match Existing.

Bespoke.

JAR1.

JAR2.

JAR3.

JAR4.

JAR5.

JAR6.

JAR7.

JAR8.

Finish

Cleaned for site finish.

Lacquer.

Stain.

Two-coat primed for site finish.

Oil Finish.

Accessories

None.

Dado rail.

Picture rail.

Plinth blocks.

Skirting.

Product Reference

Ardmore

Cardhu

Tomatin

FrameType

Acoustic frame.

Acoustic frame lining and stop.

Acoustic frame rebated.

Acoustic frame rebated lining and stop.

Lining and stop.

Show more

Profile mould

Duplex.

Lambs tongue.

Ovolo.

Splay.

Square shoulder.

Show more

Bolection mould

JOL1.

JOL2.

JOL3.

JOL4.

JOL5.

Show more

Bed mould

JED1.

JED2.

JED3.

JED4.

JED5.

Show more

Fanlight overpanel/ Side panel

Flush overpanel.

As per drawing.

Transomed fanlight.

As per drawing.

Transomed overpanel.

As per drawing.

Door closers

Not required.

Cam action guide rail closer.

Jamb concealed closer.

Overhead concealed closer.

For NFR and FD30 only.

Rack and pinion closer.

Show more

Type

1750CE Simonswerk Tritech Concealed Bearing Butt Hinge.


For fire doors up to 160 kg.

1750 Simonswerk Tritech Concealed Bearing Butt Hinge.

For non-fire rated doors up to 160 kg.

1850CE Simonswerk Samson Concealed Bearing Butt Hinge.

For fire doors up to 100 kg.

1850 Simonswerk Samson Concealed Bearing Butt Hinge.

For non-fire rated doors up to 100 kg.

TE 340 3D Simonswerk Concealed Hinge System.

Non-fire doors only up to 80 kg.

Hinge finish

Aged Brass.

Antique Brass.

Antique Nickel.

Black Nickel.

Copper Bronze.

Show more

Finials

Not required.

Acorn.

Adam.

Apollo.

Basic.

Show more

Decorative finish

Not applicable.

Flowing Bark.

Recurring Rectangles.

Gator Reflections.

Skateline.

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Third party certifications
  • International Fire Consultants (IFC): BS476: PART 22: 1987
