180cm Integrated freezer FNS 7770 E

Verified by manufacturer 2 months ago

Miele GB

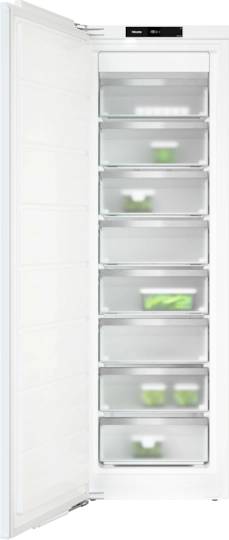

FNS 7770 E full-height integrated larder freezer

Jump to:
+44 (0)1235 233531 https://www.miele.co.uk/

Application

Built-in freezer for domestic or commercial kitchen settings.

Description

Built-in, full-height freezer.


Features and benefits:

  • Side-by-side enabled.
  • One primary temperature zone.
  • No icing up of food and no need to defrost.
  • Optimum and maintenance-free LED lighting in compartment.
  • Soft-closing doors - SoftClose.
  • Freezer compartment can be increased in size with VarioRoom.
  • Rapid and gentle freezing of food.
  • Includes eight drawers (six of which are on runners), ice packs and cube tray.
  • Includes lock function and acoustic/ optical door alarm.

General information

Color

White

Material

Steel

Shape

Rectangle

Length

544 mm

Width

559 mm

Height

1770 mm

WarrantyDescription

Two year

Uniclass

Pr_40_70_26_31 FreezersPrimary

CAWS

N12/410 Refrigeration and freezer units

N12/410 Refrigeration and freezer units

Specification data - Freezers

Climate class

SN-T.

Installation

Built-in.

Material and finish

White-coated steel.

Format

Upright.

Dimensions

-

Height (maximum)

1770 mm.

Width (maximum)

559 mm.

Depth (maximum)

544 mm.

Net storage

217 L.

Freezing capacity

14 kg/24h.

Safety rating

Four star.

Power cut safe time

14 h.

Drawers

Eight, transparent.

Door arrangement

Left-hand hinge/ convertible door hinging.

Features

Integral LED light & controllable through Miele@home app.

Rating

0.654 kW/h.

Electrical supply

220-240 V.

EU energy label rating (minimum)

E.

Nominal weight

70.9 kg.

AcousticRating

Noise Class C.

Power consumption

1300 mA.

Environmental information

Country of product manufacture

Germany

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library

Literature

FNS 7770 E Product Data Sheet

FNS 7770 E Product Data Sheet
