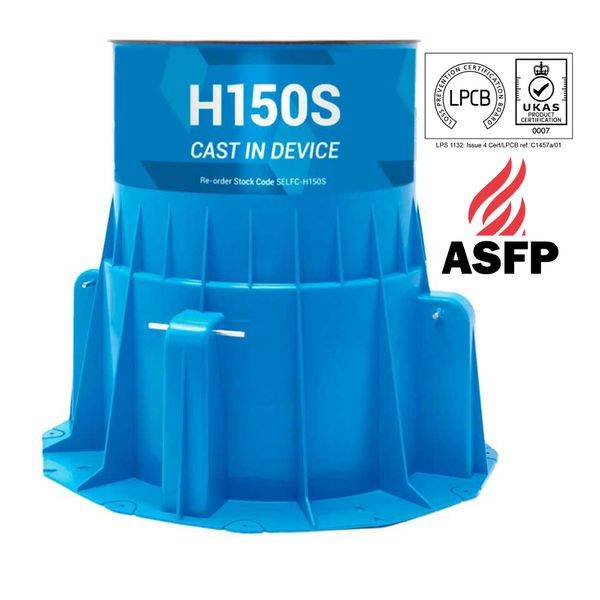

150mm Sure Snap Cast in Fire Collar - Fire Collar

Name: 150mm Sure Snap Cast in Fire Collar - Fire Collar
Brand: Sure Snap Fire Collars
SKU: w8JREKUY1DgDNxWFTjckpP

Verified by manufacturer today

Sure Snap Fire Collars

Product certifications:

BRE Certificate
Certificate type
BRE Certificate
Certificate type

A fire collar to seal pipe penetrations in concrete slabs and prevent the spread of fire and smoke.

Jump to:

07903198479 Website

Application

For the sealing of openings in concrete compartment floors for plastic pipes suitable for:
- U-PVC
- P-PVC
- C-PVC
- HDPE
- MDPE
- PP-R
- Rehau Raupiano Plus
- Valsir Triplus
- Akatherm dBlue pipes.
For use on slabs 150 mm thickness and up.

Description

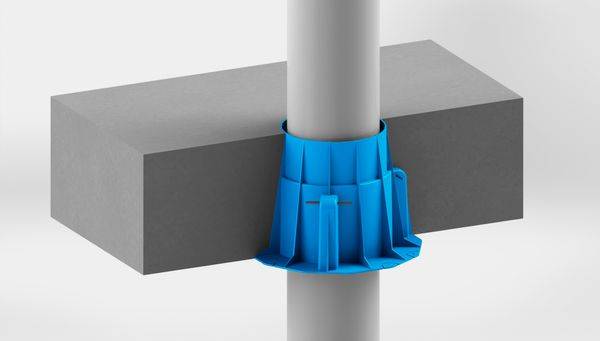

The 150mm Sure Snap Cast in Fire Collar is a fire protection solution, designed to seal pipe penetrations in concrete slabs and prevent the spread of fire and smoke.

Features and benefits:

Patented spring activation: Rapid closure seals pipe penetrations in fire conditions.
Up to 4-hour fire resistance: Compliant with BS EN 15882-3 and EN 1366-3.
Durable and highly visible casing: Withstands construction site conditions.
Snap-off nail points: Ensures a clean finish after formwork removal.
Sealing rubber ring: Prevents debris and water ingress post-installation.
Stackable extensions: Adapts to slab thicknesses over 250 mm.

General information

Color	Blue
Material	Polypropylene Intumescent Rubber Steel
Shape	Circle
Length	283 mm
Width	283 mm
Height	250 mm

Uniclass	Pr_65_52_61_15 Concealed intumescent pipe collarsPrimary
CAWS	P12/370 Pipe collars P12/43 Pipe collars

SKU Code	SELFC-H150S

Specification data - Concealed intumescent pipe collars

Third-party certification	Listing in the Loss Prevention Certification Board (LPCB) register.
Sizes	150 mm.
Fire performance	Fire resistance: 120/ 120 integrity/ insulation. Guidance for specification option: For 110–160 mm diameter PVC pipes, with 3.3–10.3 mm pipe wall thickness. For 160 mm diameter PP pipes, with 4.6–5.2 mm pipe wall thickness. For 110–160 mm diameter PE-HD pipes, with 4.2–15.4 mm pipe wall thickness. Fire resistance: 120/ 180 integrity/ insulation. Guidance for specification option: For 110–160 mm diameter PVC pipes plus coupling, with 6.4–10.1 mm pipe wall thickness and 7–10.8 mm pipe end or socket wall thickness. Fire resistance: 180/ 240 integrity/ insulation. Guidance for specification option: For 110 mm diameter PP pipes plus coupling, with 3.4 mm pipe wall thickness and 3.4 mm pipe end or socket wall thickness. Manufacturer guidance Refer to 'BRE Global Client Report P104650-1003 Issue 2' for details.

Standards	To BS EN 15882-3:2009 (tested under EN 1366-3:2009).
Integral accessories	Locator plate and collar cap.
Accessories	Not required. 150 x 50 mm extension for Sure Snap Cast in Fire Collar - SELFC-150EXT. Guidance for specification option: Designed to provide additional height for fire collar installations in deeper concrete slabs. Each extension adds 50 mm to the fire collar. For use individually or in multiples.
