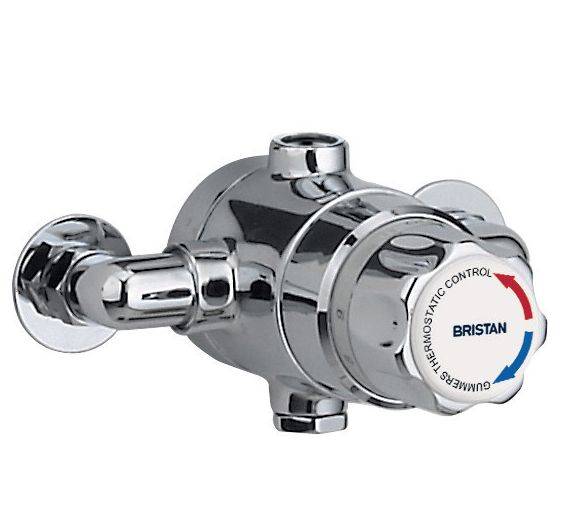

15 mm Thermostatic Exposed Mixing Valve TS1503ECP-2000-MK
Description

15 mm thermostatic exposed mixing valve.

Features:

  • Ideal for either single point or limited group applications.
  • Single adjustable temperature control for user comfort.
  • Automatic shut-off in the event of hot or cold water failure.
  • Check valves and serviceable filters as standard.
  • Operates at a maximum pressure differential of 10:1.

Approvals:

WRAS certified.

General information

Features

Ideal for either single point or limited group applications

Single adjustable temperature control for user comfort

Automatic shut-off in the event of hot or cold water failure

Check valves and serviceable filters as standard

Operates at a maximum pressure differential of 10:1

Finish

Chrome

Uniclass 2015

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower thermostatic water supply sets

Product Reference

TS1503ECP-2000-MK

Standard product features

Finish:

Chrome.

Pressures:

  • Minimum pressure drop: 0.1 bar.
  • Maximum dynamic pressure: 5 bar.
  • Maximum static pressure: 10 bar.

Temperatures:

  • Factory preset temperature: 43°C.
  • Maximum hot water supply temperature: 80°C.
