This product is no longer available

Description

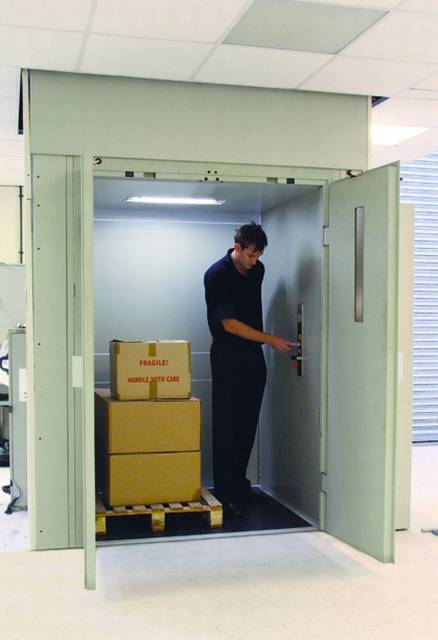

Goodsmaster lifts offer a solution to moving large loads with or without an attendant. The Goodsmaster Plus is specifically designed to allow up to two attendants to accompany the load, includes four capacity options (500, 750, 1000 and 1400 kg) with a range of car sizes.

Features:

  • Cabin control panel – key switch operation with constant pressure control and emergency stop switch.
  • Cabin entrance protection – full height light ray.
  • Landing doors with vision panels.
  • Fluorescent cabin lighting with battery back-up.
  • Bump rails.
  • Overspeed governor and bi-directional safety gear.
  • Load weighing device with audible signal.
  • Alarm device with battery back-up and an optional communication system in the cabin.
  • Notified body approval.

The lift is supplied in a structure supported frame which does not need load bearing shaft walls. A solid flat base, support at each floor and at the top, together with a pre-formed lift shaft supplied by the builder, is usually all that is required.

Complies with the Essential Safety Requirements (ESRs) of the Machinery Directive 2006/42/EC. The Stannah Goodsmaster Plus is supplied with all the additional safety features required to carry attendants.

General information
Features

Cabin control panel – key switch operation with constant pressure control and emergency stop switch

Cabin entrance protection – full height light ray

Landing doors with vision panels

Fluorescent cabin lighting with battery back-up

Bump rails

Overspeed governor and bi-directional safety gear

Load weighing device with audible signal

Alarm device with battery back-up and an optional communication system in the cabin

Notified body approval

The lift is supplied in a structure supported frame which does not need load bearing shaft walls. A solid flat base, support at each floor and at the top, together with a pre-formed lift shaft supplied by the builder, is usually all that is required

Complies with the Essential Safety Requirements (ESRs) of the Machinery Directive 2006/42/EC. The Stannah Goodsmaster Plus is supplied with all the additional safety features required to carry attendants

Finish

Car interior: Manufactured from mild steel sheeting, finished in tough grey backed enamel (RAL 7038) with heavy-duty vinyl covered floor. Ceiling incorporates twin 18 W fluorescent tube lighting and an electrically interlocked maintenance access hatch

Uniclass 2015
Electric lift systems (Ss_80_50_60_26)Primary
Specification data - Electric lift systems
Product Reference

Goodsmaster Plus

Type

500B

Single hinged door, 500 kg capacity.

750B

Single hinged door, 750 kg capacity.

1000B

Single hinged door, 1000 kg capacity.

500EU

Double hinged door, 500 kg capacity.

750EU

Double hinged door, 750 kg capacity.

1000EU

Double hinged door, 1000 kg capacity.

750S

Single hinged door, 750 kg capacity.

1000S

Single hinged door, 1000 kg capacity.

750XDS

Double hinged door, 750 kg capacity.

1000D

Double hinged door, 1000 kg capacity.

1000DS

Double hinged door, 1000 kg capacity.

1400D

Double hinged door, 1400 kg capacity.

1400DS

Double hinged door, 1400 kg capacity.

Configuration

As drawing

Insert details.

Accessories

None

Chequer plate ramp

Intercom system positioned at each landing entrance

Non fire rated motor room cabinet in RAL 7038

Non fire rated sheet shaft cladding in RAL 7038

Standard product features

Size (w x d x h):

- Car:

  • 500B, 750B and 1000B: 1060 x 1230 x 2000 mm (1010 mm door width).
  • 500EU, 750EU, and 1000EU: 1360 x 1230 x 2000 mm (1305 mm door width).
  • 750S and 1000S: 1060 x 1730 x 2000 mm (1010 mm door width).
  • 1000D and 1500D: 1460 x 1430 x 2000 mm (1410 mm door width).
  • 1000DS and 1500DS: 1460 x 1730 x 2000 mm (1410 mm door width).
  • 750XDS: 1460 x 2130 x 2000 mm (1410 mm door width).

Car depth: With a through car entrance arrangement, the inside car depth reduces by 25 mm nominal.

- Entrance:

  • 500B, 750B, 1000B, 750S and 1000S: 1010 x 2000 mm.
  • 500EU, 750EU, and 1000EU: 1310 x 2000 mm.
  • 750XDS, 1000D, 1400D, 1000DS and 1400DS: 1410 x 2000 mm.

Door clear height:

2000 mm.

Finish:

Car interior: Manufactured from mild steel sheeting, finished in tough grey backed enamel (RAL 7038) with heavy-duty vinyl covered floor. Ceiling incorporates twin 18 W fluorescent tube lighting and an electrically interlocked maintenance access hatch.

Speed:

0.13 m/s.

Travel:

Up to five stops over a total distance of 15 m.

Controls:

Fully automatic push button control with call and despatch facilities at each landing entrance.

- Indicators:

'Lift arrival', 'lift occupied' and 'lift position' indicators and audible lift arrival buzzers are fitted at each floor.

Drive unit:

The 3 kW motor drives a high quality reduction gearbox fitted with 2:1 traction roping (3:1 on 1400 kg models). Efficient and quiet in operation, mounted on a bedplate fixed to the lift' structure (external to the shaft) which can be positioned on either side of an entrance at any floor.

Power supply:

A 415 V three phase supply is required with isolator adjacent to the lift motor.

Car entrance protection:

Full height infrared detector (light curtain).

Pit:

150 mm. Ramp optional.

Headroom:

3000 mm (3200 mm for 1400 kg).

Product Options

Configuration:

Single entrance or opposite through-car variations are available, consult manufacturer for details.
