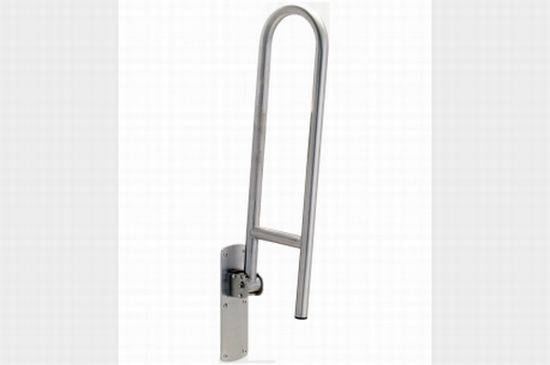

Stainless steel swing-up grab bar.
32 mm (1¼") diameter, grade 1.4301 (304) stainless steel swing-up grab bar. Exposed surfaces have a satin finish.
Tubing: Grade 1.4301 (304), stainless steel, assembled into a swivel hinge. Exposed surfaces polished to a satin finish and knurled grip. Detent holds bar in vertical position
Back plate: 4.5 mm-thick, one-piece stainless steel construction
Mounting: Unit must be secured to in-wall reinforcement backing. Unit is attached with four bolts with a 6 mm (minimum) diameter. Mounting bolts and screws not furnished
N13/436 Handrails and grab bars
125-Swing-Up Grab Bar
Standard product features
Dimensions (w x h):
100 x 300 mm. 760 mm projection in down position.
Tested to withstand 227 kg (500 lbs) downward pull.
