11105/ 11109/ 10109/ Recessed GU10 Spots - Adjustable or Fixed Luminaires
Verified by manufacturer 12 days ago

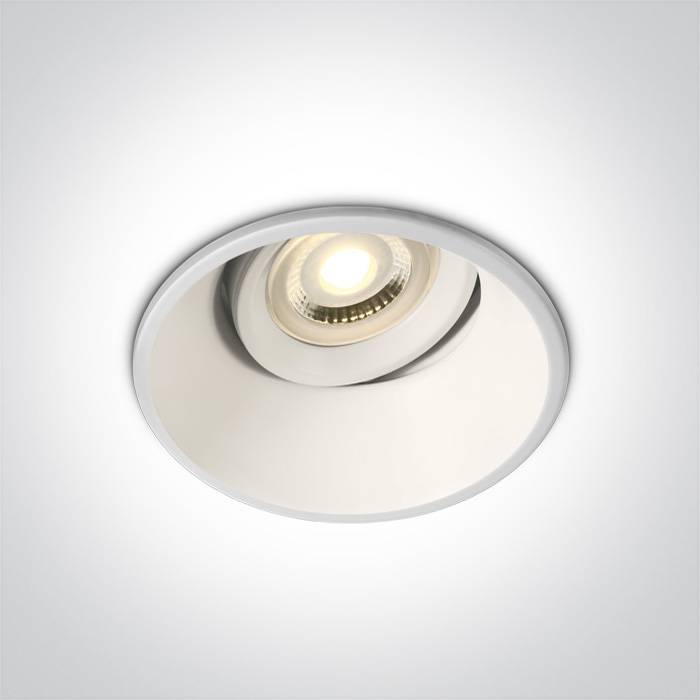

11105F/W Recessed adjustable trimless fire rated Dark light spot with GU10 lampholder
11105F/W Recessed adjustable trimless fire rated Dark light spot with GU10 lampholder
Recessed fixed or adjustable round GU10 downlights, with trimless, fire-rated and dark light options.
Application
Recessed ceiling luminaire, indoor use (10109F/W also suitable for outdoor use).
Description
Recessed fixed or adjustable round GU10 downlights, with trimless, fire-rated and dark light options.
Features and benefits:
- Complies with EN 60598-1 and any other specific standards.
- 11105F/W: Recessed adjustable trimless fire-rated dark light MR16 spot with GU10 lamp holder.
- 11109FA/W: Recessed adjustable fire-rated dark light MR16 spot with GU10 lamp holder.

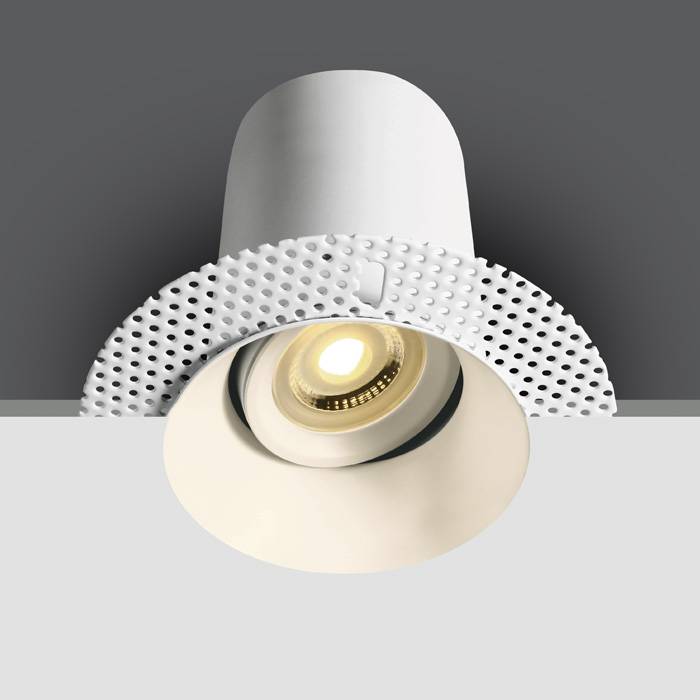

- 11105UTR/W: Recessed trimless adjustable MR16 spot with GU10 lamp holder.
- 10109F/W: Recessed dark light fire-rated MR16 spot with GU10 lamp holder.
General information
Color | White |
Material | Metal |
Shape | Circle |
Length | 85 mm Guidance for specification option: 11105F/W, visible maximum diameter. Overall diameter: 125 mm. 10109F/W: Visible maximum diameter only. 92 mm Guidance for specification option: 11109FA/W, visible maximum diameter. 90 mm Guidance for specification option: 11105UTR/W, visible maximum diameter. Overall diameter: 150 mm. |
Width | 85 mm Guidance for specification option: 11105F/W, visible maximum diameter. Overall diameter: 125 mm. 10109F/W: Visible maximum diameter only. 92 mm Guidance for specification option: 11109FA/W, visible maximum diameter. 90 mm Guidance for specification option: 11105UTR/W, visible maximum diameter. Overall diameter: 150 mm. |
Height | 126 mm Guidance for specification option: 11105F/W. 117 mm Guidance for specification option: 11109FA/W. 40 mm Guidance for specification option: 11105UTR/W. 124 mm Guidance for specification option: 10109F/W. |
Warranty description | Five year |
Uniclass | |
CAWS | V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Recessed luminaires
Standards | To EN 60598-1.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | Recessed adjustable trimless fire-rated dark light MR16 spot with GU10 lamp holder.Guidance for specification option: Requires 85 mm-diameter cut-out hole and 170 mm depth. |
Classification | |
Ingress protection (minimum) | IP20. |
Circumstances of use | Normal. |
Nominal voltage | 100–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
Non-LED luminaires | |
Number of lamps | 1. |
Lamp properties | |
Wattage | 10 W. |
Beam angle | Dark light, adjustable.Guidance for specification option: Adjustable in one direction; consult manufacturer for details. |
