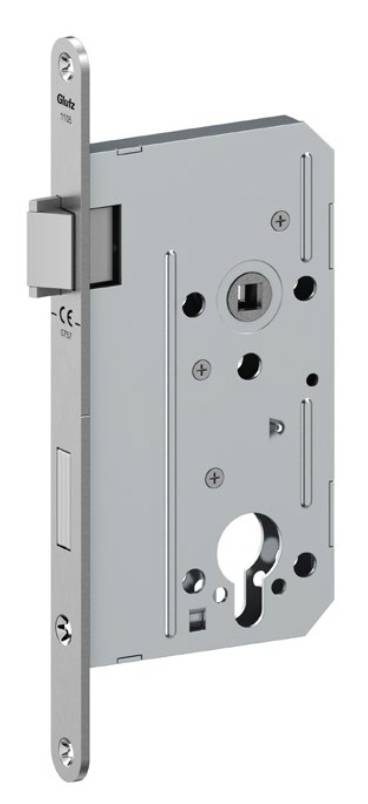

1105 Mortice Lock
Verified by manufacturer 3 months ago
Heavy-duty mortice lock with steel latch.
Application
For commercial and public buildings, schools, hospitals.
Description
Heavy-duty mortice lock with steel latch.
Features and benefits:
- BB/WC.
- With latch withdrawal: profile or round cylinder.
- Distance 78 mm.
- Backset 60 mm.
- Clamp follower 8 mm.
- Forend 18 x 230 mm. WC follower 7 mm.
- Satin stainless steel forend radiussed.
- Forend radiussed or rectangular.
- Lock case blue galvanized.
- Steel latch.
- Latch damper.
- Single throw steel deadbolt, 13 mm.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Length | 230 mm |
Height | 18 mm 20 mm |
Uniclass | |
CAWS | P21/24 Door locks P21/515 Door locks |
Specification data - Door latches
Standard | To EN 12209. |
Latch or lock type | Mortice lock. |
Backset | 60 mm.70 mm.80 mm. |
Material and finish | Matt stainless steel faceplate.Guidance for specification option: Other finishes on request. |
Cut-outs | BB. RZW. PZW. WC 7 mm. |
Locks with follower | 8 mm. Guidance for specification option: Standard. 9 mm. |
Forend | Radiussed, 18 mm. Rectangular, 18 mm. Radiussed, 20 mm. Rectangular, 20 mm. |
Options | None. PRIM system. |
