Knauf AMF Thermatex Acoustic Hygena

Third party certifications:

QA Certificate
Certificate type

High quality tile with special antibacterial treatment.

Jump to:

+44 (0)191 518 8600 https://www.knaufceilingsolutions.com/en/

Application

For use with the following Knauf AMF suspended ceiling systems: System A: Concealed system, System C: Exposed Ventatec grid system, demountable ceiling, System F: Free span system, with exposed Ventatec grid system or concealed suspension and System I: Bandraster system, with concealed cross sections. Can be used with A-RWL, I-RWL, C-SRW shadow angles and I-SRW perimeter trims.

Description

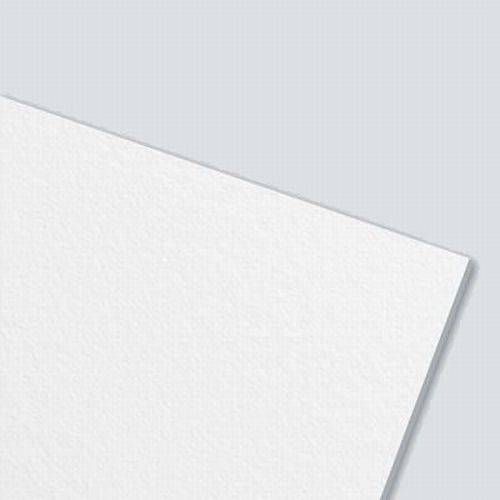

High quality tile with antibacterial treatment. A visible, white acoustic fleece creates a smooth elegant surface.

Features and benefits:

The fleece offers a smooth surface finish.
Designed for use with Knauf AMF suspended ceiling system C.
Perforations provide sound absorption.

General information

Color	White Similar to RAL 9010.
Finish	Smooth
Material	Mineral wool Mineral ceiling tile, manufactured from a specially perforated mineral board with an acoustic fleece facing.
Shape	Square
Length	600 mm
Width	600 mm
Height	19 mm
WarrantyDescription	15 year Material. 30 year System.

Uniclass	Pr_35_93_13_53 Mineral fibre infill unitsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system

Specification data - Mineral fibre infill units Enhanced data

Unit type	High quality non-directional fissured face ceiling tile. Exposed Ventatec grid system. Other sizes and edge details are available for special order.
VOC emissions	0%.
Recycled content	48.54.
Unit size	-
Face dimensions	600 x 600 mm.
Thickness	15 mm.
Surface texture	Non-directional fissured face.
Colour	White. Similar to RAL 9010.
Edge profile	Square. Rebated.

Perimeter trim	Not required. A-RWL. 24 x 24 mm angle. I-RWL. 31 x 31 mm angle. C-SRW shadow angle. 20 x 20 x 20 x 20 mm, 25 x 15 x 8 x 15 mm. I-SRW. 25 x 15 x 10 x 15 mm shadow angle.
Fire safety	Complies with BS EN 13501-1: Class A2-s1, d0.
RelativeHumidity	95%. Maximum.
Fire protection	To BS 476-20 to -23 (maximum): 60 minutes.
Sound absorption	To BS EN ISO 354: αw 0.75 as per EN ISO 11654. Sound absorption: Class C. Noise reduction coefficient (NRC) to ASTM C 423 0.60.
Sound attenuation	Rating to EN ISO 10848 Dn,f,w: 38 dB.
Weight	4.5 kg/m².
Anti-microbial treatment surface finish (Hygena)	Required. Not required.
