NBS Source
Surestep Laguna

Application

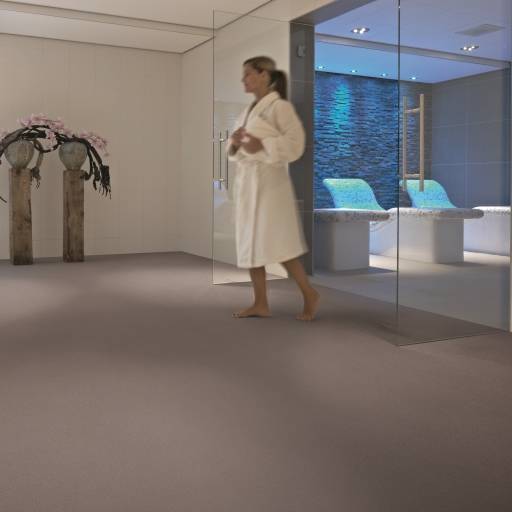

Laguna is designed for areas where both shod (footwear) and barefoot slip resistance are required, such as changing rooms and circulation areas. Non-reflective decoration also makes it ideal for use in dementia applications.

Description

Combining barefoot and footwear slip resistance, Surestep Laguna is suitable for use in transition areas such as changing rooms and circulation areas. 12 colours in the collection.


Features and benefits:

  • Safety vinyl collection with a fine, structured surface available in neutral and pastel colours with slip resistant particles.
  • Subtle, soil-hiding design.
  • Enhanced environmental performance.
  • Meets the highest possible REACH compliance standards for chemical content.
  • Micro-embossing technology reduces the need for chemical cleaning and increases the floor's lifespan.
  • Phthalate-free.
  • Can be used in conjunction with Onyx+and wet room accessories to create a complete floor-to-wall wet room solution.


Optional fabricated underlay:

  • Forbo Corkment Underlay.
  • Forbo QuickFit Subfloor System.
  • Forbo Sarlibase T.E. Underlay.
  • Forbo Vinylbase acoustic underlay.


Adhesive:

- Eurocol 140 Euromix PU Pro:

Polyurethane resin and hardener, water-resistant, two-component PU adhesive.

- Eurocol 233 Eurosol Contact: Eurocol 233 Eurosol Contact:

Synthetic rubber in solvent, fast-setting contact adhesive.

- Eurocol 640 Eurostar Special:

Superior acrylic dispersion, low VOC-emitting adhesive with a high initial grab.

General information

Shape

Rectangle

Color

Blue

Green

Grey

Pink

Yellow

Finish

Slip resistant

PUR pearl surface finish.

Material

PVC

Heterogeneous .

WarrantyDescription

Ten year

Uniclass

Pr_35_57_71_60 Particle-based enhanced wet area polyvinyl chloride (PVC) sheetsPrimary

CAWS

M50/150 Sheeting

M50/20 Sheeting

Specification data - Particle-based enhanced wet area polyvinyl chloride (PVC) sheets Enhanced data

Standard

Heterogeneous PVC to BS EN ISO 10582 and BS EN 13845 & 14041.

Use class

Class 34 Commercial very heavy, Class 43 light industrial.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

DIN 51130, R10; BS EN 13893, DS ≥0.30.; PTV Wet slider 96: ≥36

Surface roughness (Rz) (minimum)

≥20.

Recycled content

20%.

Width

2000 mm.

Thickness

Total: 2.0 mm; Wear layer: 0.7 mm

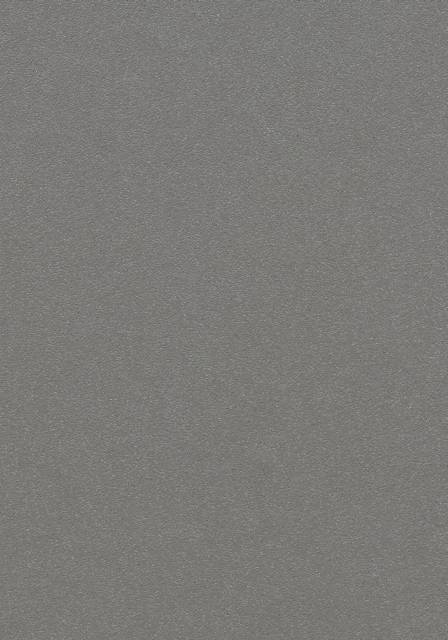

Colour and pattern

181262 trout.

181092 elephant.

181072 pewter.

181482 greige.

181592 lava.

181632 coal.

181692 mouse.

181802 lemon.

181822 lagoon.

181862 silver grey.

181882 emerald.

181912 flamingo.

181922 concrete.

181972 magenta.

181982 aquamarine.

Weight (to EN-ISO 23997)

2.75 kg/m².

Dimension stability (to EN-ISO 23999)

<0.1%.

Castor chair continuous use (to EN 425)

No effect.

Use in wet areas (to EN 13553)

Yes.

Electrical resistance (to EN 1081 R1)

>1 x 10^9 Ω.

Reaction to fire (to BS EN 13501)

Bfl-s1.

Body voltage (to BS EN 1815)

<2 kV.

Thermal conductivity (to BS EN 12524)

0.25 W/m·K.

Residual indentation (to EN-ISO 24343-1)

≤0.05 mm.

(to DIN 51097)

Class B

Adhesive

Not required.

Eurocol 140 Euromix PU Pro.

Eurocol 233 Eurosol Contact.

Eurocol 640 Eurostar Special.

Fabricated underlay

Not required.

Forbo Corkment underlay.

Forbo Quickfit subfloor system.

Forbo Vinylbase acoustic underlay.

Forbo Sarlibase T.E. underlay.

(to EN 13845 Annex C)

ESb/ESf (to EN 13845 Annex D 50,000 revolutions <10% loss. Pass.

Lightfastness (to ISO 105-B02)

≥6.

Finish:

PUR pearl surface finish.

Flexibility (to BS EN ISO 24344)

ø 10 mm.

Resistance to chemicals (to EN ISO 26987)

Very good.

Environmental information

Contains Red List materials

Yes

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Embodied carbon

13.6 kg CO2 eq per m²

Recyclability

100%

Recycled content

20 %

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

1.3
Download now from NBS National BIM Library

Literature

Forbo Product Portfolio 2022

Forbo Product Portfolio 2022

Forbo Step LRV and DSDC Accreditation Overview

Forbo Step LRV and DSDC Accreditation Overview
