“At our very core, we are driven by a diverse team of waterproofing professionals that are dedicated to innovation and are passionate about creating integrated, maintainable, and robust solutions”.
At Delta Membrane Systems Limited we provide specialist structural waterproofing solutions, covering Types A, B and C waterproofing, combination waterproofing, damp proofing, flood resilience and ground gas protection.
With over 125 years of manufacturing experience, Delta is an impeccable partner on every project. Our skills have been mastered through understanding, a Delta System offers complete protection to structures from ground water ingress and contaminates. Our products comply with British Standards 8102:2022, 85500:2015 and 8485:2015+A1:2019, Broof(t4) and are BBA Certified.
Delivering world-class solutions, Delta’s trusted Technical Team of experts will help solve the most difficult of waterproofing problems. Our first-hand approach and knowledge are what sets us apart.
Delta provides a full range of solutions for architects, specifiers, designers, developers, civil engineers, contractors, and homeowners. Our projects range from: commercial/residential developments, new-build and refurbishment, civil infrastructure projects, retail units and warehouses, leisure facilities, archives/libraries/vaults, hospitals, schools, underground rail stations and tunnelling, underground car parking areas, listed buildings, heritage buildings, ICF (insulated formwork construction) and basements.
Our nationwide network of Delta Registered Installers offers a fully guaranteed installation service.
Delta Services:
· Manufacturer and supplier of quality construction products
· Waterproofing design specialists
· Remedial and retrofit design
· Custom solutions
· Qualified technical team
· Detailed drawings including CAD
· Specifications
· Training and guidance
· On-site assistance
· Troubleshooting solutions
· Monitored Installations – Contractor/Delta
· Ongoing system monitoring of Type C Systems
Waterproofing Design Service
A Waterproofing Design Specialist provides expertise in structural waterproofing.
A Waterproofing Design Specialist should be appointed as part of the design team at the planning stage or as early as possible so that an integrated waterproofing solution is created. All decision made by others that might have impact on the waterproofing deign should be brought to the attention of the Waterproofing Specialist, Design Team, and Installing Contractors. Final decisions and any recommendations should be approved by those taking overall responsibility for the design of the waterproofing.
Identifying a Waterproofing Design Specialist can be difficult and daunting, Delta has their own in-house Technical Team who are able to offer Waterproofing Design Services. Our Waterproofing Design Consultants have:
· Suitable qualifications and experience in Structural Waterproofing
· Be able to list the principal considerations for a robust waterproofing design
· Offer knowledge on waterproofing systems available
· An in-depth understanding of BS 8102:2022 and its requirements
· Be able to assess risk and reducing risk in suitable waterproofing designs
· Desk top study & risk assessment knowledge – these should form part of any Designers Report and Waterproofing Design
· An understanding of sources of water (such as how it flows through the soil and interacts with the structures)
· Have knowledge on all Types of waterproofing systems, their suitability to the project/an understanding of limitations on drainage options
· Structural knowledge
· Knowledge of Ground Gases
· Geotechnical knowledge (to be able to understand the implications of a soil report)
· The ability to produce a Design Report, Method Statements and Waterproof Design drawings
· The ability to provide guidance that assists with and influences future maintenance of the waterproofed structure.
Maintainable Designs
Delta’s Waterproofing Systems should be designed and installed as a maintainable water management system. This is highlighted as a key requirement in BS 8102:2022, all components of the system should be accessible for both inspection and maintenance.
Guarantees
Delta Membrane Systems Limited offer a 30-year Product Guarantee on membranes, seals, and fixings when a Delta Registered Installer has installed a Delta, Type C Cavity Drainage System.
Delta MS 500 Fire Retardant, Type C Waterproofing
Delta’s new innovative fire-retardant MS 500 membrane gives a unique opportunity to the structural waterproofing sector for Type C systems to be used in reducing the spread of fire or where installation has not previously been possible for fire safety reasons.
Delta’s new fire-retardant Type C Cavity Drainage System provides architectural freedom and allows systems to be used in not only deep basements but where national Building Regulations Euroclass B or C are required, meeting building requirements of today, but also that of tomorrow.
Delta MS 500 Fire offers a B-S2, d0 Euroclass fire rating (EN 13501-1:2018) whilst maintaining its strength, durability, functionality and workability.
The first and most important element of a Type C membrane is keeping structures dry. Water ingress will potentially result in a corrosive environment, with structures having a reduced life service. Delta MS 500 Fire Retardant has been manufactured using DELTASAFE, compared to the traditional MS 500 membranes.

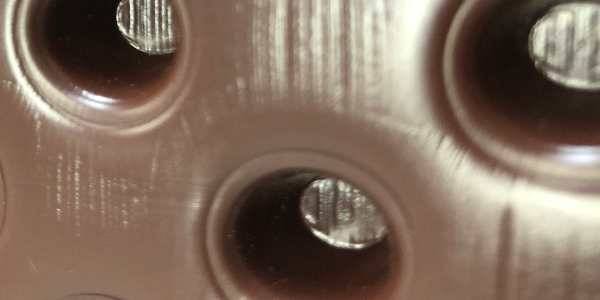

In terms of appearance, Delta MS 500 Fire Retardant has the same physical properties to MS 500, a membrane designed from High-Density Polyethylene with 8mm stud.
Flood Testing/Integrity Testing
The integrity of the waterproofing system should be checked and inspected on installation and immediately upon completion. If there is a delay before final handover or the laying of permanent coverings, a second test is strongly recommended. Test objectives should be decided upon prior to the method of testing.
Responsible manufacturing
Responsible manufacturing goes beyond traditional notions of green or sustainability.
As a responsible business, Delta provides waterproofing solutions that focus beyond environmental sustainability, we apply our principles to high-quality solutions. With targeted quality and safety measures at all levels - every day.
Achieving sustainability in manufacturing requires a comprehensive view spanning not just the product and the manufacturing processes, but also the entire supply chain, including product lifespan.
Delta provides life-cycle oriented designs, addressing life-cycle concepts and methods, deterioration and damage evaluation, life-cycle performance indicators, inspection and maintenance procedures all implemented to work in harmony.
BS 8201:2022
BS8102:2022 categorises structural waterproofing into three Types, these are: A, B & C.
Type A
Type A is defined as ‘barrier protection’. A material is used to offer a barrier to the passage of water. The barrier protection physically repressing water ingress on either the positive side of a below ground level structure (externally), the negative sides (internally) or sandwiched into the construction. Cementitious coatings, bituminous coatings, flexible sheet membranes, fully bonded membranes are all categorised within Type A ‘barrier protection’.
Type B
Type B is defined as ‘structurally integral protection’. Type B protection relies on the structure itself being constructed with concrete containing a water-resistant admixture. Structures providing Type B protection should be constructed from reinforced concrete or structured steel and designed in accordance with BS EN 1992 and BS EN 1993 respectively.
Type C
Type C is defined as “drained protection”. BS 8102:2022 defines Type C, as a waterproof protection system that manages water that penetrates the external shell of a structure, by collecting this water in a cavity formed between the external wall and an internal lining/wall. There is a reliance of the Type C system to discharging any water which has percolated the structure via gravity drainage or a mechanical drainage system.
Grades of Waterproofing
Grades of waterproofing refer to water-tightness of the Type of waterproofing and desired robustness of the design at completion.
Grade 1 - Seepage and damp areas from internal and external sources are tolerable, where this does not impact on the proposed use of below ground structure. Internal drainage might be necessary to deal with seepage.
Grade 1b - No Seepage. Damp areas from internal and external sources are tolerable.
Grade 2 - No seepage is acceptable. Damp areas as a result of internal air moisture/condensation are tolerable; measures might be required to manage water vapour/condensation.
Grade 3 - No water ingress or damp areas(c) is acceptable. Ventilation, dehumidification, or air conditioning necessary; appropriate to the intended use.
