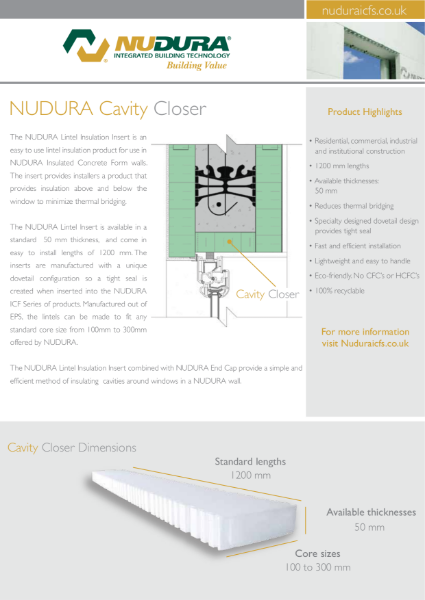

The NUDURA Lintel Insulation Insert is an
easy to use lintel insulation product for use in
NUDURA Insulated Concrete Form walls.
The insert provides installers a product that
provides insulation above and below the
window to minimize thermal bridging.
The NUDURA Lintel Insert is available in a
standard 50 mm thickness, and come in
easy to install lengths of 1200 mm. The
inserts are manufactured with a unique
dovetail configuration so a tight seal is
created when inserted into the NUDURA
ICF Series of products. Manufactured out of
EPS, the lintels can be made to fit any
standard core size from 100mm to 300mm
offered by NUDURA.
