Technical drawing
1000kg MWL Guarded BayLift Technical Data Sheet

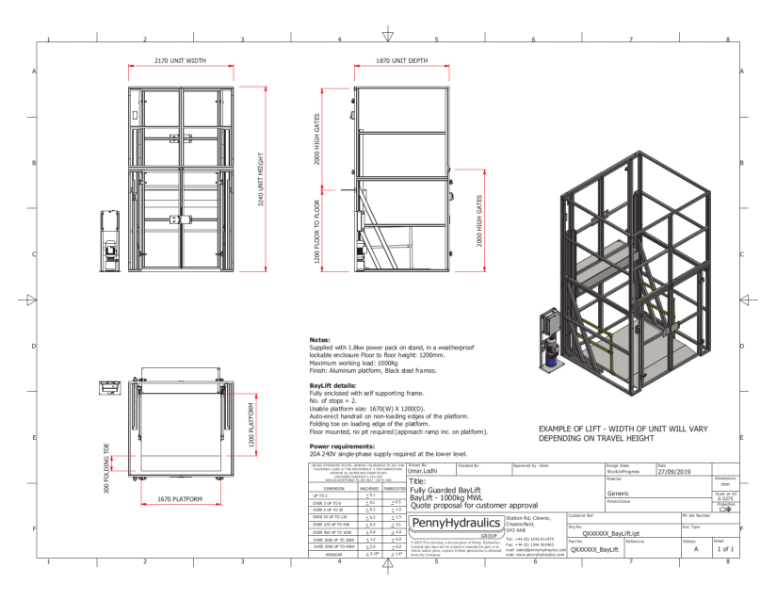

Layout sketch for 1000kg maximum working load BayLift, standard platform size to suit travel height up to 1200mm. Bespoke arrangements are available for platform size up to 2400m x 1500mm and travel height up to 1500mm
No related products in this Technical drawing
Contact Penny Hydraulics Ltd by clicking the button below to find out which products were used in this Technical drawing.
