Suitable for large capacity boilers

Suitable for large capacity boilers

Suitable for large capacity boilers

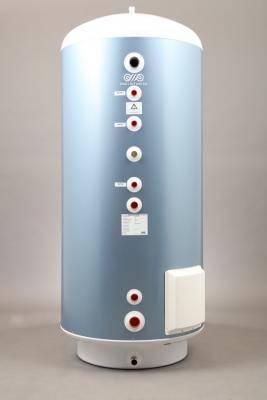

Maxi Coil is constructed with Everlast™ high-alloy stainless steel in combination with Ultraweld™ technology for optimal corrosion resistance.

Features and benefits:

• Maxi Coil is supplied as standard with a smooth piped, scale-resistant heating coil with a capacity of up to 30 kW from the boiler. The electric immersion heaters have optional effect 5–15 kW, 230–400 V + N three-phase, and is thermostat controlled 60–90°C in three steps with separate safety thermostats.
• High-grade Nanopur™ (MC 400) or Isoflex + vacuum insulated panel (VIP) (MC 600 and (MC 1000) insulation.
• Highly efficient domestic hot water production from heat pump up to 40 kW.
• Extreme operational safety with electric heater as booster/ back-up.
• 10 bar design pressure and high corrosion resistance.
• High durability in hard water.
• Solar/ hot water connection.
• Domestic hot water from alternative energy.
• Components:
• Immersion thermostat - Adjustable 60–90°C, pre-set at 75°C.
• Safety valve - Temperature and pressure relief valve, 9 bar / 99°C, ¾" to drain.
• Flow/ return connection - 2 x 1½" female BSP threads.
• Coil connection - 2 x 1" female BSP threads.
• Other connections - 4 x ¾" female BSP threads.
